W 170 - 8 Ohm

Thumbnail Filmstrip of W 170 - 8 Ohm Images

    Purchase W 170 - 8 Ohm

    SKU: V-9063-W170 W 170 - 8 Ohm

    $46.00 each
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Driver - W 170 - 8 Ohm HiFi Woofer
    Art. No. 9063

    Visaton W170 - 8 Ohm HiFi Woofer
    Visaton W170 - 8 Ohm - HiFi Woofer



    Characteristics and Sound Properties
    17 cm (6.5") HiFi woofer with very good price/performance ratio. Suitable for simple 2-way speakers and car rear tray systems. Especially suited als replacement driver for many HiFi speakers.



    Technical Specifications

    Rated power 40 W
    Maximum power 70 W
    Nominal impedance Z 8 Ohm
    Frequency response
    (fu: Lower cut-off frequency depending on cabinet)
    fu-6000 Hz
    Mean sound pressure level 87 dB (1W/1m)
    Dispersion angle (-6 dB) 54°/4000 Hz
    Excursion limit ± 7.5 mm
    Resonance frequency fs 57 Hz
    Magnetic induction 1.0 T
    Magnetic flux 240 µWb
    Height of front pole-plate 3 mm
    Voice coil diameter 25 mm
    Height of winding 7 mm
    Cutout diameter 146 mm
    Net weight 0.77 kg
    DC resistance Rdc 7.2 Ohm
    Mechanical Q factor Qms 2.92
    Electrical Q factor Qes 0.90
    Total Q factor Qts 0.69
    Equivalent volume Vas 24 litres
    Effective piston area Sd 137 cm2
    Dynamically moved mass Mms 8.7 grams
    Force factor Bxl 5.0 Tm
    Inductance of the voice coil L 0.9 mH
    Connections 4.8 x 0.8 mm (+)
    2.8 x 0.8 mm (−)

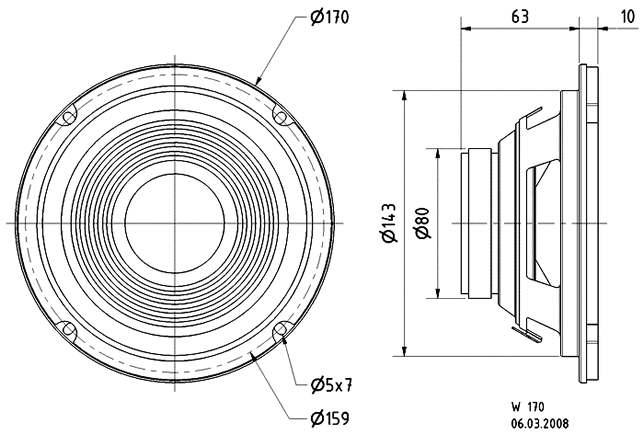

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

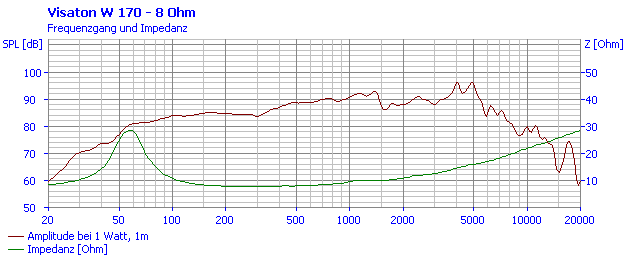

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph

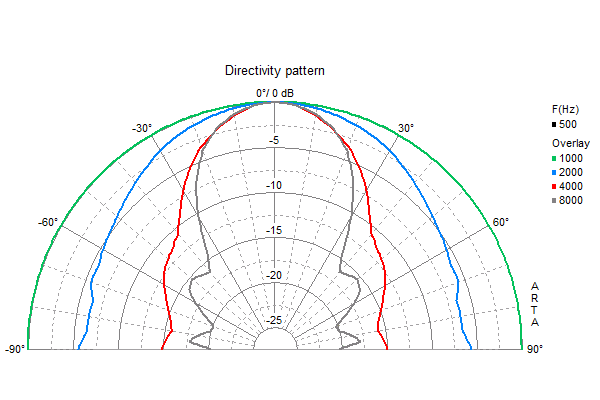

    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
