Amplified AM FM Window Antenna WPA-2

Amplified Electronic AM / FM Window Aerial - Model RetroSound WPA2

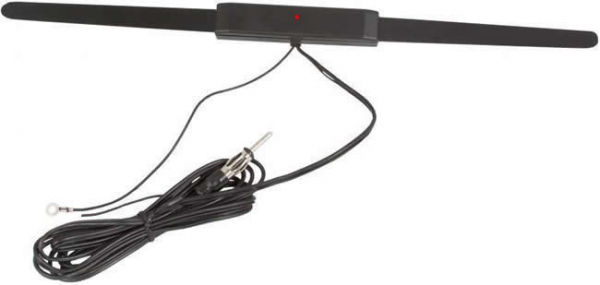

The RetroSound WPA2 is an enhanced, amplified AM / FM hide-away window aerial designed to deliver outstanding reception without compromising the exterior styling of your vehicle. Upgraded from the previous WPA1 model, it is a perfect solution for classic cars, vintage restorations, hot-rods, custom trucks, and show vehicles where a conventional exterior aerial is either impossible to fit or aesthetically undesirable.

Why Choose the RetroSound WPA2 Over a Standard Aerial?

• Preserves Vehicle Bodywork: Eliminates the need to drill holes into pristine exterior panels, protecting your vehicle from potential water leaks and rust spots.
• Damage and Vandal-Proof: Because it safely mounts inside the cabin, you completely avoid the risk of bent masts, snapped aerials from car washes, and vandalism.
• Maintains Clean Lines: Keeps the smooth, original silhouette of your classic car intact without a modern metal whip breaking up the design.

Important Warning for Original Vintage Radios

This is an active, amplified aerial specifically tailored for modern digital (DSP) tuners, such as new RetroSound units or modern aftermarket radios that are designed for boosted signals. We do not recommend using this amplified aerial with original 1960s or 1970s factory analogue radios. The high-gain amplifier can easily overpower a sensitive vintage tuner, causing RF overload and cross-modulation distortion (which results in muffled or non-existent audio). Furthermore, active electronics can inject high-frequency electrical switching noise directly into older electrical systems. If you are using a completely original vintage radio, a passive dipole aerial is strongly recommended instead.

Installation Details and Specifications

The WPA2 installs in seconds using a standard aerial plug and your radio's power aerial wire. This aerial uses magnetic field circuitry for enhanced radio reception. It can be installed almost anywhere thanks to the supplied 105-inch (approx. 266 cm) aerial lead and power wire.

• Place the main body of the WPA2 as high in the dash as possible or, using the adhesive backing, secure it to the upper windscreen or rear glass. Avoid placing it near any high-current wiring. If you want to test it first, use tape before sticking it permanently.
• Glass installation: Clean the mounting area with an alcohol wipe. Using a lint-free rag, clean any residue off the window. Peel the backing off the adhesive strip and press firmly to the glass surface. Be careful not to press too hard on windscreen applications.
• Route the aerial cable with the thin black power wire to your radio location. Connect the thin black wire to a 12-volt ignition source or the blue power aerial output wire of your radio.
• Connect the male aerial plug into the female aerial receptacle of your radio. Some radios may need an adaptor (not needed for RetroRadios).
