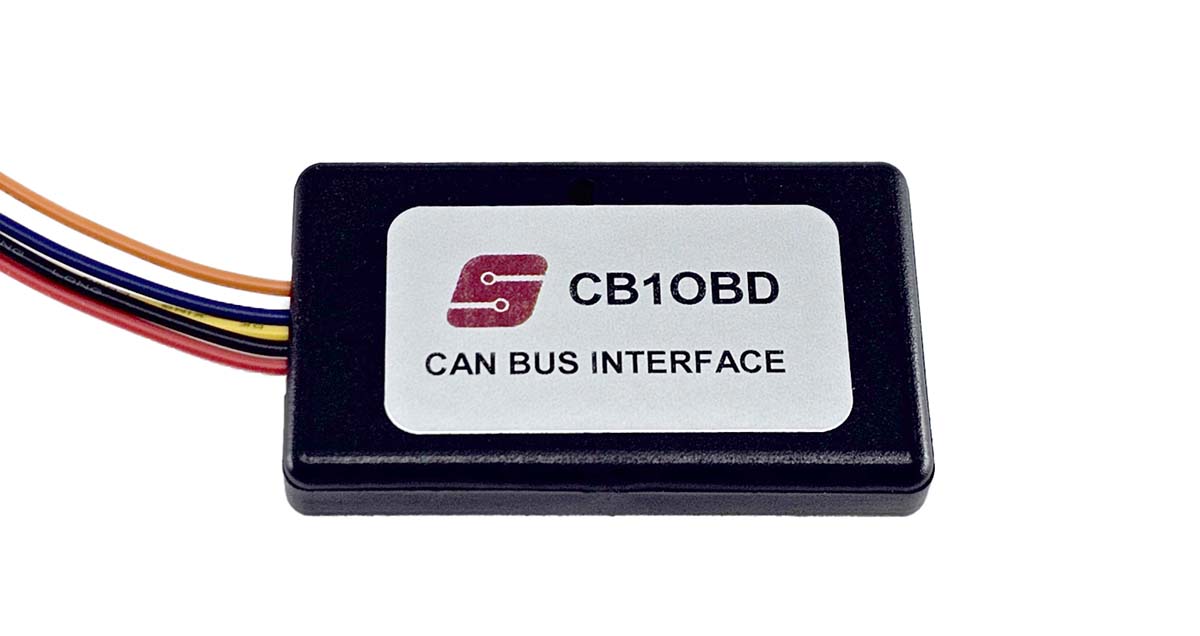

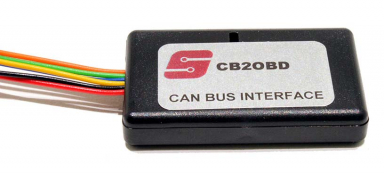

CANBUS CB1OBD Speed OBDII Interface

Thumbnail Filmstrip of CANBUS CB1OBD Speed OBDII Interface Images

    Purchase CANBUS CB1OBD Speed OBDII Interface

    SKU: CANBUS-CB1OBD CANBUS CB1OBD Speed OBDII Interface

    $165.00 each
    Shipping Weight: 0.10 kg
    Quantity in Basket:  None



    Type:




    Most of the new vehicles around today utilise CANBUS (also known as CAN; CAN-BUS; CAN BUS; C-BUS) to transmit the specific data and conditions between devices and these signals are available via the CANBUS interface on the OBDII connector. The OBDII is the vehicle's "On-Board Diagnostics" connector and is fitted to most cars these days. If your vehicles has this connector and is newer than 2008, this interface should work, in fact many vehicles before 2008 will work as well, though we cannot guarantee that 100%. The model CB1 should cover most other vehicles if the CB1OBD doesn't work. Navigation units or other devices (telematics, trip recorders, taxi meters, data logging, tracking) need a speed signal to operate, they use this to determine speed and distance to ensure accuracy.

    This CANBUS signal translator is designed to provide a vehicle speed signal pulse only, model CB1OBD. Simply wire it up and go, no programming required!

    Despite the low cost, this CAN BUS interface features built-in diagnostic LEDs to indicate CAN BUS status to aid the installation process. Instructions are included.

    Example Applications:

    • Navigation Systems
    • Taximeters
    • Cruise Control
    • Car Audio
    • Fleet Management
    • Parking Sensors
    • Telematics
    • Speed Limiters
    • and more...

    Installation:

    The CANBUS uses two wires for data transmission. One is called CAN HIGH and the other is called CAN LOW (sometimes marked as "CAN+" and "CAN-" respectively). The CANBUS connections on the CANBUS interface should be connected to the appropriate CANBUS connections with an insulated solder joint. Do not cut the CANBUS wires.

    IMPORTANT NOTICE: All connections are for guidance only. Vehicle manufacturers can vary wiring from model to model. It is advisable to check the vehicle wiring diagram.

    CANBUS Speed Interface Connections
    Colour I/O Description
    Black I Ground
    Red I Power +12V regulated ignition controlled supply via 1A fuse
    Yellow I CAN High
    Blue I CAN Low
    Orange O Speed pulse output (VSS)
    1. CAN HIGH and CAN LOW connections are picked up from the OBDII connector, this is usually located under the dash or under the carpet.
    2. Locate OBD II connector: Pin 14 CAN Low, Pin 6 CAN High.
    3. Power can also be obtained from most OBDII connectors but be aware these devices will draw a low amount of power all the time, so it is recommended that a fused ignition supply is located for the power.

    Specifications:

    • Frequency output approximately: 0.62 Hz per every 1 kph (1 Hz per every 1 mph)
    • Frequency high frequency version approximately: 5 Hz per every 1 kph (8 Hz per every 1 mph)
    • Minimum speed approximately: 3 kph (1.7 mph), may depend on vehicle
    • Approximate pulses per km standard version: 2236 (per mile: 3600)
    • Approximate pulses per km high frequency version: 17888 (per mile: 28800)
    • Supply voltage: 12V (from ignition or switched line)
    • Low-current standby mode: 30mA
    • Size: 9 mm x 31 mm x 53 mm (0.35" x 1.22" x 2.08")
    • Warranty: 12 months
