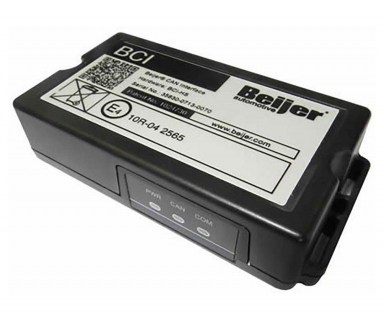

SKU: Beijer-BCI2NG-CANBUS Beijer CANBUS BCI-2 New Gen Speed and Power Interface

Beijer Automotive BCI-2NG Speed Signal Pulse Output and Vehicle Power On Output

Modern cars are increasingly equipped with CAN FD networks. CAN FD (Controller Area Network with Flexible Data-Rate) is a new automotive network that surpasses the classic CAN protocol. It offers faster and more efficient data processing and is essential for the complex electronic systems in many modern vehicles.

Beijer saw this development coming well ahead of time, and after years of research, development and testing, introduced the BCI Next Gen (BCI-NG). In addition to the classic CAN protocols, this new generation of CAN interfaces also supports CAN FD and is ready for the many challenges in the field of sustainability, security and reliability that the global automotive sector faces.

Vehicle List (Others may be possible, note outside link)

BCI Next Gen Features:

• Supports CAN FD in addition to the classic CAN protocols
• Improved functionality for remote CAN logging
• Can be used as a probe for remote CAN bus analysis
• USB-C connection

Outputs (Vehicle dependant):-

• Speed pulse
• Switched power supply (also may be called accessories / ignition depending on the car system)

Specifications (pin-outs vary depending on model):-

• Power Supply: 7.5V DC to 32V DC
• Maximum current consumption (unloaded): Normal mode: < 80mA ~ 12/24V
• Sleep mode: < 2.0 mA ~ 12V and < 1.5mA ~ 24V
• Outputs: all outputs are (temporarily) protected against short-circuit to power supply and ground.
• Digital Outputs (connector pins 11 and 12):
• Voltage range: VSupply from 7.5V to 32V
• Pull-down to ground
• Max. current: 500mA per output
• Thermal protection
• Frequency / Digital Output (connector pin 9 and 10):
  • 10V with pull-down to ground (BCI-2: V-supply with pull-down to ground)
  • Max. freq. 2 kHz
  • Max. current: 50mA/output
• Digital outputs (connector pin 7, 8, 15 and 16)
  • 10V with pull-down to ground
  • Max. current: 50 mA/output
• Note: pull down to ground is a digital low signal, not directly connected to ground / chassis.
• Temperature: Operating temperature: -40 °C / +85 °C
• Protection level: IP40
