30mm TS030TU01 Car Tweeter System Silk Dome 4 Ohm

Thumbnail Filmstrip of 30mm TS030TU01 Car Tweeter System Silk Dome 4 Ohm Images

    Purchase 30mm TS030TU01 Car Tweeter System Silk Dome 4 Ohm

    SKU: Wavecor-Tweeter-TS030TU01 30mm TS030TU01 Car Tweeter System Silk Dome 4 Ohm

    $145.00 per set of 2 - special order
    Brand: Wavecor
    Quantity in Basket:  None







    Wavecor

    The Wavecor TS030TU01 is a complete car tweeter set based on a high-quality 30mm Wavecor tweeter. It comes as two tweeters in one package complete with two different kinds of mounting and with wires. The tweeter is a high performance 30mm soft dome tweeter with high-stability ferro fluid in the air gap. The low resonance frequency and high power handling make this tweeter ideal for 2-way car speakers, where standard tweeters will not do. The usage of dual neodymium magnets as power house ensures high efficiency while still keeping size small. The low distortion and the smooth and extended frequency response combine extreme details and dynamics into making this tweeter the preferred choice for high-end car sound systems. The large heat sink and the ventilated angle house take care of keeping voice coil temperatures low - even at high power levels and under high ambient temperatures. Mounting parts in grey colour for easier matching with car interior. Ideal as upgrade for existing car audio systems.

    Features

    • Precision-coated textile diaphragm for improved consistency and high-frequency extension
    • Vented voice coil former for reduced distortion and compression
    • Copper-clad aluminium voice coil wire offering lower moving mass for improved efficiency and transient response
    • Build-in cavities under dome/edge to equalise pressure for lower distortion and lower resonance frequency
    • Rear heat sink for increased power handling and reduced power compression
    • Dual neodymium magnets for improved efficiency and improved magnetic shielding for A/V applications
    • High-stability ferro fluid for increased heat transfer from the voice coil
    • Flexible lead wires for higher power handling and larger excursion
    • Black anodised magnet structure for increased power handling and reduced power compression
    • Gold plated terminals to prevent oxidation for long-term reliable connection
    • Delivered with EVA gasket attached for hassle-free mounting and secure cabinet sealing
    • Ventilated angle mount house to ensure free air flow for high power handling

    Package Content

    • 2 pcs 30mm dome tweeters Wavecor TW030WA04 with grille attached
    • 2 pcs tweeter angle mounts
    • 2 pcs tweeter flush mounts
    • 2 pcs 1.5m dual connection wires
    • 4 pcs self-tapping screws
    • 2 pcs double sided tape for tweeter angel mount
    • 1 pc. drilling/cutting template
    30mm car tweeter
    Angle-mount
    Flush-mount

    Specifications

    • Power Handling (continuous): 35 W
    • Frequency Range: 2000-25000 Hz
    • Resonance Frequency fs: 1075 Hz
    • Impedance R: 4 Ohm
    • Sound Pressure Level SPL: 94 dB (2.83V; 1m)
    • DC Resistance Re: 3.2 Ohm
    • Voice Coil Inductance L: 0.016 mH
    • Effective Piston Radiating area Sd: 11 cm2
    • Effective Mechanical Mass incl. air load mms: 0.47 g
    • Equivalent Volume of Compliance Vas: 0.01 l
    • Total Q Factor Qts: 0.71
    • Qms: 1.15
    • Qes: 1.85
    • Voice Coil Diameter: 30 mm
    • Mounting Diameter: 48 mm
    • Overall Diameter: 51.5 mm
    • Mounting Depth (not countersunk): 32.5 mm



    Power handling - heat sinks - ventilation

    Angle mount ventilation opening
    Rear view of the angle mount house showing the ventilation openings that ensure good air flow leading to much higher power handling than conventional car tweeter designs.

    Angle mount cut-open
    Top cut open of the angle mount with the 30mm tweeter mounted. Reveals the large heat sink.



    FLUSH MOUNT

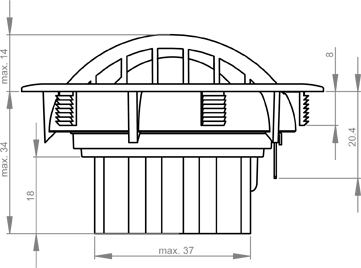

    OUTLINE DRAWING AND BUILD-IN DIMENSIONS (mm)
    Build-in-dimensions

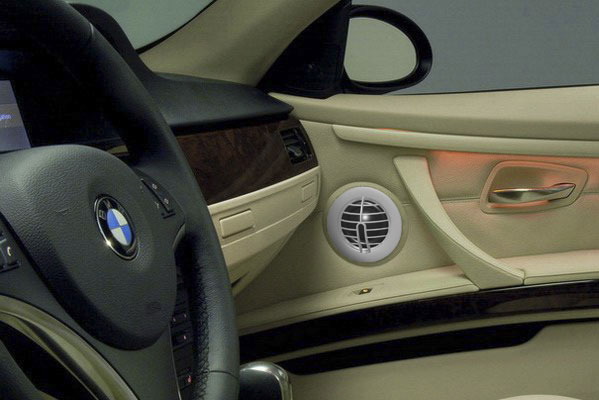

    Wavecor-in-BMW-335i-SE-Coupe
    Wavecor’s 30mm car tweeter flush mounted.

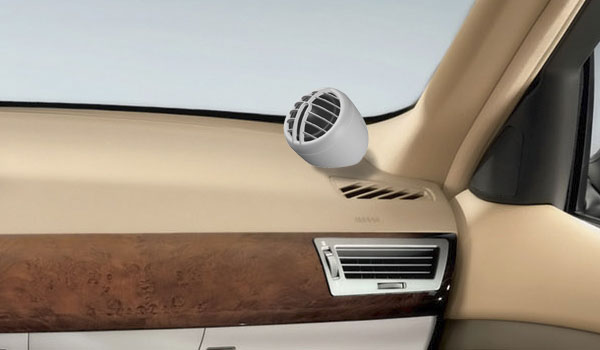

    Wavecor-in-BMW-7
    Wavecor’s 30mm car tweeter angle mounted.
