TW 70 - 8 Ohm

Thumbnail Filmstrip of TW 70 - 8 Ohm Images

    Purchase TW 70 - 8 Ohm

    SKU: V-9002-TW70 TW 70 - 8 Ohm

    $32.00 each
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Driver - TW 70 - 8 Ohm Cone Tweeter
    Art. No. 9002

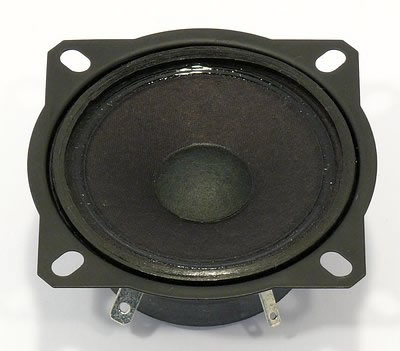

    Visaton TW70 - 8 Ohm Cone Tweeter.
    Visaton TW70 - 8 Ohm Cone Tweeter.



    Characteristics and Sound Properties
    Cone tweeter with special basket for the high-frequency range above 5000 Hz. Balanced frequency response with brilliant highs and high power handling.

    Due to the sealed rear no separate high-frequency range housing construction necessary. Especially suitable as replacement unit for many HiFi speakers.



    Technical Specifications

    Nominal power handling with high pass 80 W (12 dB/Oct.; 5000 Hz)
    40 W (12 dB/Oct.; 3000 Hz)
    Peak power handling with high pass 100 W (12 dB/Oct.; 5000 Hz)
    60 W (12 dB/Oct.; 3000 Hz)
    Nominal impedance Z 8 Ohm
    Frequency response 800–20000 Hz
    Mean sound pressure level 90 dB (1W/1m)
    Opening angle (-6 dB) 82°/4000 Hz
    Excursion limit ± 0.5 mm
    Resonance frequency fs 1500 Hz
    Magnetic induction 0.96 T
    Magnetic flux 134 µWb
    Height of front pole-plate 2.5 mm
    Voice coil diameter 14 mm
    Height of winding 2.5 mm
    Cutout diameter 64 mm
    Net weight 0.165 kg
    DC resistance Rdc 7.0 Ohm
    Mechanical Q factor Qms 1.26
    Electrical Q factor Qes 4.21
    Total Q factor Qts 0.97
    Effective piston area Sd 20 cm2
    Inductance of the voice coil L 0.16 mH
    Connections 4.8 x 0.8 mm (+)
    2.8 x 0.8 mm (−)





    Driver Dimensions

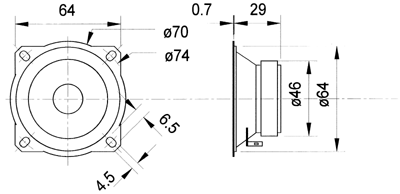

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)



    Frequency and Impedance Response

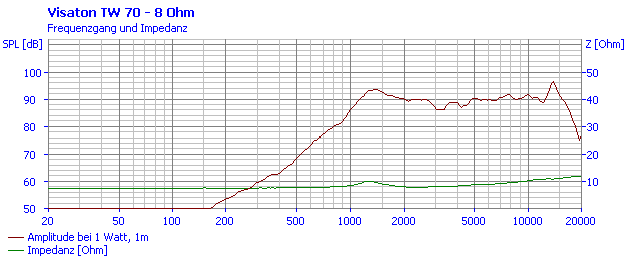

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph



    Directivity Pattern

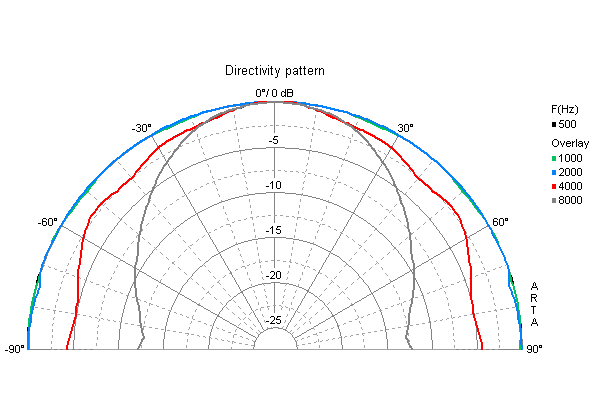

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
