Visaton Speaker Driver - SC 5.9 OM - 4 Ohm Full Range Speaker
Art. No. 8002
![Visaton SC5.9OM -48 Ohm Fullrange Speaker.](/mm5/graphics/visaton-drivers/sc59om/sc5_9om.jpg)
![](/mm5/graphics/visaton-drivers/sc59om/sc5_9om_4_2.jpg)

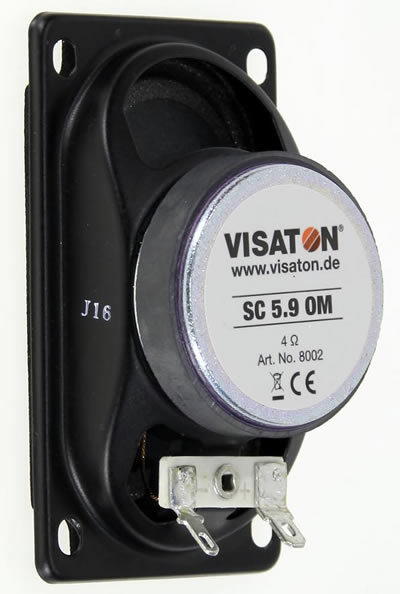

Visaton SC5.9OM - 4 Ohm Fullrange Speaker
Characteristics and Sound Properties
5 x 9 cm (2" x 3.5") fullrange driver with a powerful magnetic drive, good efficiency and a very balanced frequency response. Due to the very good highrange reproduction and the small size any non-spacious application in the field of multimedia and Dolby Surround are possible. The SC 5.9 OM - 4 Ohm can furthermore be used as replacement part for internal flat TV speakers.
Typical applications:-
- Multimedia systems
- Flat TVs
- Control speaker for electronic devices
Attributes:-
- Moisturised cone
- Metal basket
Technical Specifications
Rated power | 10 W |
Maximum power | 15 W |
Nominal impedance Z | 4 Ohm |
Frequency response | 90–20000 Hz |
Mean sound pressure level | 84 dB (1 W/1 m) |
Resonance frequency fs | 170 Hz |
Height of front pole-plate | 3 mm |
Voice coil diameter | 14 mm |
Height of winding | 4 mm |
Cutout diameter | 43 x 82 mm |
Net weight | 0.14kg |
Connections | 4.8 x 0.8 mm (+) 2.8 x 0.8 mm (−) |
Temperature range | -25 ... +70 °C |
![Temperature Range](/mm5/graphics/visaton-drivers/temperatur_25_70.gif)
Driver Dimensions
![SC5.9 - 8 Ohm Full Range](/mm5/graphics/visaton-drivers/sc59om/sc5_9om_tz.gif)
Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
Frequency and Impedance Response
![Loudspeaker Frequency and Impedance Response Graph](../mm5/graphics/visaton-drivers/sc59om/sc5_9om_8_fs.gif)
Loudspeaker Frequency and Impedance Response Graph

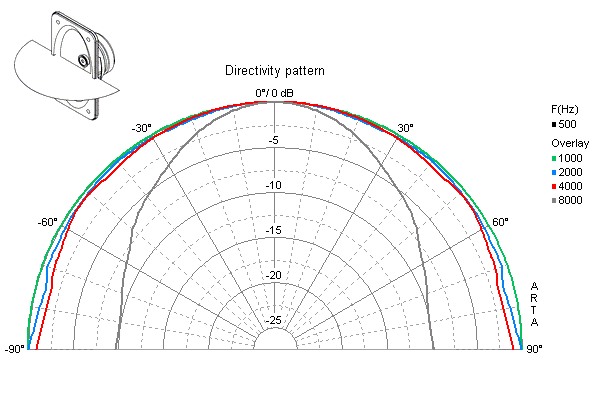

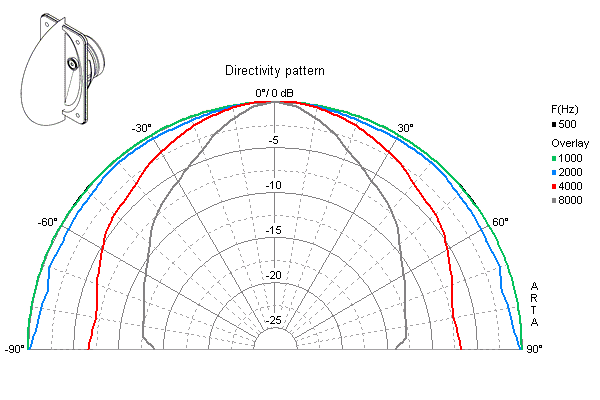

Directivity Pattern
Loudspeaker Directivity Pattern (on and off axis response)
