SC 5.9 - 8 Ohm

Thumbnail Filmstrip of SC 5.9 - 8 Ohm Images

    Purchase SC 5.9 - 8 Ohm

    SKU: V-8006-SC59 SC 5.9 - 8 Ohm

    $19.00 each
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Driver - SC 5.9 - 8 Ohm Fullrange Driver
    Art. No. 8006

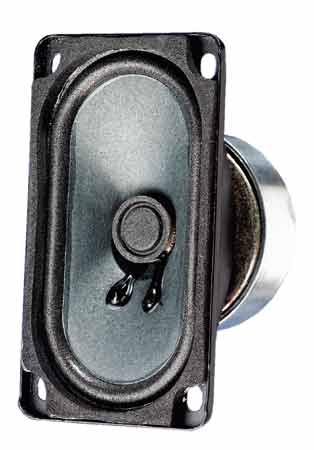

    Visaton SC5.9 - 8 Ohm Full Range Driver.
    Visaton SC5.9 - 8 Ohm Full Range Driver.



    Characteristics and Sound Properties
    Magnetically shielded 5 x 9 cm (2" x 3.5") fullrange driver with a powerful magnetic drive, good efficiency and a very balanced frequency response. Due to the very good highrange reproduction and the small size any non-spacious application in the field of multimedia and Dolby Surround are possible. The SC 5.9 - 8 Ohm can furthermore be used as replacement part for internal TV speakers.

    Typical applications:-
    - Multimedia systems
    - Video monitoring screens
    - TVs
    - Computer terminals
    - Control speaker for electronic devices

    Attributes:-

    - Moisturised cone
    - Metal basket
    - Magnetically shielded



    Technical Specifications

    Rated power 10 W
    Maximum power 15 W
    Nominal impedance Z 8 Ohm
    Frequency response 130–20000 Hz
    Mean sound pressure level 84 dB (1W/1m)
    Opening angle (-6 dB) 180°/4000 Hz hor.
    131°/4000 Hz ver.
    Excursion limit ± 1.5 mm
    Resonance frequency fs 193 Hz
    Magnetic induction 0.9 T
    Magnetic flux 120 µWb
    Height of front pole-plate 3 mm
    Voice coil diameter 14 mm
    Height of winding 4 mm
    Cutout diameter 43 x 82 mm (oval)
    Net weight 0.214 kg
    DC resistance Rdc 7.0 Ohm
    Mechanical Q factor Qms 7.52
    Electrical Q factor Qes 1.5
    Total Q factor Qts 1.25
    Equivalent volume Vas 0.4 litres
    Effective piston area Sd 26.5 cm2
    Dynamically moved mass Mms 1.5 grams
    Force factor Bxl 2.5 Tm
    Inductance of the voice coil L 0.4 mH
    Connections 4.8 x 0.8 mm (+)
    2.8 x 0.8 mm (−)
    Temperature range −25 ... 70 °C
    Temperature Range

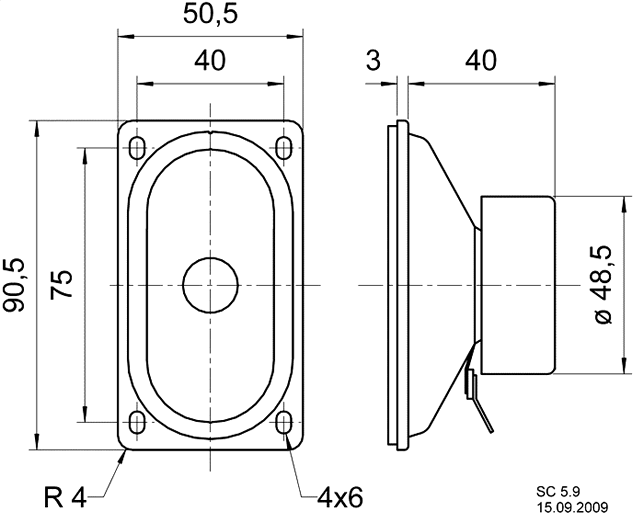

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

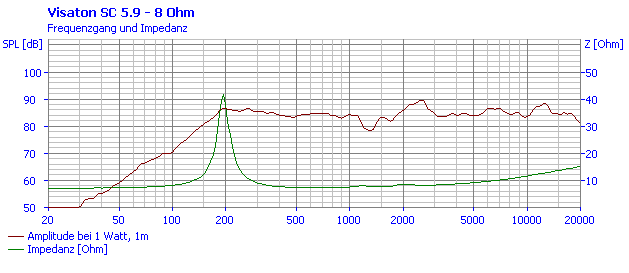

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph

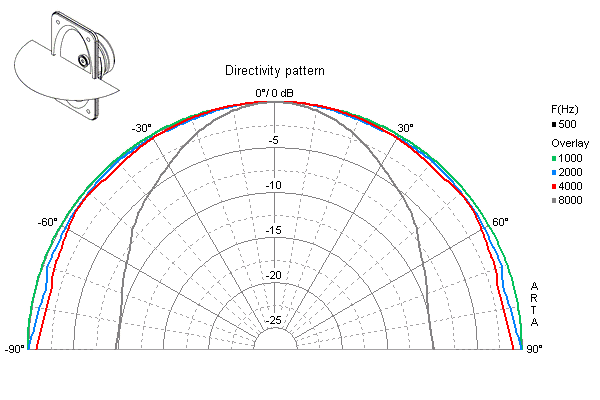

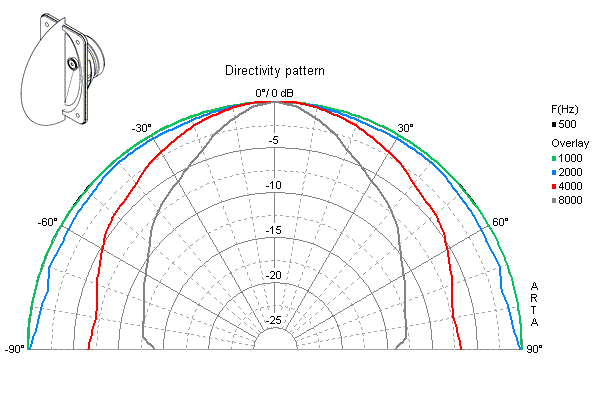

    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)

    Directivity Pattern SC 5.9 8 Ohm Visaton Speaker

    Loudspeaker Directivity Pattern (on and off axis response)
