HTH 8.7 - 8 Ohm

Thumbnail Filmstrip of HTH 8.7 - 8 Ohm Images

    Purchase HTH 8.7 - 8 Ohm

    SKU: V-6037-HTH87 HTH 8.7 - 8 Ohm

    $135.00 each
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Driver - HTH 8.7 - 8 Ohm Professional CD Horn
    Art. No. 6037

    Visaton HTH8.7 - 8 Ohm Professional Constant Directivity Horn
    Visaton HTH 8.7 - 8 Ohm Professional Constant Directivity Horn



    Characteristics and Sound Properties
    Professional CD-Horn (constant directivity) for the highrange above 3000 Hz. The square shaped horn system is made of rugged black plastic and equipped with a 25 mm voice-coil for high power handling. The horn can therefore be used as an ideal highrange component for compact 2- and 3-way-speakers used as stage monitors or small PA for instruments and vocals.



    Technical Specifications

    Normianl power handling with high pass 200 W (12 dB/Oct.; 5000 Hz)
    Peak power handling with high pass 300 W (12 dB/Oct.; 5000 Hz)
    Nominal impedance Z 8 Ohm
    Frequency response
    1200–16000 Hz
    Mean sound pressure level 106 dB (1W/1m)
    Opening angle (-6 dB) 75°/4000 Hz hor.
    69°/4000 Hz vert.
    Resonance frequency fs 1900 Hz
    Magnetic induction 1.5 T
    Voice coil diameter 25 mm
    Cutout diameter 123 x 165 mm
    Net weight 0.95 kg

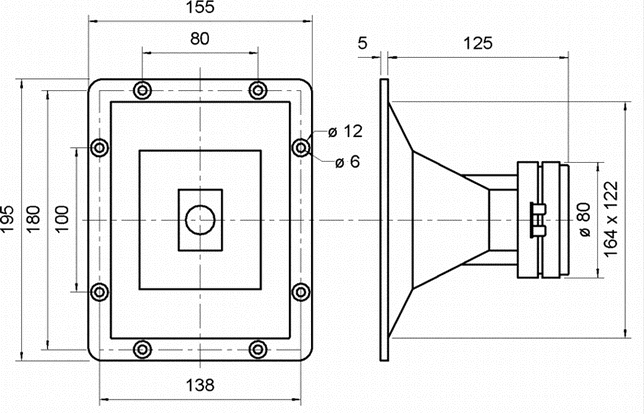

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

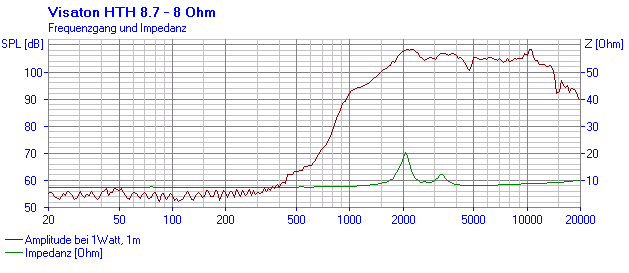

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph

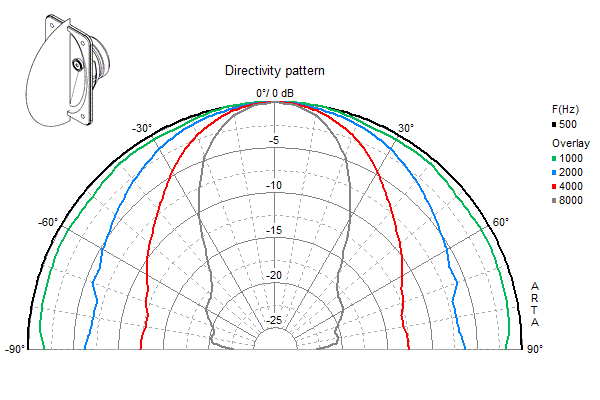

    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)

    HTH 87 Directivity Pattern
    Loudspeaker Directivity Pattern (on and off axis response)
