TL 16 H - 8 Ohm

Thumbnail Filmstrip of TL 16 H - 8 Ohm Images

    Purchase TL 16 H - 8 Ohm

    SKU: V-24520-TL16H TL 16 H - 8 Ohm

    $475.00 each
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Driver - TL 16 H - 8 Ohm High End Horn Driver
    Art. No. 24520

    Visaton TL16H - 8 Ohm High End Horn Driver.
    Visaton TL16H - 8 Ohm High End Horn Driver



    Characteristics and Sound Properties
    High-End horn driver for the high-frequency range above 5000 Hz. The extremely light aluminium titanium alloy diaphragm shows, apart from a very dynamic pulse response, a very linear frequency response. The powerful strontium-ferrite magnet and the 16 mm voice-coil are a guarantee for highest efficiency.



    Technical Specifications

    Nominal power handling with high pass 150 W
    (12 dB/Oct.; 7500 Hz)
    Peak power handling with high pass 200 W
    (12 dB/Oct.; 7500 Hz)
    Nominal impedance Z 8 Ohm
    Frequency response 2200–35000 Hz
    Mean sound pressure level 100 dB (1W/1m)
    Opening angle (-6 dB) 67°/8000 Hz
    Resonance frequency fs 6000 Hz
    Magnetic induction 1.6 T
    Magnetic flux 200 µWb
    Height of front pole-plate 2.5 mm
    Voice coil diameter 16 mm
    Net weight 1.3 kg
    DC resistance Rdc 6.9 Ohm
    Inductance of the voice coil L 0.17 mH

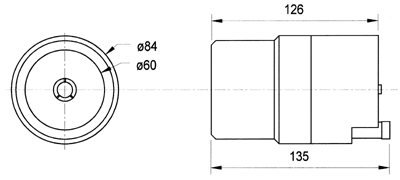

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

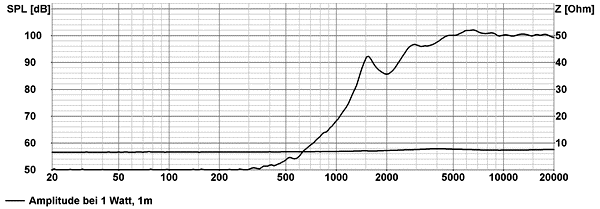

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph

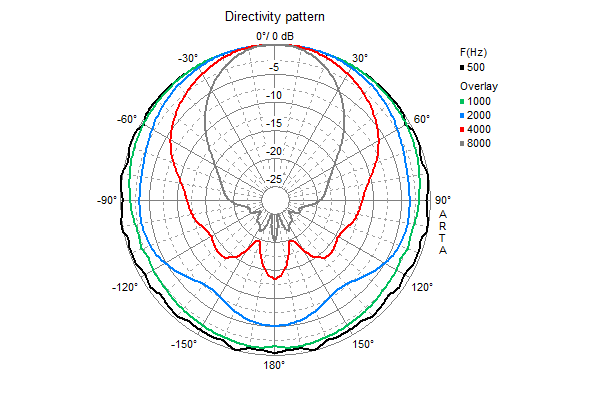

    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
