    Visaton Speaker Kit - Solo 50
    Art. No. 5986

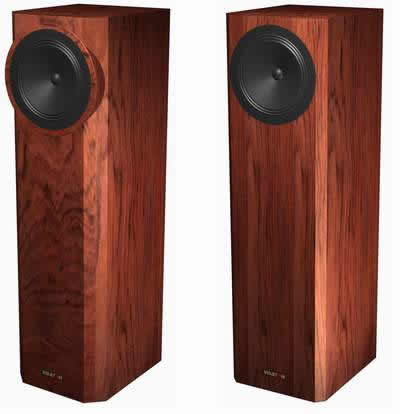

    Visaton Solo 50 - shown assembled with suggested cabinets, not supplied.
    Visaton Solo 50 - shown assembled with suggested cabinets, not supplied.



    Characteristics and Sound Properties
    The SOLO 50 applies the SOLO 100 concept to a more compact cabinet. This makes the units suitable for smaller rooms where the larger version would be too physically overpowering or the bass too powerful.

    With a net volume of 50 litres, it is essential to have an internal resonance absorber as with the SOLO 100 owing to the Q-factor of the B 200 - 6 Ohm. This can also be used to fine-tune the bass reflex. The lower limiting frequency is not as low as with the SOLO 100 but is certainly sufficient for small to medium-sized rooms. The absorber must be carefully damped again.

    The correcting circuitry is designed by analogy to the SOLO 100. If you replace the 15 ohm resistance with a 22 ohm, the increase in high-frequency frequency response will be eliminated and the result as measured in the measuring room was a well-balanced spectrum. Listening tests showed, however, that, as a result of the beaming effect of this wide-range speaker, a slight increase is beneficial in most listening environments.



    Technical Specifications

    Rated power 40 W
    Maximum power 70 W
    Nominal impedance Z 6 Ohm
    Frequency response 42-20000 Hz
    Mean sound pressure level 88 dB (2.83V/1m)
    Principle of Housing Bass Reflex
    Net volume 50 litres
    Outer dimension height 900 mm
    Outer dimension width 260 mm
    Outer dimension depth 300 mm



    Frequency and Impedance Response

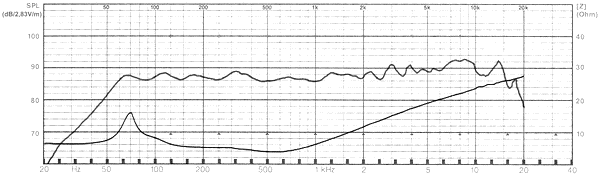

    Frequency Response and Impedance Graph
    Frequency Response and Impedance Graph



    Exploded Cabinet Drawing

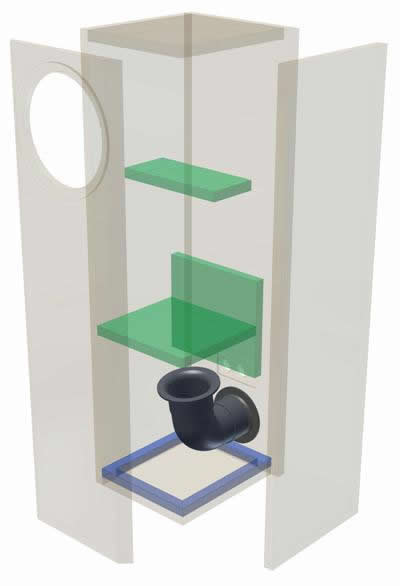

    Exploded drawing version 1 (without ring)
    Exploded drawing version 1 (without ring)

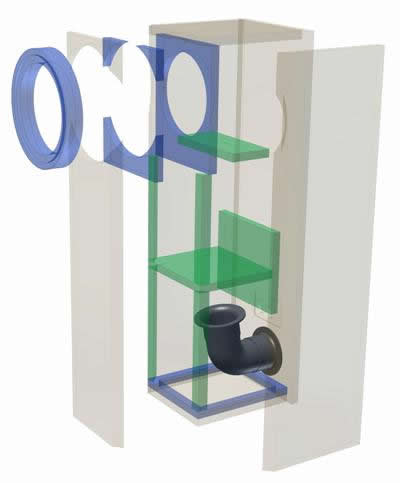

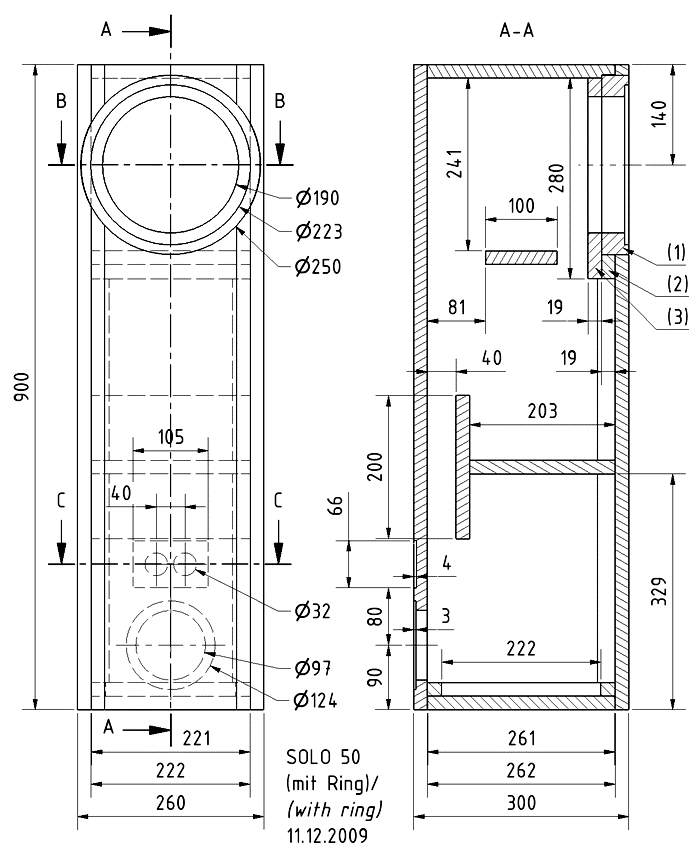

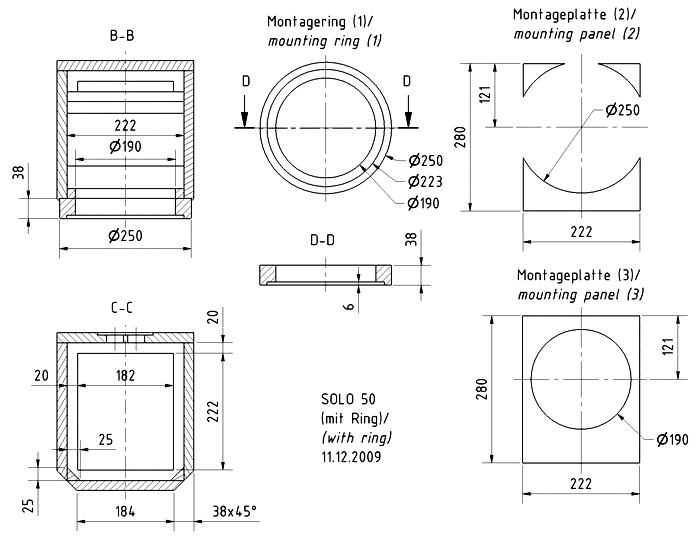

    Exploded drawing version 2 (with ring)
    Exploded drawing version 2 (with ring)


    Exploded Speaker Box Drawing



    Assembly
    We suggest two alternative cabinets:

    1) simple cabinet with narrow chamfers on the sides
    2) more sophisticated design with a ring round the B 200 - 6 Ohm. Acoustically, there is hardly likely to be any difference. The second alternative is much more complex to build, though.

    The base is screwed onto a frame and not glued, to enable you to fit the bass reflex tube



    Internal Damping
    Four mats of damping material are arranged as shown (see drawing below). The mat for the inner channel is cut to the width of the cabinet (22 cm) and pushed into the channel flat. The lower mat is rolled lengthways and wrapped around the bass reflex tube but leaving the opening free.



    Component Parts List for Each Box - Supplied with Kit
    The kit comes with all necessary components (see list below for one box), one set if the speaker is an each, or two sets for a pair, see price above for details.

    Tweeter B 200 - 6 Ohm 1 pc.
    Crossover Solo 50 1 pc.
    Terminal High End Terminal 1 pc.
    Bass reflex tube BR 25.50 (full length) 1 pc.
    Damping material Polyester wool 2 bags
    Wood screws 4 x 25 mm 6 pcs.
    Cable 2 x 2.5 mm² 1.5 m



    Speaker Cabinet Material List to Make 1 Box - Not Supplied with Kit

    1) Version with ring
    Parts for One Box (not supplied) Size (mm) Quantity
    Material: 19 mm chipboard or MDF recommended
    Rear panel 900 x 269 1
    Side panels 900 x 262 2
    Front 900 x 222 1
    Top, bottom panels, frame 262 x 222 3
    Partition panel 203 x 222 1
    Rear channel panel 200 x 222 1
    Mounting panels 280 x 222 2
    Brace 100 x 222 1

    Material: 38mm chipboard or MDF
    Mounting ring D = 250 1

    Material: Triangular ledge
    Braces 563 x 25 x 25 2

    2) Version without ring
    Parts Size (mm) Quantity
    Material 19 mm chipboard or MDF
    Front, rear panels 900 x 260 2
    Side panels 900 x 262 2
    Top, bottom panels, frame 222 x 262 3
    Partition panel 222 x 203 1
    Rear channel panel 222 x 200 1
    Brace 222 x 100 1



    Speaker Cabinet Dimensions

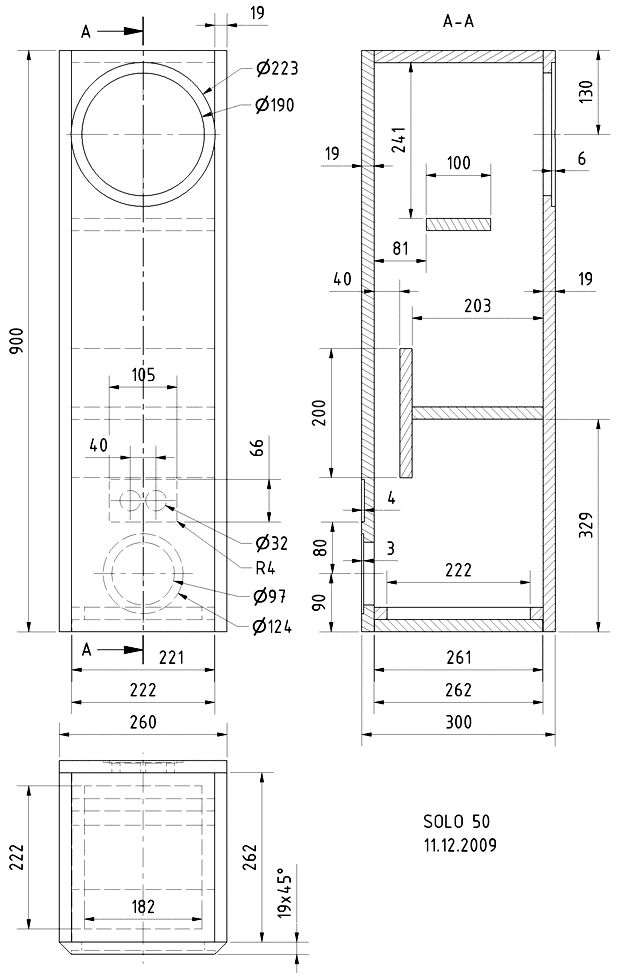

    Loudspeaker Box Construction Diagram - all dimensions in mm.

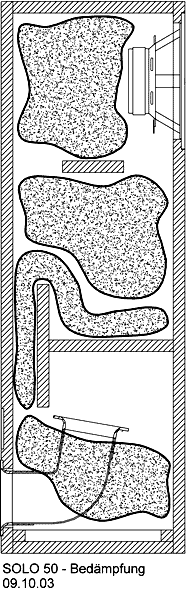

    Solo 50 Speaker kit inner damping


    Loudspeaker Box Construction Diagram - all dimensions in mm.



    Crossover - Supplied with Kit Already Assembled

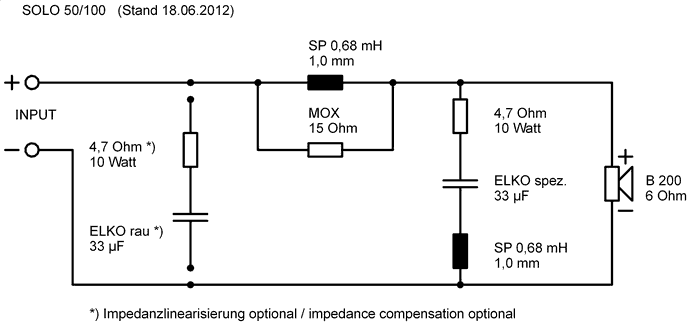

    Speaker Kit Crossover Circuit
    Speaker Kit Crossover Circuit
