Solo 20 Speaker Kit'

Thumbnail Filmstrip of Solo 20 Speaker Kit' Images

    Purchase Solo 20 Speaker Kit'

    SKU: V-5981-Solo20 Solo 20 Speaker Kit'

    $745.00 per pair without cabinets
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Kit - Solo 20
    Art. No. 5981

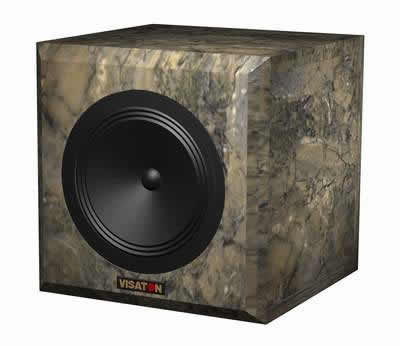

    Visaton Solo 20 - shown assembled with suggested cabinets, not supplied.
    Visaton Solo 20 - shown assembled with suggested cabinets, not supplied.



    Characteristics and Sound Properties
    The smallest member of the SOLO family with its high-end B 200 - 6 Ohm full-range loudspeaker has an inside capacity of only 20 l. The lower limiting frequency is at 52 Hz (-10 dB) and 65 Hz (-6 dB).

    The correcting circuit for making producing a linear volume increase in the B 200 - 6 Ohm can be made even more simply in the SOLO 20. All we need is three components. There is also an linearisation of the impedance which means that the SOLO 20 can also be connected up without problems to amplifiers with a low attenuation factor.

    The compact design enables these speakers to be placed unobtrusively on a sideboard or in a shelving unit or to be mounted on their own stands. If a powerful subwoofer for the low-range frequencies is integrated, the user has a system which provides enough flexibility to deal with even difficult acoustics in many rooms by careful positioning and adjustment of the output levels.

    The SOLO 20 is also highly suited to home theatre applications. The speakers can be used for all the channels and should be supported at the lower end by a subwoofer.

    In terms of its sound qualities, the SOLO 20 provides all the positive properties of its larger cousins, the SOLO 50 or SOLO 100, as regards sound source, transparency and analytical clarity. Add to this the increased, robust output stability due to the fact that the B 200 - 6 Ohm is relieved of the bass frequencies.



    Technical Specifications

    Rated power 80 W
    Maximum power 150 W
    Nominal impedance Z 6 Ohm
    Frequency response 52-20000 Hz
    Mean sound pressure level 90 dB (2.83V/1m)
    Principle of Housing Closed
    Net volume 20 litres
    Outer dimension height 315 mm
    Outer dimension width 315 mm
    Outer dimension depth 315 mm

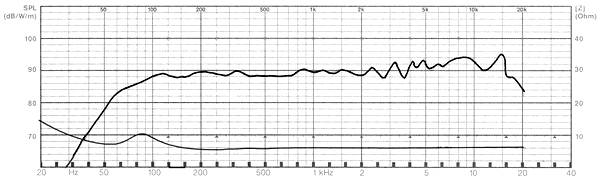

    Frequency and Impedance Response

    Frequency Response and Impedance Graph
    Frequency Response and Impedance Graph

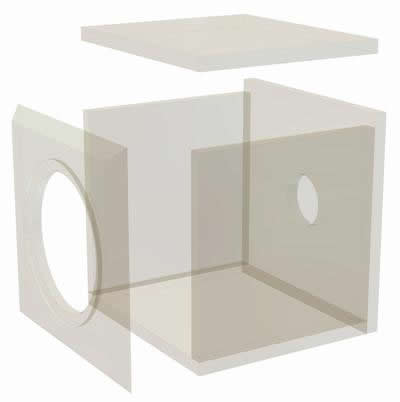

    Exploded Cabinet Drawing

    Exploded Speaker Box Drawing
    Exploded Speaker Box Drawing



    Assembly
    The cabinet sections are cut in accordance with the parts list and glued together. Next, the openings and recesses for the loudspeaker and terminal connections can be cut out.



    Internal Damping
    The damping material is evenly distributed in the cabinet.



    Component Parts List for Each Box - Supplied with Kit
    The kit comes with all necessary components (see list below for one box), one set if the speaker is an each, or two sets for a pair, see price above for details.

    Full-range speaker B 200 - 6 Ohm 1 pc.
    Crossover Solo 20 1 pc.
    Terminal ST 77 1 pc.
    Damping material Polyester wool 1 bags
    Special wood screws 4 x 25 mm 6 pcs.
    Countersunk screws 3.5 x 25 mm 4 pcs.
    Cable 2 x 1.5 mm² 0.5 m



    Speaker Cabinet Material List to Make 1 Box - Not Supplied with Kit

    Parts for One Box (not supplied) Size (mm) Quantity
    Material: 19 mm chipboard or MDF recommended
    Front and rear panel 315 x 315 2
    Side panel 277 x 277 2
    Top and bottom panel 315 x 277 2

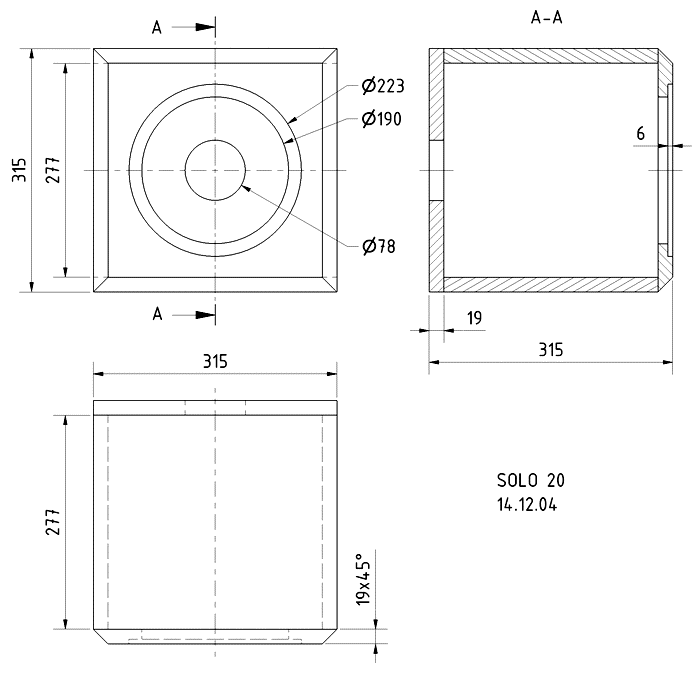

    Speaker Cabinet Dimensions

    Loudspeaker Box Construction Diagram - all dimensions in mm.
    Loudspeaker Box Construction Diagram - all dimensions in mm.

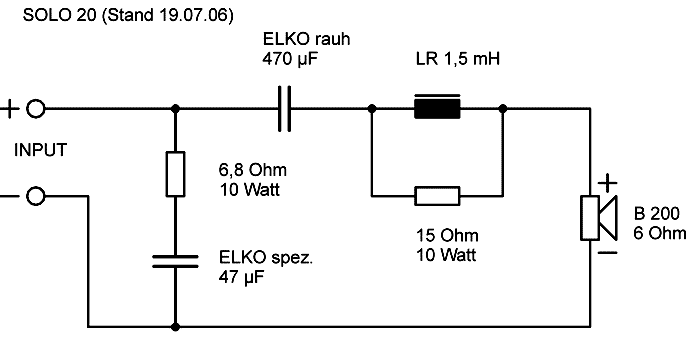

    Crossover - Supplied with Kit Already Assembled

    Speaker Kit Crossover Circuit
    Speaker Kit Crossover Circuit
