    Visaton Speaker Kit - Alto III C
    Art. No. 5972

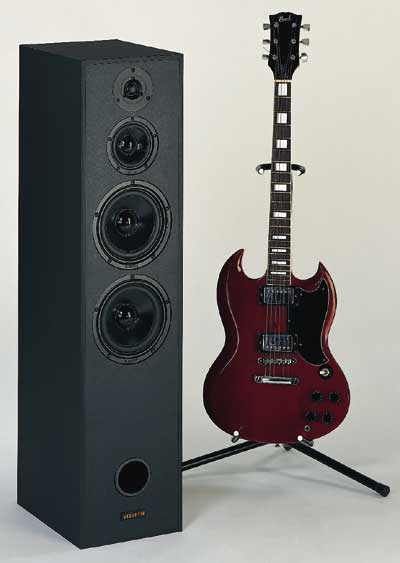

    Visaton Alto IIIC (accessories not included) - shown assembled with suggested cabinets, not supplied.
    Visaton Alto IIIC (accessories not included) - shown assembled with suggested cabinets, not supplied.



    Characteristics and Sound Properties
    The ALTO III c has been designed as a 3-way column speaker with an inside volume of no less than 55 litres. The twin bass arrangement using two W 170 S - 8 Ohm drivers in parallel guarantees very powerful low-ranging bass reproduction, that comes across crisply and impressively even with hard-hitting beat.

    From around 450 Hz upwards, the 10 cm mid-range cone W 100 S - 4 Ohm takes over, mounted in its 3 litre enclosure. Single instruments and solo voices are reproduced throughout the mid-range in a most tangible, crisp fashion, where the precise definition of virtual sound sources and their associated range layering, so typical for good mid-range cones, comes across well.

    Above about 3500 Hz, the sound character is rounded off neatly by the crisp 19 mm tweeter DT 94 - 8 Ohm. The exuberance demonstrated by the ALTO III c promises to put listeners in a good mood and keep them there for several hours of musical pleasure.



    Technical Specifications

    Rated power 100 W
    Maximum power 180 W
    Nominal impedance Z 4 Ohm
    Frequency response 35-22000 Hz
    Mean sound pressure level 86 dB (1W/1m)
    Cut-off frequency 450 / 3500 Hz
    Principle of Housing Bassreflex
    Net volume 44 + 3 litres
    Outer dimension height 1000 mm
    Outer dimension width 230 mm
    Outer dimension depth 300 mm



    Frequency and Impedance Response

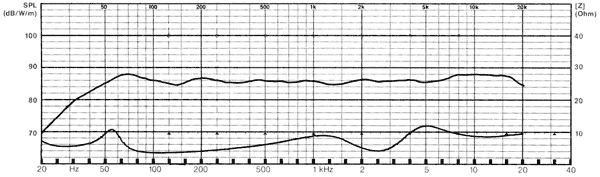

    Frequency Response and Impedance Graph
    Frequency Response and Impedance Graph

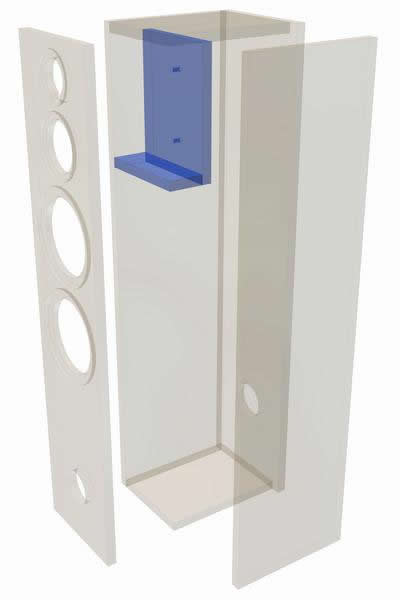

    Exploded Cabinet Drawing

    Exploded Speaker Box Drawing
    Exploded Speaker Box Drawing



    Assembly
    The cabinet consists of boards stuck together (butt jointed), making construction a simple matter. The two boards for the closed mid-range compartment are fitted inside the cabinet before the last side panel is glued in place. Before this, an 8 mm hole has to be drilled in the rear panel of the mid-range enclosure for the connection leads. The crossover unit is mounted on the rear panel behind the upper bass cut-out.



    Internal Damping
    The damping of the speaker uses eight mats of damping material pushed into the cabinet. To this end, the mats are folded once long ways and once crossways and pushed into the cabinet in such a way that the space behind the bass tubes remains free and the rest of the space inside the cabinet is loosely filled.



    Component Parts List for Each Box - Supplied with Kit
    The kit comes with all necessary components (see list below for one box), one set if the speaker is an each, or two sets for a pair, see price above for details.

    Tweeter DT 94 - 8 Ohm 1 pc.
    Midrange driver W 100 S - 4 Ohm 1 pc.
    Woofer W 170 S - 8 Ohm 2 pcs.
    Crossover ALTO III C 1 pc.
    Bass reflex tube BR 15.34 (full length) 1 pc.
    Terminal ST 77 1 pc.
    Damping material Polyester wool 4 bags
    Wood screws 3.5 x 19 mm 6 pcs.
    Countersunk screws 3.5 x 25 mm 38 pcs.
    Cable 2 x 1.5 mm² 3.5 m



    Speaker Cabinet Material List to Make 1 Box - Not Supplied with Kit

    Parts for One Box (not supplied) Size (mm) Quantity
    Material: 19 mm chipboard or MDF recommended
    Top and bottom panel 192 x 262 2
    Side panel 262 x 1000 2
    Front and rear panel 230 x 1000 2
    Midrange rear panel 192 x 250 1
    Midrange bottom panel 192 x 70 1



    Speaker Cabinet Dimensions

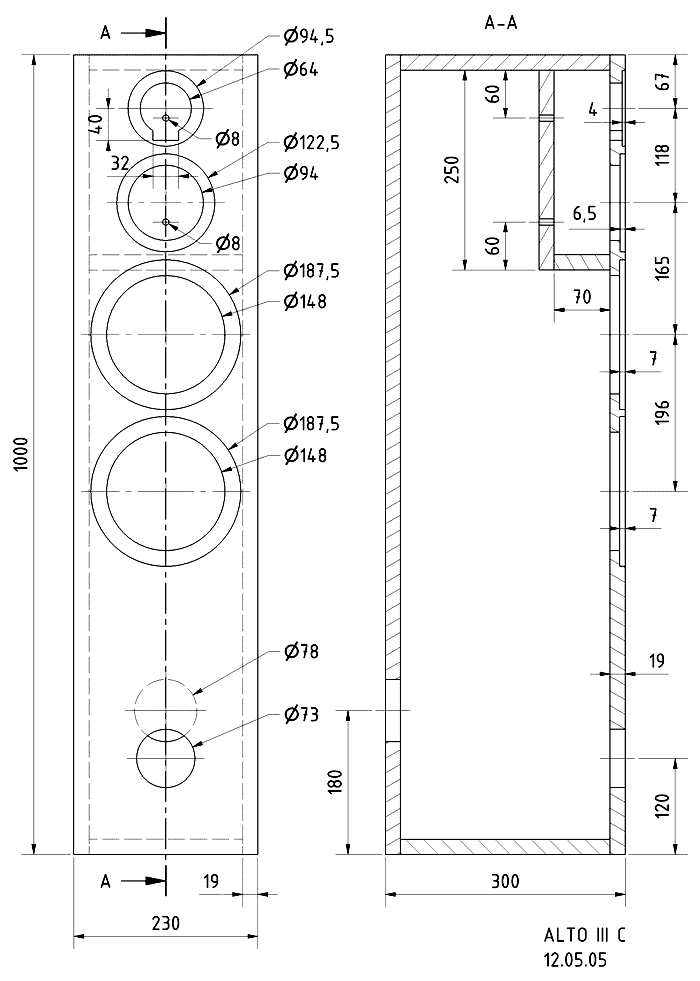

    Loudspeaker Box Construction Diagram - all dimensions in mm.
    Loudspeaker Box Construction Diagram - all dimensions in mm.



    Crossover - Supplied with Kit Already Assembled

    Speaker Kit Crossover Circuit
    Speaker Kit Crossover Circuit
