Alto Genesis SAT Speaker Kit

Thumbnail Filmstrip of Alto Genesis SAT Speaker Kit Images

    Purchase Alto Genesis SAT Speaker Kit

    SKU: V-5971-Alto-Genesis-Sat Alto Genesis SAT Speaker Kit

    $475.00 per pair without cabinets
    Quantity in Basket:  None







    Visaton Speaker Kit - Alto Genesis SAT
    Art. No. 5971

    Visaton Alto Genesis Sat (subwoofers and accessories not included) - shown assembled with suggested cabinets, not supplied.
    Visaton Alto Genesis SAT (subwoofers and accessories not included) - shown assembled with suggested cabinets, not supplied.



    Characteristics and Sound Properties
    Just because your sitting-room isn't large enough for big speakers, doesn't mean you have to do without high-quality sound. The VISATON subwoofer satellite system, ALTO GENESIS provides excellent listening pleasure in a very small space.

    Separating the subwoofer into two cabinets - left and right channels - means that the assignment to the corresponding satellite speaker is hidden. On the other hand, the two subwoofers can also be placed together as mono subwoofers. The bandpass subwoofer cabinet contains the 13 cm long-stroke woofer W 130 S - 8 Ohm. The well-balanced driver, cabinet and frequency parameters enable the subwoofer to be separated off at 110 Hz with a slope rate of 30 dB/octave. That is a level seldom achieved even by active subwoofers. The satellite speakers are also steeply cut off towards the bottom end by means of an optimised crossover unit. This optimised coupling technique means the position of the subwoofer is in reality not determinable.

    The small shelf-mounted satellite speakers produce the lively high frequencies and a balanced mid-range and provide the overall spatial qualities required. The tuning frequency cuts in at 110 Hz.

    Extract from HiFi Test: "The listening test proved the value of the impressive deep bass qualities ...." "While the satellite speakers provided the necessary crystal-clear mid- to high-range fill-in ...." "The testers at HiFi Test only have one recommendation to make Buy!" Verdict: very good

    Extract from Audio: "A masterly performance - the bass system produced such deep, deep bass attacks with such amazing clarity from its bandpass cabinets that it ended up with no less than 50 points." Value for money: very good



    Technical Specifications

    Rated power 80 W
    Maximum power 150 W
    Nominal impedance Z 4 Ohm
    Frequency response 110-23000 Hz
    Mean sound pressure level 82 dB (1W/1m)
    Cut-off frequency 110/4000 Hz
    Principle of Housing Bassreflex
    Net volume 3 litres
    Outer dimension height 243 mm
    Outer dimension width 160 mm
    Outer dimension depth 180 mm



    Frequency and Impedance Response

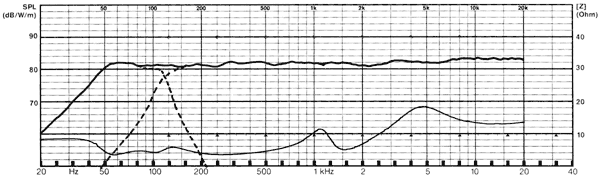

    Frequency Response and Impedance Graph
    Frequency Response and Impedance Graph

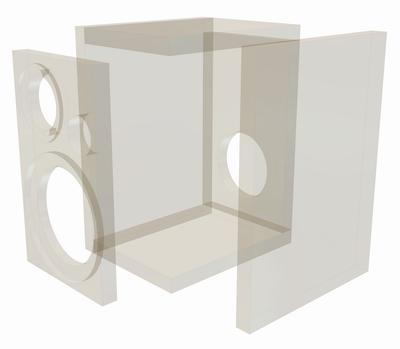

    Exploded Cabinet Drawing

    Exploded Speaker Box Drawing
    Exploded Speaker Box Drawing



    Assembly
    In order to simplify the cabinet construction as far as possible, we have done without the chamfers shown in the photo. If you prefer to include the all-round front chamfer, you will need the following information:

    Sat: 10 mm; 30°

    First of all, the individual boards are cut to size (refer to cutting list), stuck together (butt jointed) as shown in the drawing and firmly clamped for the duration of the drying time using sash cramps or parcel tape. Once the cabinet has been completely built, the cut-outs are made for the bass tube and terminals using a jig-saw. The last job is the surface treatment, i.e. painting, veneering or adhesive film.



    Internal Damping
    A half of a mat is put into each satellite.



    Component Parts List for Each Box - Supplied with Kit
    The kit comes with all necessary components (see list below for one box), one set if the speaker is an each, or two sets for a pair, see price above for details.

    Tweeter DTW 72 - 8 Ohm 1 pc.
    Bass-midrange driver W 100 S - 4 Ohm 1 pc.
    Crossover ALTO GENESIS SAT 1 pc.
    Bass reflex tube BR 6.8 (length: 6.5 cm) 1 pc.
    Terminal ST 77 1 pc.
    Damping material Polyester wool 1/4 bags
    Wood screws 3.5 x 19 mm 4 pcs.
    Countersunk screws 3.5 x 25 mm 9 pcs.
    Cable 2 x 1.5 mm² 0.5 m



    Speaker Cabinet Material List to Make 1 Box - Not Supplied with Kit

    Parts for One Box (not supplied) Size (mm) Quantity
    Material: 16 mm chipboard or MDF recommended
    Front panel 243 x 160 1
    Rear panel 211 x 128 1
    Top and bottom panel 164 x 128 2
    Side panel 64 x 243 2



    Speaker Cabinet Dimensions

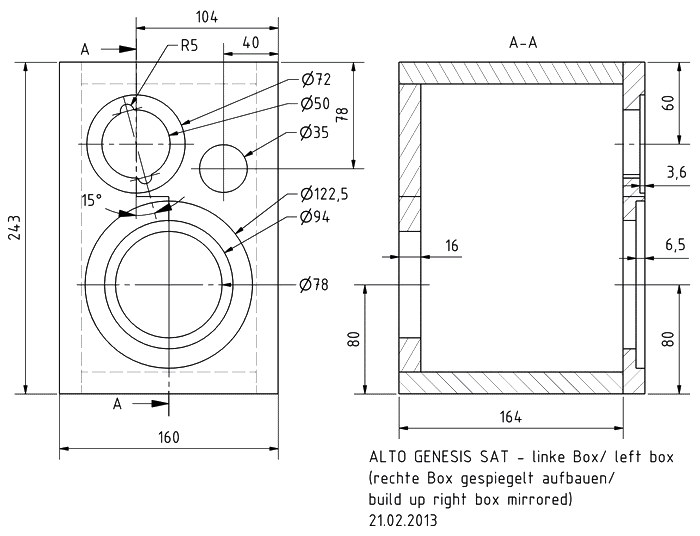

    Loudspeaker Box Construction Diagram - all dimensions in mm.
    Loudspeaker Box Construction Diagram - all dimensions in mm.



    Crossover - Supplied with Kit Already Assembled

    Speaker Kit Crossover Circuit
    Speaker Kit Crossover Circuit
