    Visaton Speaker Kit - Classic 200 GF
    Art. No. 5962

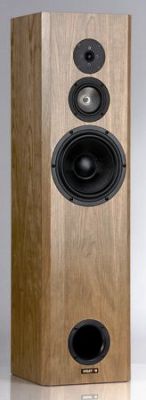

    Visaton CLassic 200GF - shown assembled with suggested cabinets, not supplied.
    Visaton Classic 200 GF - shown assembled with suggested cabinets, not supplied.



    Characteristics and Sound Properties
    Visaton's CLASSIC 200GF offers an interesting way to enter the world of high-end music pleasure. The high-quality components have been selected with an eye on optimising value-for-money but without losing sight (or rather, sound) of the key quality requirements. Supported by the front bass reflex vent, the GF 200 - 2 x 4 Ohm generates low-frequency sound in a classic 3-band combination. Thanks to the extremely rigid fibre-glass diaphragm and long cone-displacement properties, level accuracy is perfectly maintained even when cone excursion is considerable. In the mid-range, the TI 100 - 8 Ohm, one of the best Visaton drivers available, takes control. This very light, rigid titanium driver has become a reference point in terms of distortion free, well-detailed music reproduction.

    Above 2200 Hz, the G 20 SC - 8 Ohm fabric dome driver cuts in and does not stop until well above the frequencies considered to be audible (30 kHz).

    The overall result is a very high-quality, perfectly balanced speaker whose moderate size makes it an excellent candidate for enjoying high-end music in the sitting-room.



    Technical Specifications

    Rated power 120 W
    Maximum power 180 W
    Nominal impedance Z 8 Ohm
    Frequency response 35-30000 Hz
    Mean sound pressure level 86 dB (1W/1m)
    Cut-off frequency 400 / 2500 Hz
    Principle of Housing Bassreflex
    Net volume 40 + 4 litres
    Outer dimension height 1000 mm
    Outer dimension width 260 mm
    Outer dimension depth 260 mm



    Frequency and Impedance Response

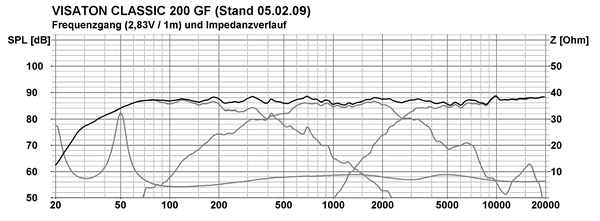

    Frequency Response and Impedance Graph
    Frequency Response and Impedance Graph

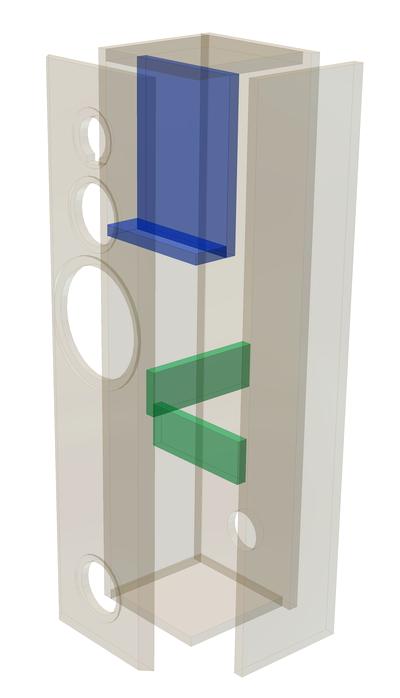

    Exploded Cabinet Drawing

    Exploded Speaker Box Drawing
    Exploded Speaker Box Drawing



    Assembly
    All the cabinet panels are cut from 19 mm chipboard or medium density fibreboard, butt-jointed and glued. After that, the openings for the driver and terminals are cut out and any necessary recesses cut. The chamfer on the outer baffle can be made either before the cabinet is glued together or afterwards.

    The crossover has to be mounted on the inner side of the rear panel across from the woofer.



    Internal Damping
    The damping material is loosely pushed into the cabinet. The space immediately behind the bass reflex tube must remain free.



    Component Parts List for Each Box - Supplied with Kit
    The kit comes with all necessary components (see list below for one box), one set if the speaker is an each, or two sets for a pair, see price above for details.

    Tweeter G 20 SC - 8 Ohm 1 pc.
    Mid-range driver TI 100 - 8 Ohm 1 pc.
    Woofer GF 200 - 2 x 4 Ohm 1 pc.
    Crossover Classic 200 GF 1 pc.
    Bass reflex tube BR 25.50 (full length) 1 pc.
    Terminal ST 77 1 pc.
    Damping material Polyester wool 2 bags
    Wood screws 4 x 20 mm 6 pcs.
    Wood screws 3.5 x 19 mm 8 pcs.
    Countersunk screws 3.5 x 25 mm 8 pcs.
    Cable 2 x 2.5 mm² 1.5 m
    Cable 2 x 1.5mm² 1.5 m

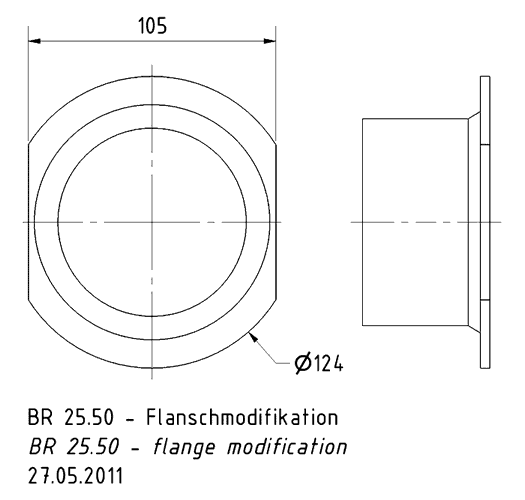

    Bass Reflex Tube Modification



    Speaker Cabinet Material List to Make 1 Box - Not Supplied with Kit

    Parts for One Box (not supplied) Size (mm) Quantity
    Material: 19 mm chipboard or MDF recommended
    Front and rear panel 260 x 1000 2
    Side panel 222 x 1000 2
    Top and bottom panel 222 x 222 2
    MR rear panel 222 x 290 1
    MR bottom 222 x 65 1
    Reinforcer 222 x 80 2



    Speaker Cabinet Dimensions

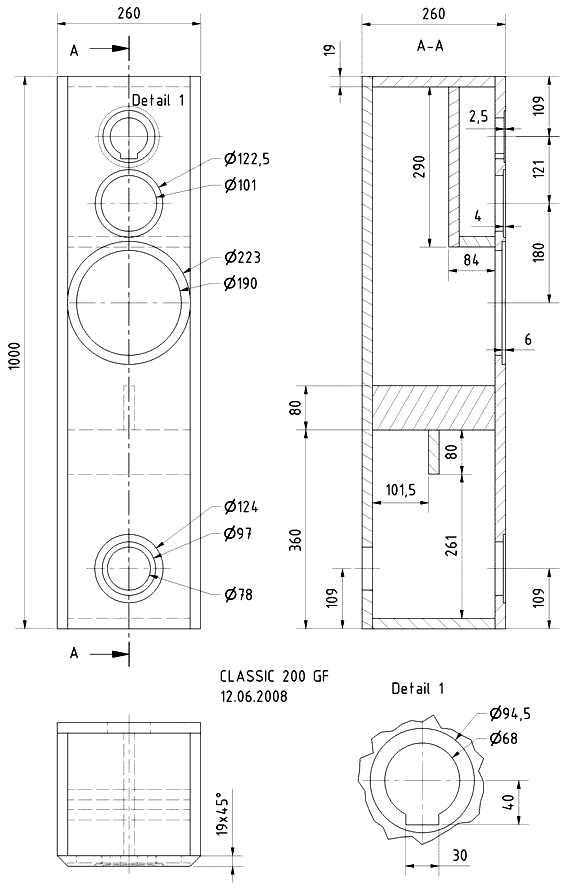

    Loudspeaker Box Construction Diagram - all dimensions in mm.
    Loudspeaker Box Construction Diagram - all dimensions in mm.



    Crossover - Supplied with Kit Already Assembled

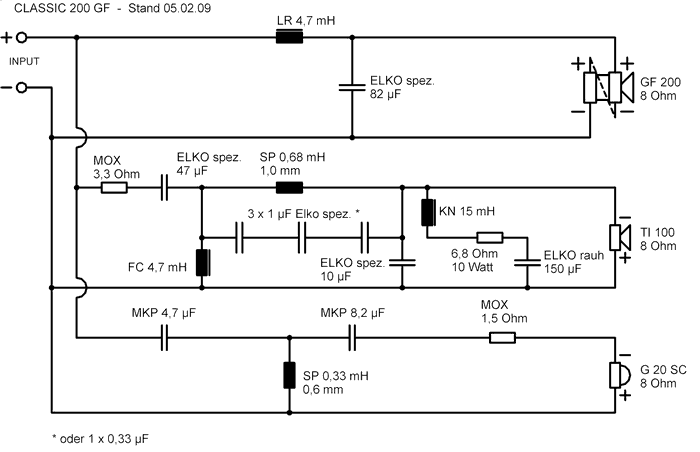

    Speaker Kit Crossover Circuit
    Speaker Kit Crossover Circuit
