VOX 200 Light Speaker Kit

Thumbnail Filmstrip of VOX 200 Light Speaker Kit Images

    Purchase VOX 200 Light Speaker Kit

    SKU: V-5956-VOX200-Light VOX 200 Light Speaker Kit

    $955.00 per pair without cabinets
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Kit - VOX 200 Light
    Art. No. 5956

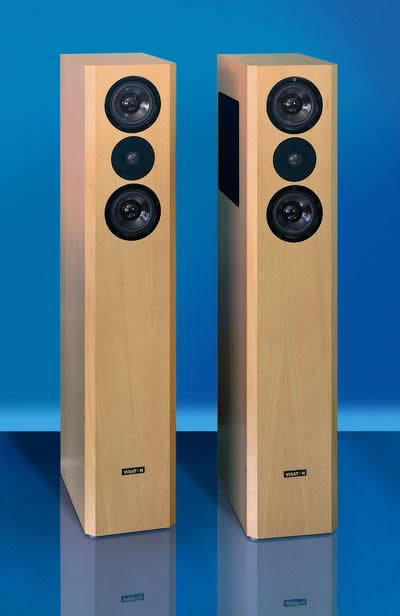

    Visaton Vox 200 Light - shown assembled with suggested cabinets, not supplied.
    Visaton VOX 200 Light - shown assembled with suggested cabinets, not supplied.



    Characteristics and Sound Properties
    Soon after its launch, the VOX 200 became one of the most popular and successful high-end kits. Several excellent tests in numerous specialist magazines have demonstrated that this system is at a quality level normally expected of far more expensive candidates. We were asked whether it was possible to fit these cabinets with much cheaper loudspeakers and still get good results.

    At the lower frequency end, we replaced the AL 200 - 8 OHM with the W 200 S - 8 OHM and also took out the TI 100 - 8 OHM mid-range loudspeaker, replacing it with two W 100 S - 8 OHM. We left the G 20 SC - 8 OHM dome tweeter unchanged. Initial tests showed that only a slight adjustment to the crossover were required. In terms of sound quality, the modified VOX put up an excellent showing in comparisons with the original.



    Technical Specifications

    Rated power 75 W
    Maximum power 115 W
    Nominal impedance Z 4 Ohm
    Frequency response 35-30000 Hz
    Mean sound pressure level 82 dB (1W/1m)
    Cut-off frequency 200 / 3000 Hz
    Principle of Housing Bassreflex
    Net volume 40 litres + 3.5 litres
    Outer dimension height 1000 mm
    Outer dimension width 200 mm
    Outer dimension depth 350 mm

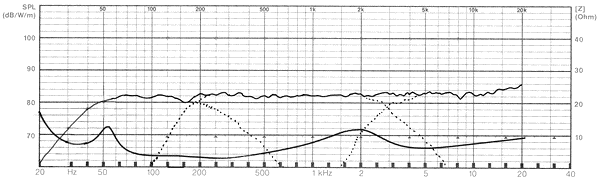

    Frequency and Impedance Response

    Frequency Response and Impedance Graph
    Frequency Response and Impedance Graph

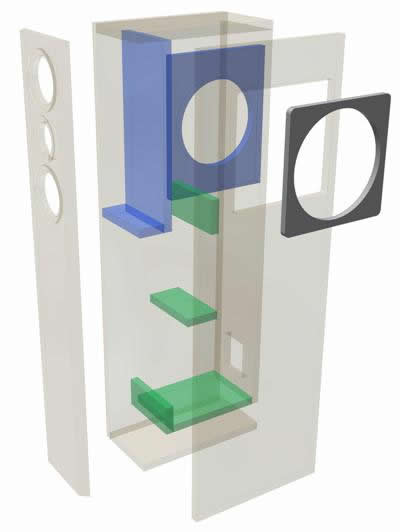

    Exploded Cabinet Drawing

    Exploded Speaker Box Drawing
    Exploded Speaker Box Drawing



    Assembly
    At first sight, the construction of the VOX 200 LIGHT looks complicated, which is why it is worth looking at each internal part individually first. In the lower part of the cabinet, you can see the bass reflex tunnel, made up of the base, one horizontal and one vertical upper board. In the middle, there are two cross-reinforcements to prevent resonance. At the top of the cabinet, behind the cut-out in the acoustic baffle for the mid- to high-range unit, is the enclosure required for the mid-range cone, made up of two wooden boards. Three holes will have to be drilled in the rear wall of the mid-range chamber for the cables. These holes must be well sealed up at the end.

    Fitting the W 200 S into the side is a special feature. Behind the square cut-outs in the side walls, the mounting board for the W 200 S is glued in place from within. This means that the bass driver can be sunken by 19 mm (19 mm = thickness of the boards). For optical reasons, and to enable the cloth-covered frame to be fitted exactly in place, the side-wall cut-out must be made extremely accurately. The frame can be made from a 12 mm board, in which a 205 mm diam. cut-out is made.

    The outer dimensions of the frame should be 1 - 2 mm smaller than the opening in the side-wall all round. In this way, the frame is jammed in place by the fabric used to cover it and alternative fixing methods (wooden plugs) are not necessary. The frequency crossover unit is mounted on the side-wall behind the bass cut-out.



    Internal Damping
    The inner damping uses one mat placed inside the medium range cabinet. The remainder is evenly distributed throughout the cabinet. Only the space above the tunnel opening (to the rear of the baffle) up to the lowest stiffener remains empty. If, as a result of the acoustics in the room, the low-range bass is too powerful, it is possible to fill this space as well up to the tunnel opening to lower the bass power.



    Component Parts List for Each Box - Supplied with Kit
    The kit comes with all necessary components (see list below for one box), one set if the speaker is an each, or two sets for a pair, see price above for details.

    Tweeter G 20 SC - 8 Ohm 1 pc.
    Bass-midrange driver W 100 S - 8 Ohm 2 pcs.
    Woofer W 200 S - 8 Ohm 1 pc.
    Crossover VOX 200 Light 1 pc.
    Terminal BT 95 / 75 1 pc.
    Damping material Polyester wool 3 bags
    Countersunk screws 3.5 x 25 mm 23 pcs.
    Material for speaker covers Width 50 cm 0.5 m
    Cable 2 x 1.5 mm² 1.5 m
    Cable 2 x 2.5 mm² 2.5 m



    Speaker Cabinet Material List to Make 1 Box - Not Supplied with Kit

    Parts for One Box (not supplied) Size (mm) Quantity
    Material: 19 mm chipboard or MDF recommended
    Front panel 1000 x 200 1
    Rear panel 902 x 162 1
    Side panel 1000 x 331 2
    Top and bottom panel 331 x 162 2
    Midrange rear panel 399 x 162 1
    Midrange bottom panel 60 x 162 1
    Brace 80 x 162 2
    Bass-reflex channel 230 x 162 1
    Bass-reflex channel 70 x 162 1
    Mounting board woofer 300 x 233 1

    Material: 12 mm chipboard or MDF
    Grille board 232 x 232 1

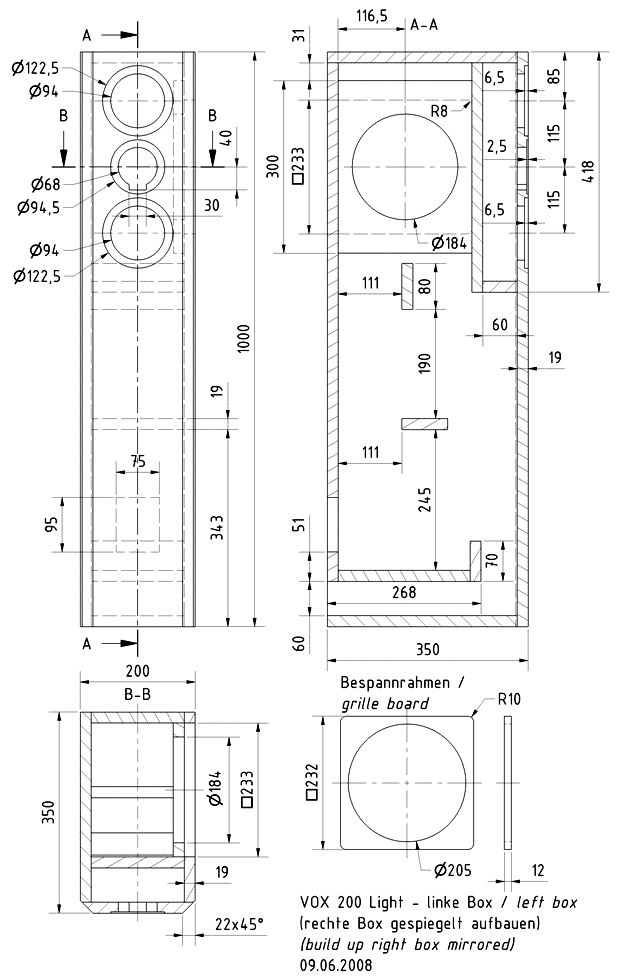

    Speaker Cabinet Dimensions

    Loudspeaker Box Construction Diagram - all dimensions in mm.
    Loudspeaker Box Construction Diagram - all dimensions in mm.

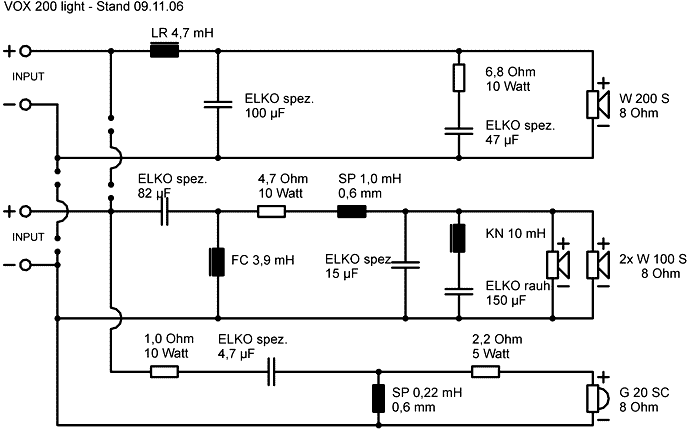

    Crossover - Supplied with Kit Already Assembled

    Speaker Kit Crossover Circuit
    Speaker Kit Crossover Circuit
