Atlantis MKII Speaker Kit

Thumbnail Filmstrip of Atlantis MKII Speaker Kit Images

    Purchase Atlantis MKII Speaker Kit

    SKU: V-5950-Atlantis Atlantis MKII Speaker Kit

    $3,195.00 per pair without cabinets - special order
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Kit - Atlantis MKII
    Art. No. 5950

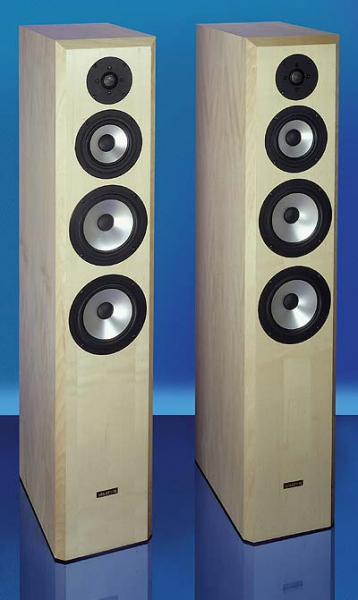

    Visaton Atlantis - shown assembled with suggested cabinets, not supplied.
    Visaton Atlantis MKII - shown assembled with suggested cabinets, not supplied.



    Characteristics and Sound Properties
    The ATLANTIS has been consistently designed for optimum sound-pressure rating while retaining a moderately sized cabinet and an elegant appearance. In the bass range, two AL 170 - 8 OHM are mounted in parallel but in separate housings, where each has about 27 l of air space to itself. These speakers have a lower limiting frequency of 28 Hz meaning that they generate good, solid deep bass. Where you position the speakers is more or less a matter of choice, but they should not be right against the wall (a minimum of 10 cm is needed) as otherwise the effect of the bass reflex tubes will suffer.

    Compared with the 'normal' AL 130 - 8 OHM, the AL 130 M - 8 OHM is equipped with a shorter voice coil. This improves efficiency and makes it the ideal choice in this combination.

    Used as a tweeter, the KE 25 SC - 8 Ohm is activated from 2500 Hz. The distortion factor of this ceramic dome driver is really low at these frequencies, so that even high volume levels come across completely free of distortion.

    Extract from Hobby HiFi 06/00: "In the listening test, the ATLANTIS impressed us with its subtle self-control. This does not mean that the ATLANTIS has anything to hide, though. Finer details are reproduced with such self-assuredness that they do not leap out at one but blend in well with the music. Bass lines with clearly defined plasticity? No problem! Tangible voices straight from the diaphragm? Of course. Precision-made width and range layering? No sooner said than done. VISATON's speaker of the year, fitted with the company's top-of-the-range fit-it-yourself driver, absolutely simple to set up and designed to harmonise with any surroundings. Excellent sound properties in a self-effacing, laid-back shape, to guarantee years of listening pleasure."

    Extract from STEREO 09/06: And then came the ATLANTIS, (...) originally a column speaker, with the qualities needed for a higher profile.(...). The seamless interaction of these world-class drivers (...) is an unmistakable characteristic. The KE 25 SC ceramic dome driver is breathtakingly dynamic without the slightest hint of aggression, its aluminium diaphragm produces clearly defined sound coupled with sophistication and beautifully clear bass, voices come across as entirely natural as does the spatial ratio between the stage and the individuals.(...). The ATLANTIS covers the entire frequency response range in a totally frank and unobtrusive manner, which means that poor recordings will not come across as high-quality ones. (...) The reproduction of good music should be confirmation enough that you have bought the right speakers. With the ATLANTIS, you will have no reason to regret your decision.



    Technical Specifications

    Rated power 140 W
    Maximum power 200 W
    Nominal impedance Z 4 Ohm
    Frequency response 28-25000 Hz
    Mean sound pressure level 86 dB (1W/1m)
    Cut-off frequency 200/2500 Hz
    Principle of Housing Bassreflex
    Net volume 2 x 27 + 7 litres
    Outer dimension height 1150 mm
    Outer dimension width 230 mm
    Outer dimension depth 370 mm

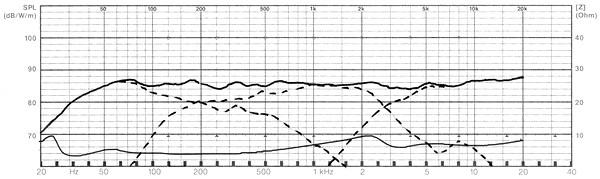

    Frequency and Impedance Response

    Frequency Response and Impedance Graph
    Frequency Response and Impedance Graph

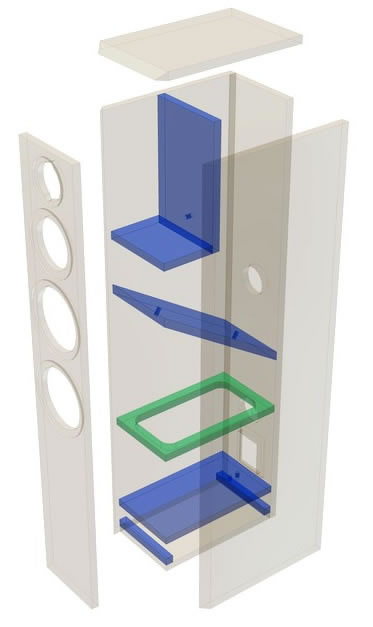

    Exploded Cabinet Drawing

    Exploded Speaker Box Drawing
    Exploded Speaker Box Drawing



    Assembly
    The cut sections of the cabinet, except for the base, are glued as shown in the drawing. Bevels can be cut with an adjustable jigsaw or circular saw. Since it is not always easy to set the exact angle, it is worth making a couple of trial cuts on spare wood.

    The cabinet is made with a double floor to enable the crossover to be positioned outside the speaker housing chamber itself. The base to which the crossover is attached is then screwed to the cabinet from below. The pre-drilled cable holes inside the housing must be filled afterwards using hot-melt glue or silicon mastic.



    Internal Damping
    Half a mat of damping material is placed inside the mid-range housing while 2 mats each are placed inside the woofer spaces. The space behind the bass reflex tubes should remain free.



    Component Parts List for Each Box - Supplied with Kit
    The kit comes with all necessary components (see list below for one box), one set if the speaker is an each, or two sets for a pair, see price above for details.

    Tweeter KE 25 SC - 8 Ohm 1 pc.
    Bass-midrange driver AL 130 M - 8 Ohm 1 pc.
    Woofer AL 170 - 8 Ohm 2 pcs.
    Crossover Atlantis 1 pc.
    Bass reflex tube BR 15.34 (Full length) 2 pc.
    Terminal BT 95/75 1 pc.
    Damping material Polyester wool 2.5 bags
    Special wood screws 4 x 25 mm 16 pcs.
    Countersunk screws 3.5 x 25 mm 4 pcs.
    Cable 2 x 1.5 mm² 2.5 m
    Cable 2 x 2.5 mm² 2.5 m



    Speaker Cabinet Material List to Make 1 Box - Not Supplied with Kit

    Parts for One Box (not supplied) Size (mm) Quantity
    Material: 19 mm chipboard or MDF recommended
    Front and rear panel 1131 x 192 2
    Side panel 1131 x 370 2
    Top panel 230 x 370 1
    Partition 407 x 192 1
    Intermediate bottom / brace 332 x 192 2
    Midrange bottom panel 132 x 192 1
    Midrange rear panel 305 x 192 2
    Bottom panel 331 x 191 1

    Material: Wood
    Lath 20 x 20 x 192 2

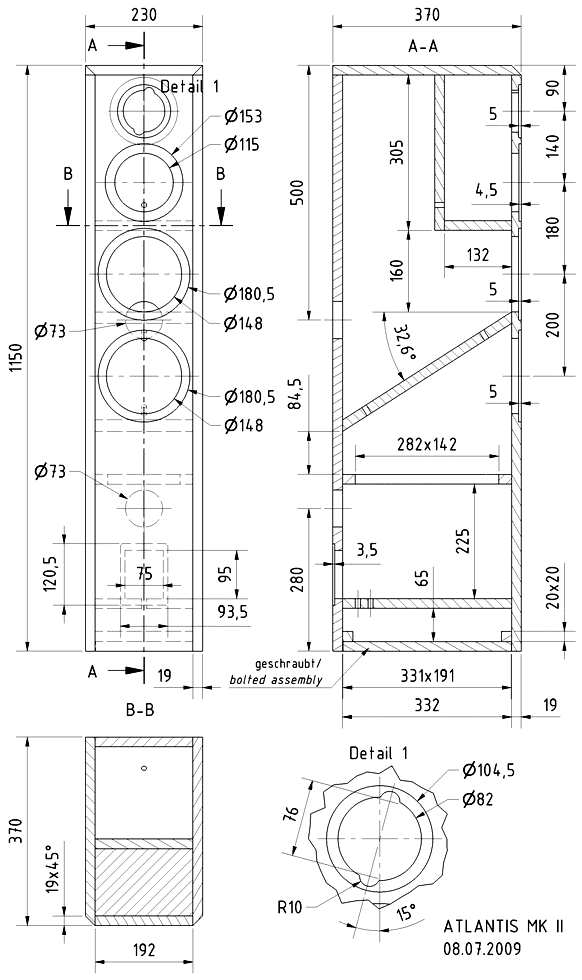

    Speaker Cabinet Dimensions

    Loudspeaker Box Construction Diagram - all dimensions in mm.
    Loudspeaker Box Construction Diagram - all dimensions in mm.

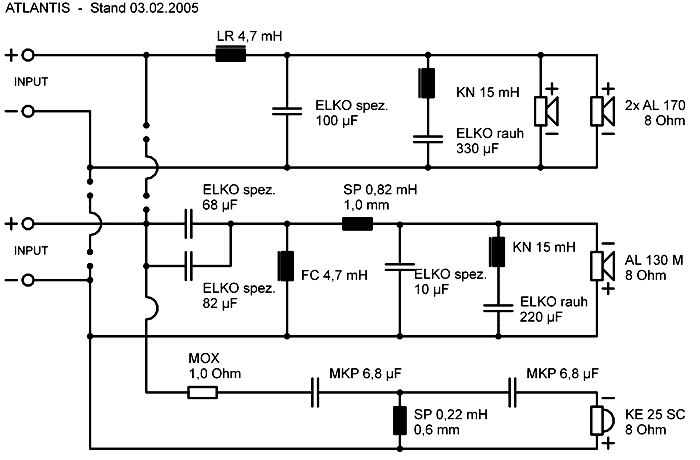

    Crossover - Supplied with Kit Already Assembled

    Speaker Kit Crossover Circuit
    Speaker Kit Crossover Circuit
