Aria Speaker Kit

Thumbnail Filmstrip of Aria Speaker Kit Images

    Purchase Aria Speaker Kit

    SKU: V-5945-Aria Aria Speaker Kit

    $695.00 each without cabinets
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Kit - Aria
    Art. No. 5945

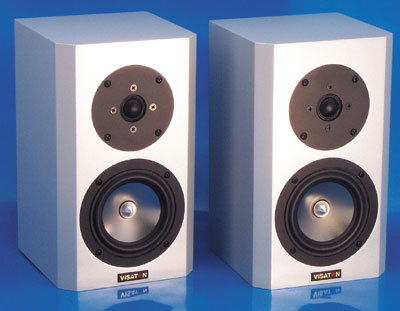

    Visaton Aria - shown assembled with suggested cabinets, not supplied.
    Visaton Aria - shown assembled with suggested cabinets, not supplied.



    Characteristics and Sound Properties
    The ARIA is a small-sized 2-band shelf-top speaker system that uses the TI 100 8 Ohm high-end mid-bass unit and the G 20 SC 8 Ohm dome tweeter. The unit is equally well suited to life as a satellite in a straightforward stereo system or for use in a multichannel set-up. It can be combined with larger speakers such as the VOX 200 where it takes over the centre or effect role or a full set of them can be used to cover all channels. The lower limiting frequency is at 75 Hz, i.e. deep-bass should be left to an active subwoofer and the satellites will need protecting with a high-pass section or, in multichannel systems, they should be run in small mode.

    If the speakers are positioned right by the wall or in a shelving unit, the bass reflex tube will be partly damped or completely stifled, which can compensate for excessively boosted bass.

    Extract from Klang & Ton: "... The smaller version of the ARIA, fitted with only a single cone driver, made a lively, dynamic impression but was also well able, like the larger version, to differentiate finer detail, which was more than we expected. Both of them retained crisp reproduction quality and never left one with the impression that the music was a two-dimensional screen, a particularly important feature when voices are up-front."
    "One should not, however, expect what is commonly referred to as deep bass. But coupled with an active subwoofer, these two systems produced such high quality sound that they can easily compete with high-end products costing several times this price."
    "These two new VISATON constructions are really hot business if what you're after is high-quality, build-it-yourself compact loudspeakers. The fact that the series includes a dipole variant makes these two the foundation stones of a top-grade surround system."



    Technical Specifications

    Rated power 40 W
    Maximum power 60 W
    Nominal impedance Z 8 Ohm
    Frequency response 75-30000 Hz
    Mean sound pressure level 84 dB (1W/1m)
    Cut-off frequency 2500 Hz
    Principle of Housing Bassreflex
    Net volume 3.8 litres
    Outer dimension height 270 mm
    Outer dimension width 160 mm
    Outer dimension depth 160 mm

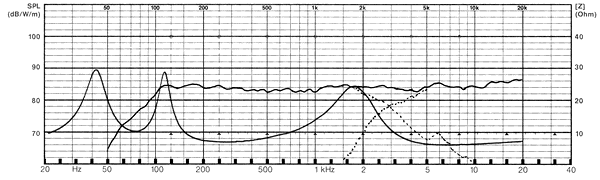

    Frequency and Impedance Response

    Frequency Response and Impedance Graph
    Frequency Response and Impedance Graph

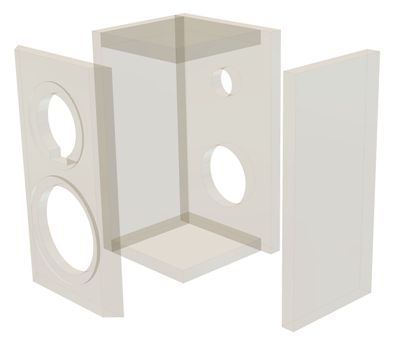

    Exploded Cabinet Drawing

    Exploded Speaker Box Drawing
    Exploded Speaker Box Drawing



    Assembly
    The cabinet body uses 16 mm boards. First of all, cut the holes in the boards and apply the bevels. This can be done using an electric jigsaw or hand-held circular saw set to the required angle. Once the cabinet has been completed, apply the milling work for the loudspeaker. Finally, fit the cones.

    Since the cabinets are relatively small, it is hardly possible to mount the crossover inside the housing. It can, however, simply be wrapped in damping material and placed inside the speaker if the rear wall is not removable.



    Internal Damping
    The damping material is loosely arranged in the cabinet.



    Component Parts List for Each Box - Supplied with Kit
    The kit comes with all necessary components (see list below for one box), one set if the speaker is an each, or two sets for a pair, see price above for details.

    Tweeter G 20 SC - 8 Ohm 1 pc.
    Woofer TI100 - 8 Ohm 1 pc.
    Crossover Aria 1 pc.
    Bass reflex tube BR 6.8 (Full Length) 1 pc.
    Terminal ST 77 1 pc.
    Damping material Polyester wool 0.25 bags
    Wood screws 3.5 x 19 mm 4 pcs.
    Countersunk screws 3.5 x 25 mm 8 pcs.
    Cable 2 x 1.5 mm² 0.75 m



    Speaker Cabinet Material List to Make 1 Box - Not Supplied with Kit

    Parts for One Box (not supplied) Size (mm) Quantity
    Material: 16 mm chipboard or MDF recommended
    Front and rear panel 270 x 160 2
    Side panel 270 x 128 2
    Top and bottom panel 128 x 128 2

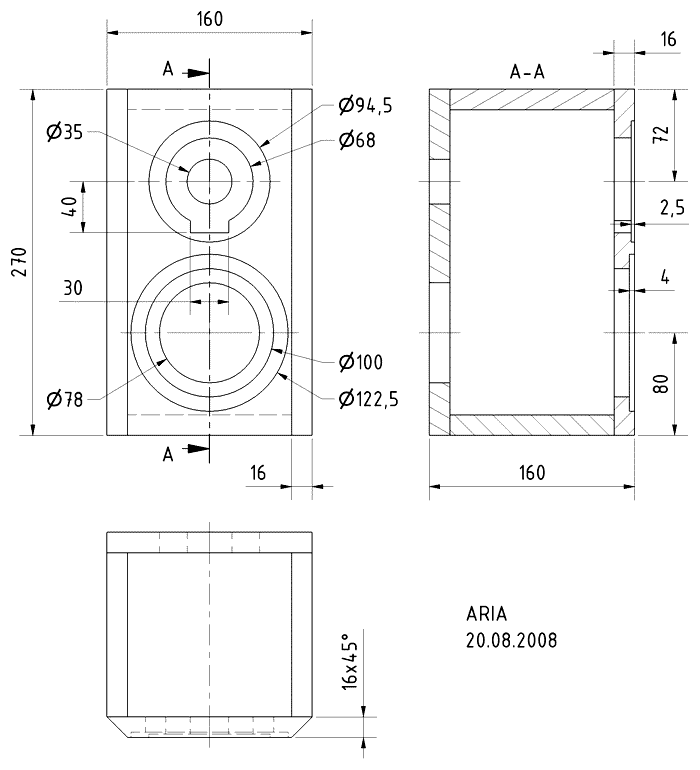

    Speaker Cabinet Dimensions

    Loudspeaker Box Construction Diagram - all dimensions in mm.
    Loudspeaker Box Construction Diagram - all dimensions in mm.

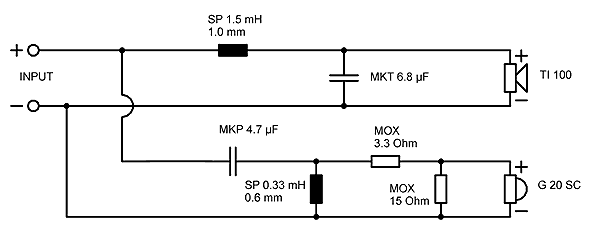

    Crossover - Supplied with Kit Already Assembled

    Speaker Kit Crossover Circuit
    Speaker Kit Crossover Circuit
