Aria Dipol 1 Speaker Kit

Thumbnail Filmstrip of Aria Dipol 1 Speaker Kit Images

    Purchase Aria Dipol 1 Speaker Kit

    SKU: V-5944-Aria-Dipol1 Aria Dipol 1 Speaker Kit

    $1,175.00 per pair without cabinets
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Kit - Aria Dipol 1
    Art. No. 5944

    Visaton Aria Dipol 1 - shown assembled with suggested cabinets, not supplied.
    Visaton Aria Dipol 1 - shown assembled with suggested cabinets, not supplied.



    Characteristics and Sound Properties
    The ARIA DIPOL 1 is intended specifically as an effect speaker for the rear channels in multichannel systems. It unites two concepts: It can be used in both dipole and direct modes. By activating the two outer tweeters, something approaching the dipole effect is achieved, i.e. a diffused sound field. At the same time, the centre tweeter is deactivated. This solution cannot achieve the perfect diffused field of a full dipole set-up, which uses twin cones in the bass department as well, but it does represent a good, value-for-money compromise.

    ARIA DIPOL 1 speakers can be combined wither with the other members of the ARIA family or with larger speakers such as the VOX 200.

    Extract from Klang & Ton: "In contrast, the Arias demonstrated liveliness and a fine understanding for the subtleties of the film soundtracks. They are, however, robust enough to belt it out, if the need be."
    "The two dipoles interface seamlessly with the music experience and ensure that the combination achieves impressive homogeneity. Once again, it became abundantly clear that the sound characteristics of all the speakers in a surround set are of crucial importance, as demonstrated adequately by the Aria combination."
    "Visaton's surround set based on the Aria speakers has unmistakably set them apart from the crowd. Despite its compact size, the set has the power and control to make a real impact."



    Technical Specifications

    Rated power 40 W
    Maximum power 60 W
    Nominal impedance Z 8 Ohm
    Frequency response 75-30000 Hz
    Mean sound pressure level 84 dB (1W/1m)
    Cut-off frequency 2500 Hz
    Principle of Housing Bassreflex
    Net volume 4.5 litres
    Outer dimension height 270 mm
    Outer dimension width 260 mm
    Outer dimension depth 121 mm

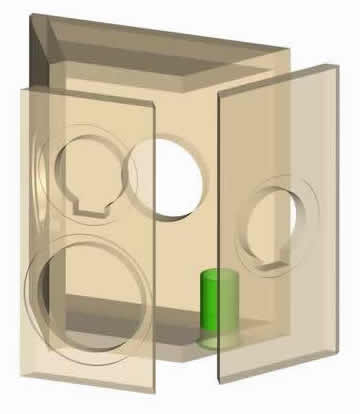

    Exploded Cabinet Drawing

    Exploded Speaker Box Drawing
    Exploded Speaker Box Drawing



    Assembly
    The cabinet body uses 16 mm boards. First of all, cut the holes in the boards and apply the bevels. This can be done using an electric jigsaw or hand-held circular saw set to the required angle. Once the cabinet has been completed, apply the milling work for the loudspeaker. Finally, fit the cones.

    Since the cabinets are relatively small, it is hardly possible to mount the crossover inside the housing. It can, however, simply be wrapped in damping material and placed inside the speaker if the rear wall is not removable.

    An optional (not supplied) switch should be wired to the crossover and mounted in an accessible position.



    Internal Damping
    The damping material is loosely arranged in the cabinet.



    Component Parts List for Each Box - Supplied with Kit
    The kit comes with all necessary components (see list below for one box), one set if the speaker is an each, or two sets for a pair, see price above for details.

    Tweeter G 20 SC - 8 Ohm 3 pcs.
    Woofer TI 100 - 8 Ohm 1 pc.
    Crossover Aria Dipol 1 1 pc.
    Bass reflex tube BR 6.8 (Full length) 1 pc.
    Terminal ST 77 1 pc.
    Damping material Polyester wool 0.25 bag
    Wood screws 3.5 x 19 mm 4 pcs.
    Countersunk screws 3.5 x 25 mm 16 pcs.
    Cable 2 x 1.5 mm² 1.25 m



    Speaker Cabinet Material List to Make 1 Box - Not Supplied with Kit

    Parts for One Box (not supplied) Size (mm) Quantity
    Material: 16 mm chipboard or MDF recommended
    Front 270 x 130 1
    Side panel 270 x 140 2
    Rear panel 270 x 233 1
    Top and bottom panel 215 x 89.2 2



    Speaker Cabinet Dimensions

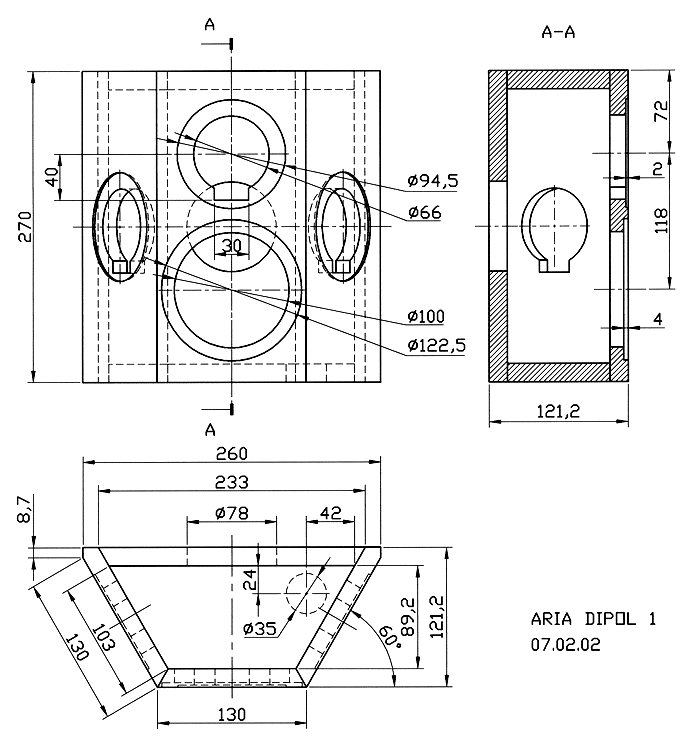

    Loudspeaker Box Construction Diagram - all dimensions in mm.
    Loudspeaker Box Construction Diagram - all dimensions in mm.



    Crossover - Supplied with Kit Already Assembled

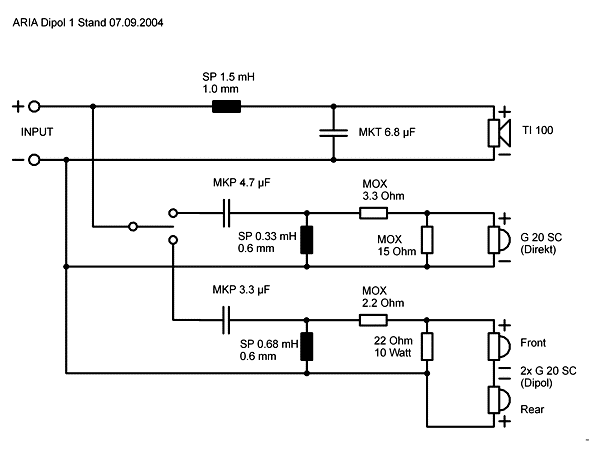

    Speaker Kit Crossover Circuit
    Speaker Kit Crossover Circuit
