    Visaton Speaker Kit - MB 208/H
    Art. No. 5931

    Visaton MB 208/H - shown assembled with suggested cabinets, not supplied.
    Visaton MB 208/H - shown assembled with suggested cabinets, not supplied.



    Characteristics and Sound Properties
    The MB 208/H is a compact, high-output speaker. It is equipped with two high-efficiency 20 cm fullrange BG 20 - 8 Ohm 's, working in parallel, and the HTH 8.7 - 8 Ohm tweeter. Apart from being ideal as a monitor speaker for vocals and instruments, in smallish to medium-sized rooms, it is also a good candidate for combining with a good subwoofer (e.g. MB 115/B ) for larger PA events.

    As a result of the d'Appolito arrangement, less sound is dissipated upwards and downwards. This directional advantage reduces the amount of ceiling and floor reflection in large halls, and will result in better voice transmission and less tendency to feedback. The sound quality of the MB208/H is extremely high. The sound imbalance often experienced with musicians systems is missing here. In conjunction with the MB 115/B, there is no reason why hi-fi sound quality should not be achieved.

    The compact design makes it ideal for transport.

    Extract from Hobby HiFi: "Verdict: This combination of 208/H and 115/B provides excellent sound properties at hi-fi level, and with masses of dynamic power in reserve. Thanks to the high efficiency level, even a 100-watt amplifier will provide the enough power - calculations show that this would produce a maximum output of 113 dB, even if a more powerful booster will make even more sense of both the satellites and the bass."



    Technical Specifications

    Nominal power handling with high pass 200 W
    Peak power handling with high pass 300 W
    Rated power 80 W
    Maximum power 140 W
    Nominal impedance Z 4 Ohm
    Frequency response 85-20000 Hz
    Mean sound pressure level 94 dB (1W/1m)
    Cut-off frequency 4500 Hz
    Principle of Housing Closed
    Net volume 23 litres
    Outer dimension height 640 mm
    Outer dimension width 240 mm
    Outer dimension depth 240 mm



    Frequency and Impedance Response

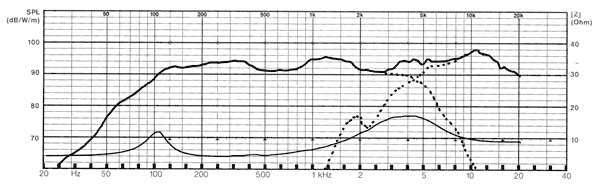

    Frequency Response and Impedance Graph
    Frequency Response and Impedance Graph



    Exploded Cabinet Drawing

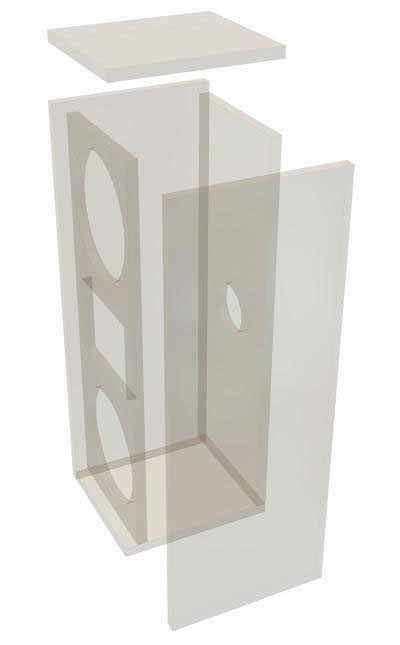

    Exploded Speaker Box Drawing
    Exploded Speaker Box Drawing



    Assembly
    First, cut the openings for the drivers in the front panel. The boards are then simply glued together (butt-joints) as shown in the parts list, with the front panel set back a little. The crossover is attached at the rear of the cabinet behind one of the bass vents.



    Internal Damping
    The damping of the cabinet uses two mats of damping material rolled loosely and pushed into the cabinet through a bass opening.



    Component Parts List for Each Box - Supplied with Kit
    The kit comes with all necessary components (see list below for one box), one set if the speaker is an each, or two sets for a pair, see price above for details.

    Tweeter HTH 8.7 - 8 Ohm 1 pc.
    Woofer BG 20 - 8 Ohm 2 pc.
    Crossover MB 208/H 1 pc.
    Terminal ST 77 1 pc.
    Damping material Polyester wool 1 bag
    Wood screws 3.5 x 19 mm 8 pcs.
    Wood screws 4 x 20 mm 8 pcs.
    Countersunk screws 3.5 x 25 mm 4 pcs.
    Cable 2 x 1.5 mm² 2 m



    Speaker Cabinet Material List to Make 1 Box - Not Supplied with Kit

    Parts for One Box (not supplied) Size (mm) Quantity
    Material: 16 mm chipboard or MDF recommended
    Front and rear panel 608 x 208 2
    Side panels 240 x 208 2
    Top and bottom panel 240 x 640 2



    Speaker Cabinet Dimensions

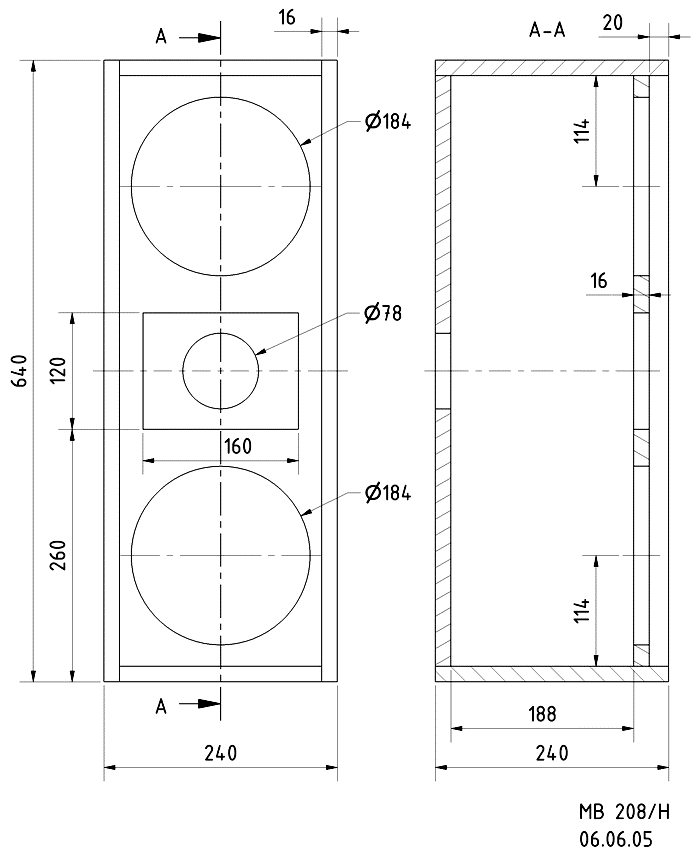

    Loudspeaker Box Construction Diagram - all dimensions in mm.
    Loudspeaker Box Construction Diagram - all dimensions in mm.



    Crossover - Supplied with Kit Already Assembled

    Speaker Kit Crossover Circuit
    Speaker Kit Crossover Circuit
