Couplet Light Speaker Kit

Thumbnail Filmstrip of Couplet Light Speaker Kit Images

    Purchase Couplet Light Speaker Kit

    SKU: V-5928-Couplet-Light Couplet Light Speaker Kit

    $925.00 per pair without cabinets - special order
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Kit - Couplet Light
    Art. No. 5928

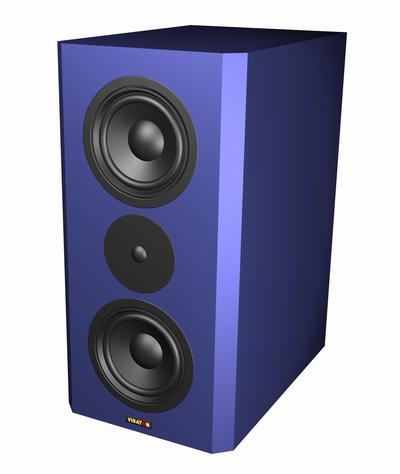

    Visaton Couplet Light - shown assembled with suggested cabinets, not supplied.
    Visaton Couplet Light - shown assembled with suggested cabinets, not supplied.



    Characteristics and Sound Properties
    The COUPLET LIGHT is a compact D Appolito configuration shelf speaker. It can be used as a shelf-top speaker or mounted on free-standing supports. In contrast to the original COUPLET, this system uses two W 130 S - 8 OHM as woofers. The tweeter and the cabinet design with its flow-optimised BR 25.50 bass reflex tube have been taken over unchanged.

    The result is a speaker that maintains its linear characteristics right across the frequency range. Due to the well balanced medium range, the fine details of music reproduction, in particular, comes across particularly clearly. The excellent omnidirectional sound distribution creates a particularly room-filling music reproduction and clear location of each individual instrument or voice. The lowest-range bass comes across equally powerfully. In short, the COUPLET LIGHT is a speaker that is really good fun.



    Technical Specifications

    Rated power 100 W
    Maximum power 160 W
    Nominal impedance Z 4 Ohm
    Frequency response 40-30000 Hz
    Mean sound pressure level 83 dB (1W/1m)
    Cut-off frequency 3500 Hz
    Principle of Housing Bassreflex
    Net volume 25 litres
    Outer dimension height 460mm
    Outer dimension width 235 mm
    Outer dimension depth 350 mm



    Frequency and Impedance Response

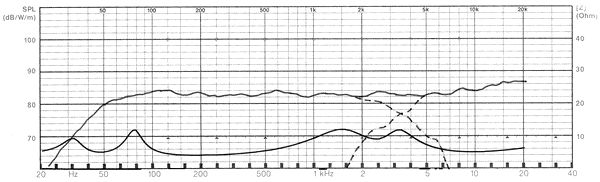

    Frequency Response and Impedance Graph
    Frequency Response and Impedance Graph

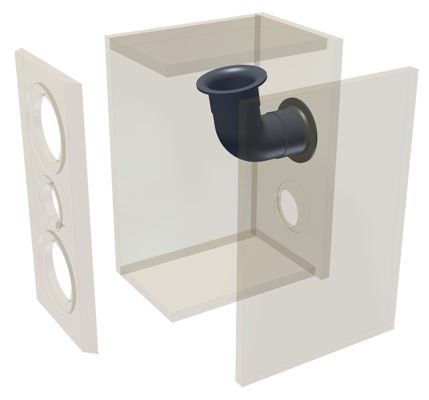

    Exploded Cabinet Drawing

    Exploded Speaker Box Drawing
    Exploded Speaker Box Drawing



    Assembly
    All the cabinet panels are cut from 19 mm chipboard or medium density fibreboard, butt-jointed and glued. The chamfers on the baffle can be applied with a power jig or circular saw set to 45° or applied later using an orbital sander. Next, cut out the openings for the drivers, the bass reflex tube and the terminals.

    Due to the small size of the cut-outs in the baffle, it is difficult to mount the crossover inside the speaker cabinet. It would be possible to make the base removable. However, it is easier to wrap the crossover in damping material and place it through the lower cut-out in the baffle on the floor of the cabinet. When you begin fitting the drivers, start with the bass reflex tube. In order to be able to get the inner trumpet flange through the opening for the upper subwoofer it will be necessary to carefully remove about 5 mm from both sides of the flange.



    Internal Damping
    he damping material is loosely arranged below the bass reflex tube in the cabinet in such a way that the area around the vent remains free.



    Component Parts List for Each Box - Supplied with Kit
    The kit comes with all necessary components (see list below for one box), one set if the speaker is an each, or two sets for a pair, see price above for details.

    Tweeter G 20 SC - 8 Ohm 1 pc.
    Woofer W 130 S - 8 Ohm 2 pc.
    Crossover Crossover Couplet Light 1 pc.
    Bass reflex tube BR 25.50 (full length) 1 pc.
    Terminal ST 77 1 pc.
    Damping material Polyester wool 1 bag
    Wood screws 3.5 x 19 mm 4 pcs.
    Countersunk screws 3.5 x 25 mm 18 pcs.
    Cable 2 x 1.5 mm² 1.5 m



    Speaker Cabinet Material List to Make 1 Box - Not Supplied with Kit

    Parts for One Box (not supplied) Size (mm) Quantity
    Material: 19 mm chipboard or MDF recommended
    Front and rear panel 460 x 235 2
    Side panel 460 x 312 2
    Top and bottom panel 197 x 312 2



    Speaker Cabinet Dimensions

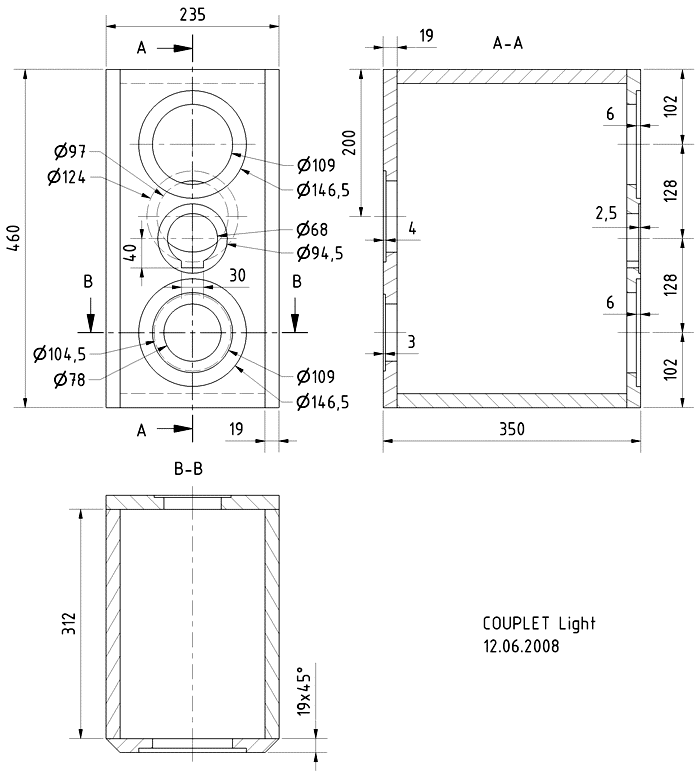

    Loudspeaker Box Construction Diagram - all dimensions in mm.
    Loudspeaker Box Construction Diagram - all dimensions in mm.



    Crossover - Supplied with Kit Already Assembled

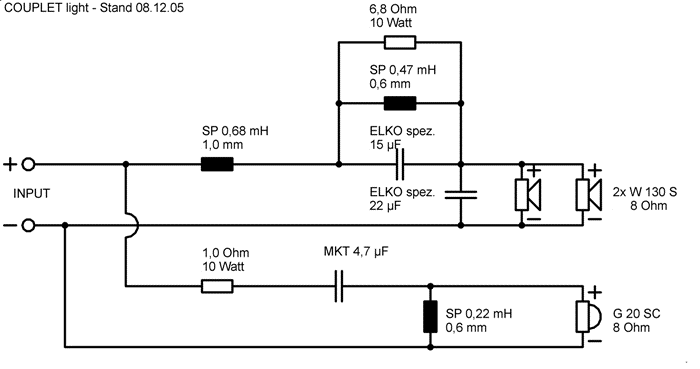

    Speaker Kit Crossover Circuit
    Speaker Kit Crossover Circuit
