VIB 2000 GF Speaker Kit

Thumbnail Filmstrip of VIB 2000 GF Speaker Kit Images

    Purchase VIB 2000 GF Speaker Kit

    SKU: V-5906-VIB2000-GF VIB 2000 GF Speaker Kit

    $1,375.00 per pair without cabinets
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Kit - VIB 2000 GF
    Art. No. 5906

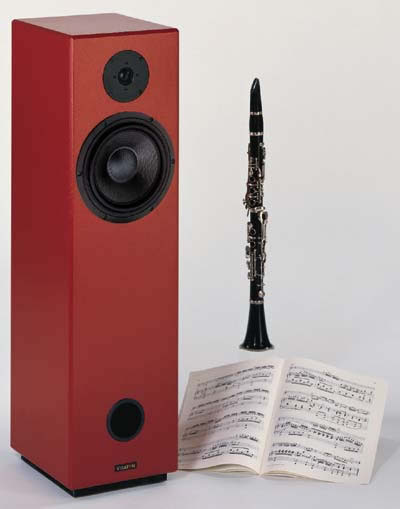

    Visaton VIB 2000 GF (accessories not included) - shown assembled with suggested cabinets, not supplied.
    Visaton VIB 2000 GF (accessories not included) - shown assembled with suggested cabinets, not supplied.



    Characteristics and Sound Properties
    The VIB 2000 GF is the logical development of one of the most popular column cabinets in the field of D.I.Y. speakers - the VISATON VIB. The concept of the 2-way enclosure in a 45 litre vented cabinet has been retained, but the drivers used are different, and the crossover unit has been reappraised to suit. In the low- to mid-range we have the GF 200 - 2 x 4 Ohm, whose fibre glass cone can produce a big stroke and thus is good for powerful low-range bass even at higher volume levels. The parallel resonant circuit before the low pass unit compensates for the rise in the mid-range of the 200 mm cone drive and guarantees a linear and coloration-free frequency response until the tweeter takes over at around 2.5 kHz. The 18 dB high-pass section links in the 25 mm G 25 FFL - 8 Ohm textile dome unit.

    The VIB 2000 GF produces remarkably vivid, precise bass output at the lowest frequencies, linear mid-range sound, spatially separated from the speakers themselves and a smooth, finely sketched high-frequency range.



    Technical Specifications

    Rated power 80 W
    Maximum power 110 W
    Nominal impedance Z 8 Ohm
    Frequency response 35-30000 Hz
    Mean sound pressure level 86 dB (1W/1m)
    Cut-off frequency 2500 Hz
    Principle of Housing Bassreflex
    Net volume 45 litres
    Outer dimension height 919 mm
    Outer dimension width 248 mm
    Outer dimension depth 296 mm



    Frequency and Impedance Response

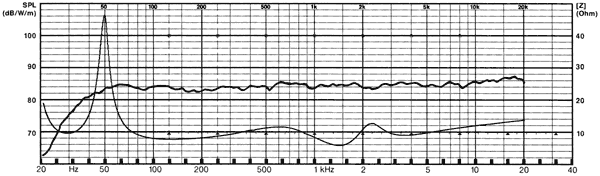

    Frequency Response and Impedance Graph
    Frequency Response and Impedance Graph

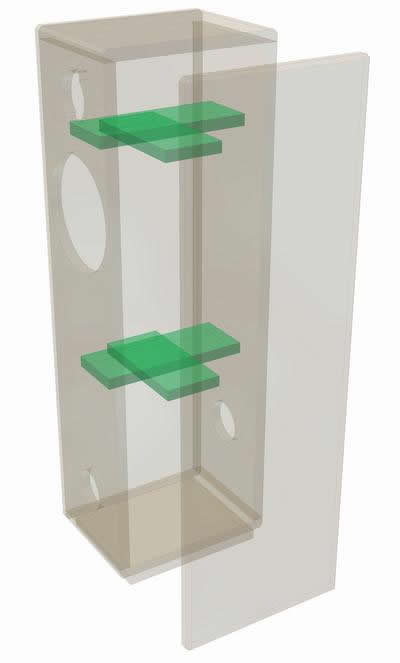

    Exploded Cabinet Drawing

    Exploded Speaker Box Drawing
    Exploded Speaker Box Drawing



    Assembly
    The circular cut-out (73 mm ø) in the baffle is for the BR 15.34 tube. The 78 mm cut-out in the rear panel is for mounting the ST 77 terminals. The crossover unit is mounted on the panel behind the bass cut-out.



    Internal Damping

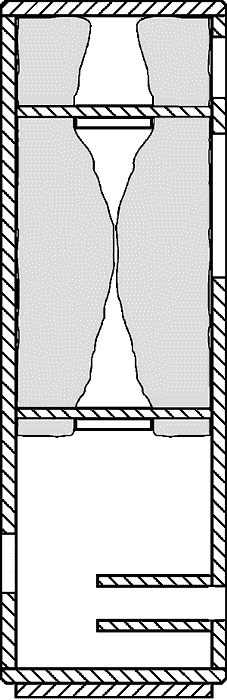

    The damping is a simple matter: as shown in the diagram further below, the four free square openings of the stiffening construction take one mat each, so that the upper part of the speaker cabinet is loosely filled. The lower part is left completely empty.



    Component Parts List for Each Box - Supplied with Kit
    The kit comes with all necessary components (see list below for one box), one set if the speaker is an each, or two sets for a pair, see price above for details.

    Tweeter G 25 FFL - 8 Ohm 1 pc.
    Low-midrange driver GF 200 - 2 x 4 Ohm 1 pc.
    Crossover VIB 2000 GF 1 pc.
    Bass reflex tube BR 15.34 (full length) 1 pc.
    Terminal ST 77 1 pc.
    Damping material Polyester wool 2 bags
    Wood screws 4 x 20 mm 6 pcs.
    Countersunk screws 3.5 x 25 mm 8 pcs.
    Cable 2 x 1.5 mm² 2 m



    Speaker Cabinet Material List to Make 1 Box - Not Supplied with Kit

    Parts for One Box (not supplied) Size (mm) Quantity
    Material: 19 mm chipboard or MDF recommended
    Front and rear panel 210 x 862 2
    Side panels 900 x 296 2
    Top and bottom panel 210 x 296 2
    Brace 210 x 100 2
    Brace 258 x 100 2
    Base panel 258 x 210 1



    Speaker Cabinet Dimensions

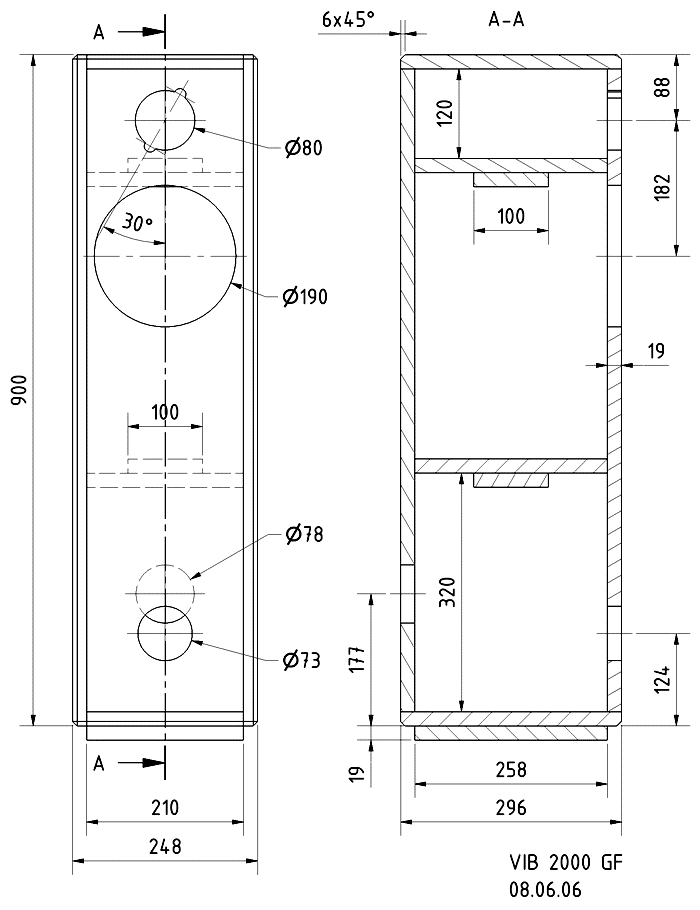

    Loudspeaker Box Construction Diagram - all dimensions in mm.

    Inner Damping VIB 2000 GF Speaker Kit Visaton


    Loudspeaker Box Construction Diagram - all dimensions in mm.



    Crossover - Supplied with Kit Already Assembled

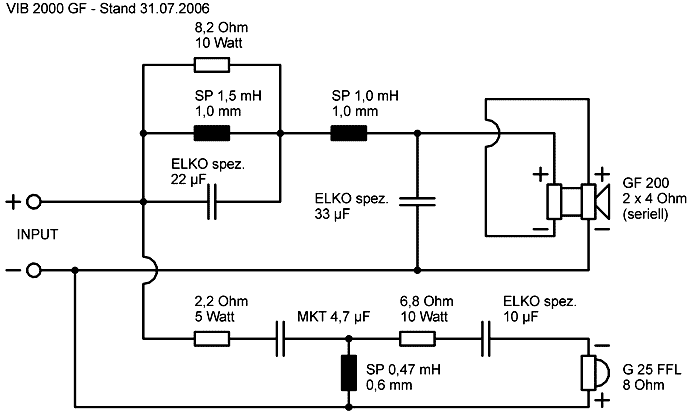

    Speaker Kit Crossover Circuit
    Speaker Kit Crossover Circuit
