    Visaton Speaker Kit - Quintett Light
    Art. No. 5893

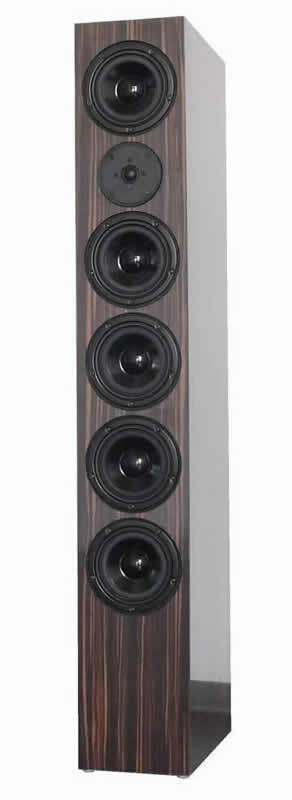

    Visaton Quintett Light - shown assembled with suggested cabinets, not supplied.
    Visaton Quintett Light - shown assembled with suggested cabinets, not supplied.



    Characteristics and Sound Properties
    Just as the light versions of VOX and COUPLET, the QUINTETT LIGHT is aimed at coming as close as possible to the outstanding sound quality of its "big sister", with substantial lower priced driver units.

    When listening to both the QUINTETT and the QUINTETT LIGHT, the direct comparison attests: Goal reached.

    The QUINTETT LIGHT is, as well as the QUINTETT, a high efficiency speaker with a very balanced frequency response. Only in terms of dynamics and maximum sound pressure level, the QUINTETT LIGHT cannot fully keep up with the outstanding performance of the QUINTETT.

    Anybody who is into the concept of the QUINTETT, but at a more favourable price, is well advised to take a closer look at the QUINTETT LIGHT.



    Technical Specifications

    Rated power 140 W
    Maximum power 200 W
    Nominal impedance Z 4 Ohm
    Frequency response 37-30000 Hz
    Mean sound pressure level 85 dB (1W/1m)
    Cut-off frequency 500 Hz / 4000 Hz
    Principle of Housing Bassreflex
    Net volume 5 litres + 51 litres
    Outer dimension height 1200 mm
    Outer dimension width 180 mm
    Outer dimension depth 380 mm

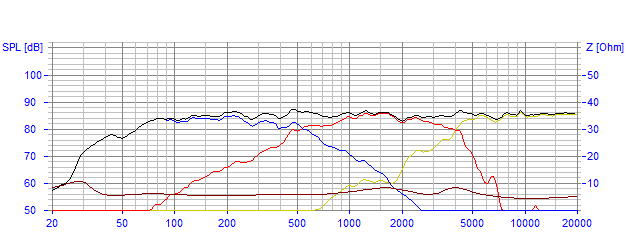

    Frequency and Impedance Response

    Frequency Response and Impedance Graph
    Frequency Response and Impedance Graph

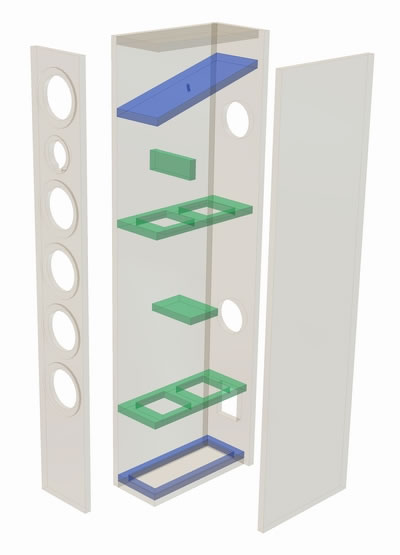

    Exploded Cabinet Drawing

    Exploded Speaker Box Drawing
    Exploded Speaker Box Drawing



    Assembly
    First, the 19 mm wood cabinet panels are butt-jointed and glued. To make construction easier, begin with the side panel. To this, glue the front panel, rear panel, lid and frame for the removable floor. The strengthening struts and dividers for the mid-ton camber can then be positioned and glued in place. The divider has to be bevelled as shown in the drawing and a hole (8 mm) drilled in it for the wires. Then the remaining side piece is glued in place and the floor screwed in place.

    To provide maximum visual impact and acoustic quality, the drivers should be countersunk so that they are flush. You will need a router and a corresponding circle cutting tool for this. Finally, the openings for the drivers and terminals are cut out.

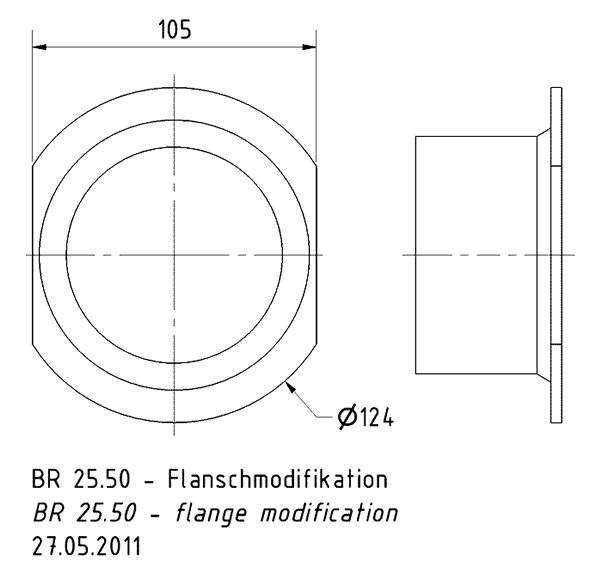

    It is not possible to fit the bass reflex tubes without modifying the opening. As a result, the edge of the inner opening will have to be cut on the left and right (as shown in the drawing) to enable it to be passed through the corresponding speaker opening.

    The bass crossover is attached to the removable floor while the mid-range to high crossover is fitted to the lower part of the front panel so that the PCBs are easily accessible later.

    The hole for the cables in the mid-range driver cabinet should be sealed later with hot-melt glue or a similar substance.

    Stability can be improved by fitting a larger base board whose design can be freely varied.



    Internal Damping
    The damping material is loosely arranged in the cabinet. Two mats are placed inside the mid-range housing while 6 mats are placed in the woofer spaces. The space behind the bass reflex tubes should remain free.



    Component Parts List for Each Box - Supplied with Kit
    The kit comes with all necessary components (see list below for one box), one set if the speaker is an each, or two sets for a pair, see price above for details.

    Tweeter G 20 SC - 8 Ohm 1 pc.
    Bass-midrange driver W 130 S - 8 Ohm 5 pc.
    Crossover Quintett Light 1 pc.
    Bass reflex tube BR 25.50 (modified) 2 pcs.
    Terminal BT 95/75 1 pc.
    Damping material Polyester wool 4 bags
    Special wood screws 4 x 20 mm 8 pcs.
    Countersunk screws 3.5 x 25 mm 33 pcs.
    Cable 2 x 2.5 mm² 7 m



    Speaker Cabinet Material List to Make 1 Box - Not Supplied with Kit

    Parts for One Box (not supplied) Size (mm) Quantity
    Material: 19 mm chipboard or MDF recommended
    Front and rear panel 1200 x 180 2
    Side panels 1200 x 342 2
    Top and bottom panel 142 x 342 2
    Mid-range bottom panel 142 x 380 1
    Braces (1) 142 x 342 2
    Brace (2) 142 x 100 1
    Brace (3) 142 x 60 1
    Bottom frame 142 x 342 1

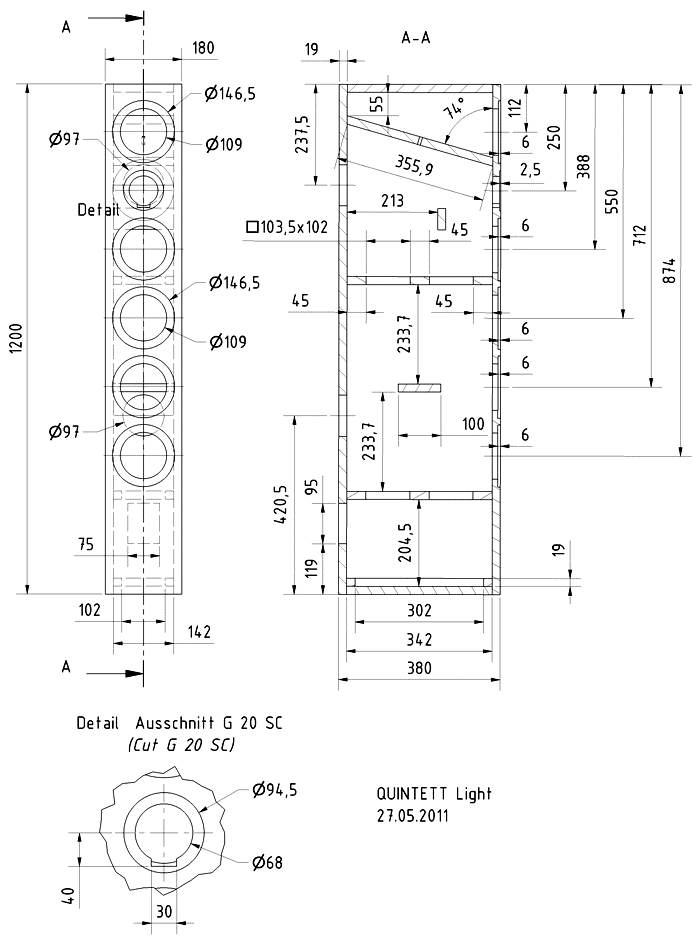

    Speaker Cabinet Dimensions

    Loudspeaker Box Construction Diagram - all dimensions in mm.

    Quntett Light Speak Kit Sketch


    Loudspeaker Box Construction Diagram - all dimensions in mm.

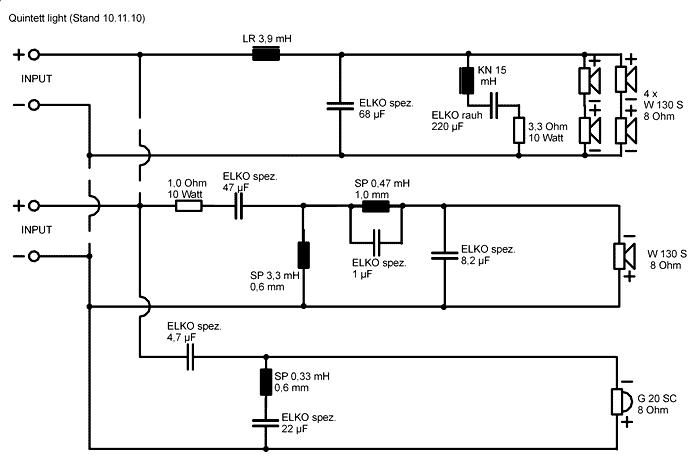

    Crossover - Supplied with Kit Already Assembled

    Speaker Kit Crossover Circuit
    Speaker Kit Crossover Circuit
