Bijou 170 Speaker Kit

Thumbnail Filmstrip of Bijou 170 Speaker Kit Images

    Purchase Bijou 170 Speaker Kit

    SKU: V-5889-Bijou-170 Bijou 170 Speaker Kit

    $895.00 each without cabinets
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Kit - Bijou 170
    Art. No. 5889

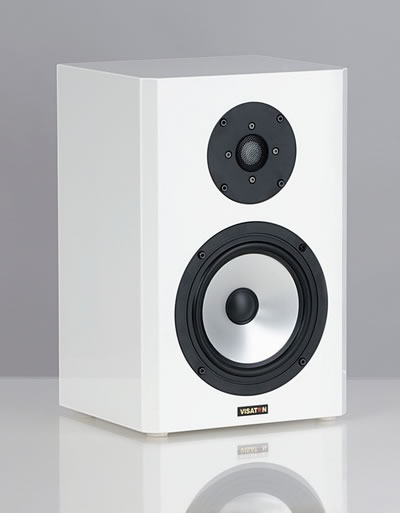

    Visaton Bijou 170 - shown assembled with suggested cabinets, not supplied.
    Visaton Bijou 170 - shown assembled with suggested cabinets, not supplied.



    Characteristics and Sound Properties
    The BIJOU 170 is a compact shelf-top speaker with high-end drivers as the original BIJOU. The AL 170 - 8 Ohm woofer in the closed 10.5 l case provides for a kick and exact bass which works well and without booming by mounting on a wall. This was reached by a slightly rising frequency response to about 1000 Hz, so that the BIJOU 170 should be used preferentially as a wall or shelf-mounted speaker.

    In this duet the high tone reproduction takes over the also well known ceramic tweeter KE 25 SC - 8 Ohm which is extremely rich in detail and exact in work.

    The BIJOU 170 is available as single version and can be used therefore e.g. as a centre speaker, but, of course, also as a front and effect loudspeaker in home cinema systems, supported by an additional subwoofer.



    Technical Specifications

    Rated power 70 W
    Maximum power 100 W
    Nominal impedance Z 8 Ohm
    Frequency response 50-20000 Hz
    Mean sound pressure level 85 dB (1W/1m)
    Cut-off frequency 3200 Hz
    Principle of Housing Closed
    Net volume 10.5 litres
    Outer dimension height 360 mm
    Outer dimension width 240 mm
    Outer dimension depth 200 mm



    Frequency and Impedance Response

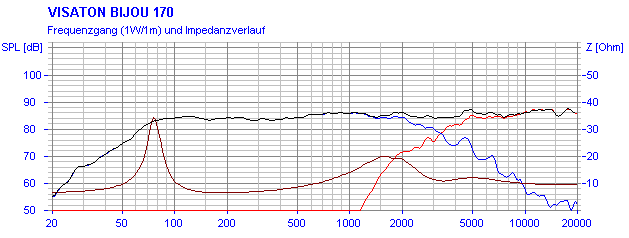

    Frequency Response and Impedance Graph
    Frequency Response and Impedance Graph

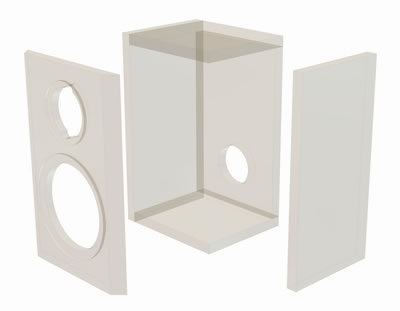

    Exploded Cabinet Drawing

    Exploded Speaker Box Drawing
    Exploded Speaker Box Drawing



    Assembly
    The case consists of straight panels glued edge to edge what makes the construction possibly easy. First the single panels (see cabinet parts list) are cut and glued together. The panel fixation succeeds with vices or package adhesive tape.

    That the panels can not slip together, e.g. stamped cut nail ends can be used as an anti-slide help. After the case is completely built up, the holes for loudspeakers and connection terminal can be milled and cut out. In the end the 45° bevels of the front panel can be attached either by a router or by a circular saw bench.

    To make the mounting of the crossover on the rear panel as simple as possible, the respectively holes should be pre-drilled (do not drill through).

    The last operation is the surface treatment, which means polishing, painting, veneering or bonding.



    Internal Damping
    The damping material should be pushed into the cabinet through the woofer hole and loosely arranged there.



    Component Parts List for Each Box - Supplied with Kit
    The kit comes with all necessary components (see list below for one box), one set if the speaker is an each, or two sets for a pair, see price above for details.

    Tweeter KE 25 SC - 8 Ohm 1 pc.
    Woofer AL170 - 8 Ohm 1 pc.
    Crossover Bijou 170 1 pc.
    Terminal ST 77 1 pc.
    Damping material Polyester wool 1 bag
    Cable 2 x 1.5 mm² 1m
    Special Wood screws 4.0 x 25 mm 8 pcs.
    Countersunk screws 3.5 x 25 mm 4 pcs.



    Speaker Cabinet Material List to Make 1 Box - Not Supplied with Kit

    Parts for One Box (not supplied) Size (mm) Quantity
    Material: 19 mm chipboard or MDF recommended
    Front panel 360 x 240 1
    Rear panel 322 x 202 1
    Side Panels 360 x 181 2
    Top and bottom panel 202 x 181 2



    Speaker Cabinet Dimensions

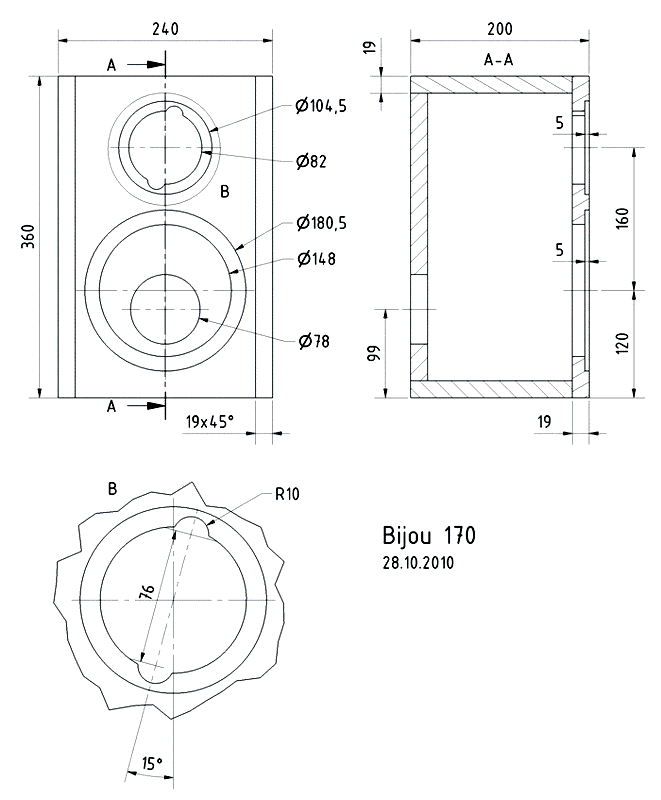

    Loudspeaker Box Construction Diagram - all dimensions in mm.
    Loudspeaker Box Construction Diagram - all dimensions in mm.



    Crossover - Supplied with Kit Already Assembled

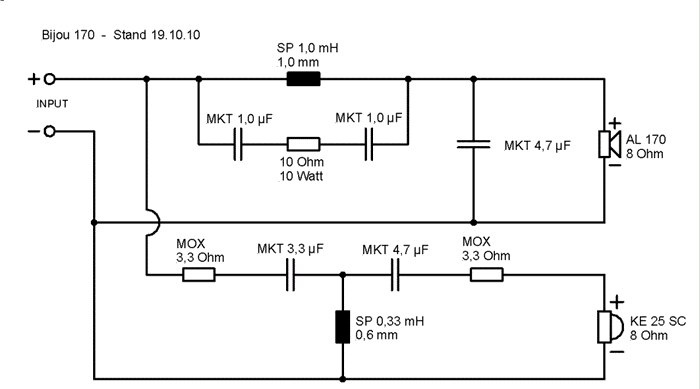

    Speaker Kit Crossover Circuit
    Speaker Kit Crossover Circuit
