Pentaton BB Speaker Kit

Thumbnail Filmstrip of Pentaton BB Speaker Kit Images

    Purchase Pentaton BB Speaker Kit

    SKU: V-5888-Pentaton-BB Pentaton BB Speaker Kit

    $2,795.00 per pair without cabinets
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Kit - Pentaton BB
    Art. No. 5888

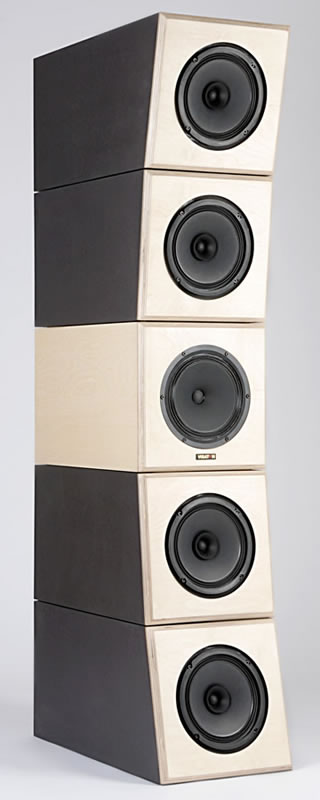

    Visaton Petanton BB - shown assembled with suggested cabinets, not supplied.
    Visaton Pentaton BB - shown assembled with suggested cabinets, not supplied.



    Characteristics and Sound Properties
    Full-range loudspeakers are enjoying another comeback and arousing increased interest, embodying, as they do, everything that a point sound source should be. Large full-range loudspeakers like the B 200 - 6 Ohm have the additional characteristic of transmitting the sound in a tightly bundled beam, which produces a very tangible, three-dimensional effect and allows individual instruments to be easily located. A drawback of the system, however, is that this beaming process and the sensitivity are reduced at lower frequencies. The PENTATON BB was developed specifically as a cabinet based on the legendary B 200 - 6 Ohm but designed to compensate for these two disadvantages.

    In a similar way to the QUADRO, additional full-range drivers are switched in to supplement the central driver, which is connected direct to the amplifier without an intervening filter, as the frequencies go down the scale. This allows the B 200 - 6 Ohm to develop its full potential with none of the impairments caused by frequency-dependent signal-carrying components, while the BG 20 - 8 Ohms, that are optimised for low-frequency response, maintain the extremely high sensitivity and beaming effect right down to the bass range. The additional full-range drivers are arranged symmetrically in two groups around the main speaker, which again creates an acoustic focus in the centre of the speaker cabinet. On top of this, the baffles in enclosures 2 and 4 and in enclosures 1 and 5 are angled inwards by 6° and 12° respectively. This feature guarantees that, assuming a typical listening distance of approx. 3 m, each of the drivers is exactly the same distance away from the ear and at the same angle. Given the size of these speaker cabinets, this is the only way to ensure that the phases of all the drivers are in sync across the entire frequency range.

    The result of all these characteristics taken together is a sound image of the stage that could hardly be clearer or more precise. Even baritone male voices and large instruments such as the double bass or bassoon appear to be present full-size, in the right place on the virtual stage and in tangible 3D. Thanks to the enormous diaphragm area and the low moving mass, the PENTATON BB transforms dynamic jumps in the recording decisively and seamlessly into sound pressure and, with its superior handling, encourages the listener to increase the volume level until it is physically felt and yet it never becomes obtrusive or laboured.

    And yet, this is definitely a speaker for connoisseurs of lower volumes. Even at low output levels, the overall sound quality is tangible and mature so that every tiny musical detail, however small, is projected audibly without the slightest distortion. The frequency response is remarkably linear for a loudspeaker of this kind, which is why the PENTATON BB is ideal for the authentic reproduction of every genre of music without restriction and will allow the listener to rediscover even old favourites thanks to its analytical and highly detailed approach.

    Thanks to its high sensitivity and uniform impedance curve, the PENTATON BB is predestined for use in connection with high-grade tube amplifiers with relatively low output wattages.

    Extract from Klang & Ton: “The warmth and presence with which the instruments, in particular acoustic ones, were reproduced, were fantastic. The speakers show their spatial qualities to the best when the recordings are of high quality: it is as if the air were to take on the characteristics of solid matter, that's how accurately the instruments and voices can be located. Energetic sound reproduction is another key issue: due to their enormous dynamic capabilities, the Pentaton speakers can easily deal with any genre of music – even electronically produced deep bass pulses do not make it flinch. In terms of depth, what we measured backed up what we heard – what we couldn't measure, though, was the unique bass quality of the cones which were able to generate an amazingly light-footed but clearly defined bass range – that's the way it should be! And if you're not afraid to turn up the volume control, the Pentaton will show you that a firmly plucked guitar string can, indeed, generate sympathetic vibrations in your gut region. It can be said that the size of these speakers is fully in tune with the audiophile quality of their output.

    Conclusion: Visaton's Pentaton is a speaker that will get you hooked. With harmony and balance on the one side and precision and dynamism on the other, these characteristics blend to make a speaker that is quite fantastic and which, to top it all, is more capable than most of being connected to a valve amplifier.”



    Technical Specifications

    Rated power 70 W
    Maximum power 130 W
    Nominal impedance Z 4 Ohm
    Frequency response 40-18000 Hz
    Mean sound pressure level 99 dB (2.83V/1m)
    Cut-off frequency 1600 Hz / 9500 Hz
    Principle of Housing Closed
    Net volume 200 litres (38 litres + 2 x 39 litres + 2 x 42 litres)
    Outer dimension height 1557 mm
    Outer dimension width 315 mm
    Outer dimension depth max. 634 mm



    Frequency and Impedance Response

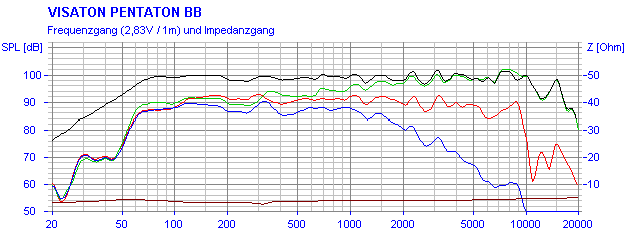

    Frequency Response and Impedance Graph
    Frequency Response and Impedance Graph

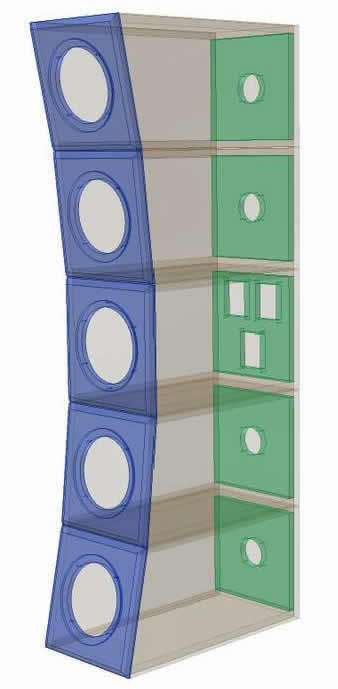

    Exploded Cabinet Drawing

    Exploded Speaker Box Drawing
    Exploded Speaker Box Drawing



    Assembly
    Thanks to the modular design, building the PENTATON BB is remarkably easy. The only point where it is essential to have the right tools or the help of a cabinet maker is for the bevels and angled edges. In particular for enclosures 1 & 5 and 2 & 4, it is crucial to ensure that the front edges of the base and lid are given their proper angles of 12° and 6° to ensure that the baffle is a flush fit. Apart from this, all ten enclosures are butt-glued, beginning with a side wall. The baffle must be glued in place last and must be a flush fit.



    Internal Damping
    4 mats of the damping material are to be evenly arranged in each cabinet.



    Component Parts List for Each Box - Supplied with Kit
    The kit comes with all necessary components (see list below for one box), one set if the speaker is an each, or two sets for a pair, see price above for details.

    Full-range speaker B 200 - 6 Ohm 1 pc.
    Full-range speaker BG 20 - 8 Ohm 4 pcs.
    Crossover Pentaton BB 1 pc.
    Terminal BT 95/75 3 pcs.
    Terminal ST 77 4 pcs.
    Damping material Polyester wool 10 bags
    Special wood screws 5 x 30 mm 22 pcs.
    Countersunk screws 3.5 x 25 mm 28 pcs.
    Cable 2 x 2.5 mm² 7.5 m



    Speaker Cabinet Material List to Make 1 Box - Not Supplied with Kit

    Parts for One Box (not supplied) Size (mm) Quantity
    Material: 19 mm chipboard or MDF recommended
    Side panel cabinet 520 x 315 2
    Side panel cabinet 553 x 313 4
    Side panel cabinet 619 x 308 4
    Bottom/top panel cabinet 3 520 x 277 2
    Bottom panel cabinet 2 + 4 553 x 277 2
    Bottom panel cabinet 1 + 5 619 x 277 2
    Top panel cabinet 2 + 4 522 x 277 2
    Top panel cabinet 1 + 5 557 x 277 2
    Rear panel cabinet 3 277 x 277 1
    Rear panel cabinet 2 + 4 275 x 277 2
    Rear panel cabinet 1 + 5 270 x 277 2
    Baffle 1-5 315 x 315 5



    Speaker Cabinet Dimensions

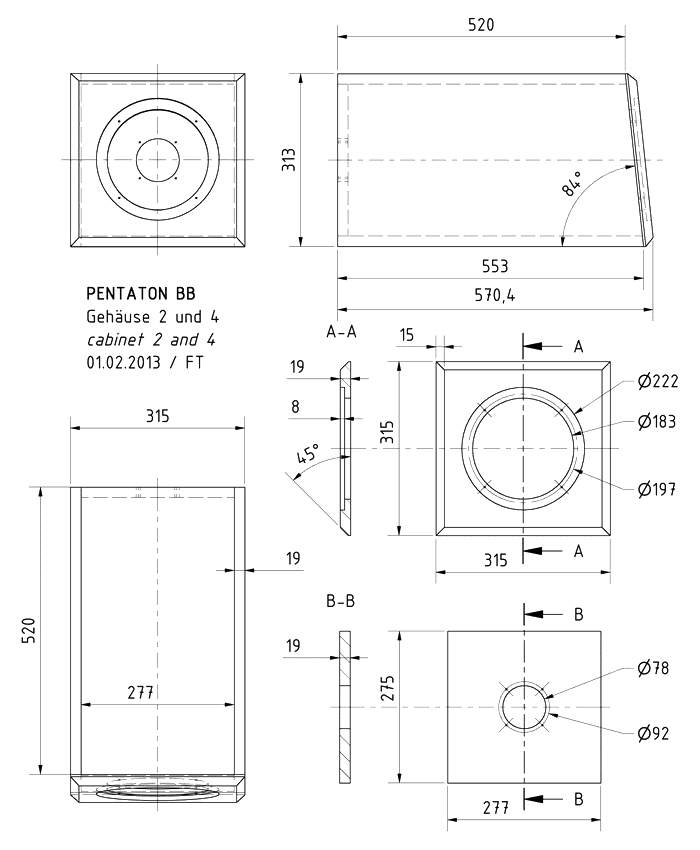

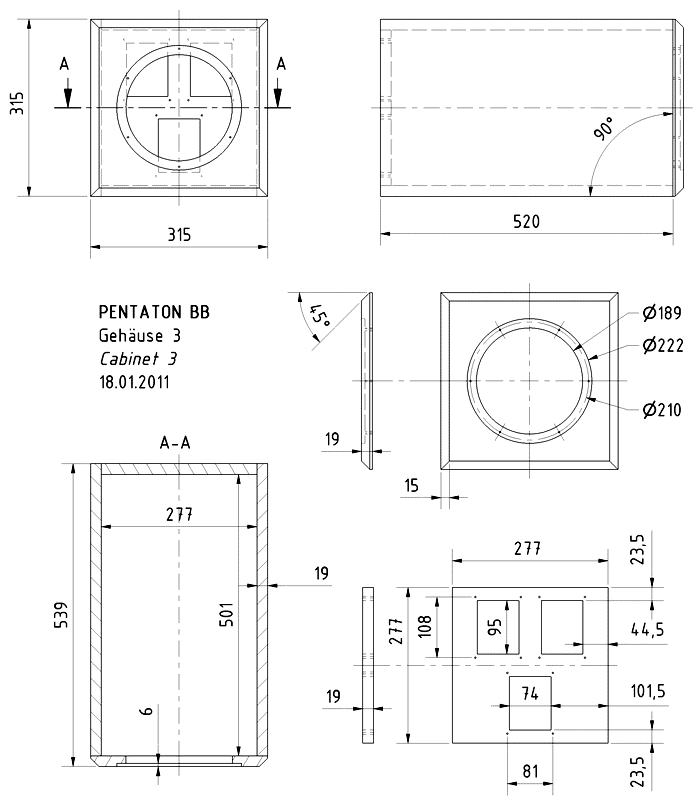

    Loudspeaker Box Construction Diagram - all dimensions in mm.

    Pentaton BB Speaker Kit



    Pentataton BB Speaker Kit

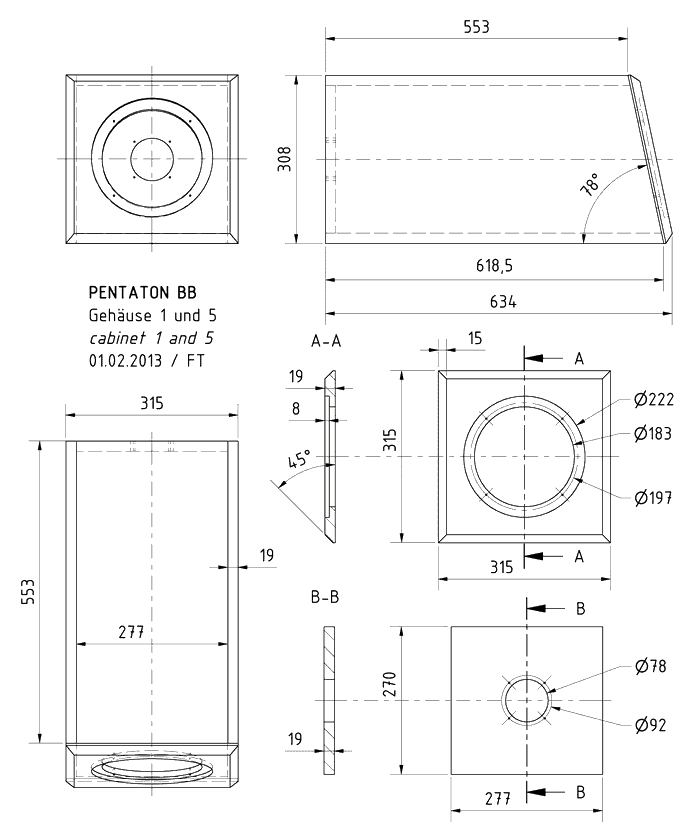

    Loudspeaker Box Construction Diagram - all dimensions in mm.



    Crossover - Supplied with Kit Already Assembled

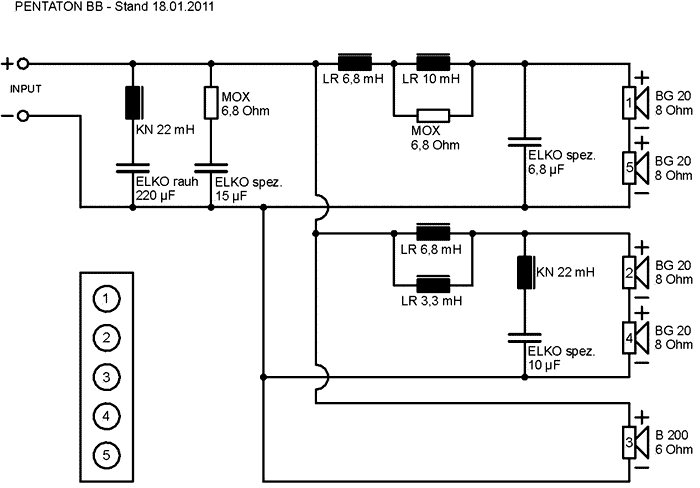

    Speaker Kit Crossover Circuit
    Speaker Kit Crossover Circuit
