WG 220x150 Wave Guide

Thumbnail Filmstrip of WG 220x150 Wave Guide Images

    Purchase WG 220x150 Wave Guide

    SKU: V-5175-WG220x150-Waveguide WG 220x150 Wave Guide

    $26.00 each
    Brand: Visaton
    Quantity in Basket:  None







    Visaton - Waveguide WG220x150
    Art. No. 5175

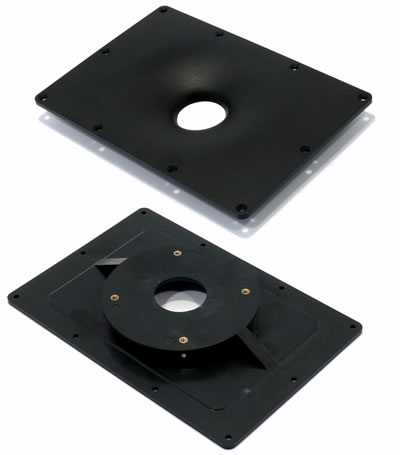

    Visaton WG 220x150 Waveguide
    Visaton WG 220x150 Waveguide



    Description
    15 x 22 cm waveguide of high-quality plastic for 25 mm tweeters. The exponential enlargement provides a high sound pressure level gain in the lower high frequency range, which discharges the tweeter. In addition, the focus and the coupling to a woofer are improved, because the sound generation planes move closer together.

    This waveguide was adjusted in width and length to 13 cm to suit for example AL130 8 Ohm and 20 cm to suit for example AL200 8 Ohm loudspeakers.

    For the connection of the tweeter, 4 pieces M4 screws (length approx. 10 mm) are added.

    This waveguide is suitable for: G25FFL 8 Ohm; KE25SC 8 Ohm; DSM25R 8 Ohm.



    Technical Specifications

    Cutout diameter 125 x 185 mm
    Net weight 190 g
    Cutout diameter - tweeter D = 38 mm
    Colour Black



    Dimensions

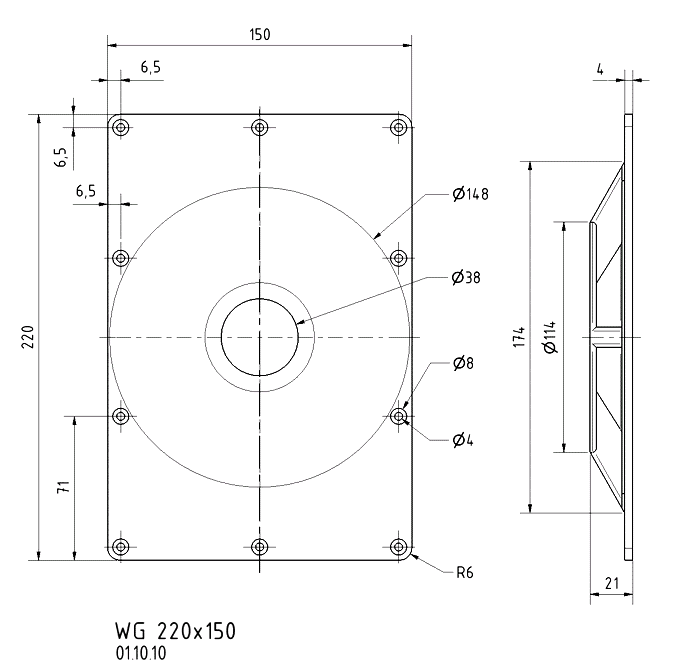

    Dimensions and Measurements - all dimensions in mm (approx.)
    Dimensions and Measurements - all dimensions in mm (approx.)
