    SKU: V-50404-EZ407 EZ 40.7 - 100 V

    $653.00 each - special order
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Driver - EZ 40.7 - 100 V Wall Mount Slim Speaker
    Art. No. 50404

    Visaton EZ40.7 - 100 Volt Wall Mount Speaker.
    Visaton EZ40.7 - 100V Wall Mount Slim Speaker



    Characteristics and Sound Properties
    Extremely slim speaker system using 100 V technology equipped with four 5 cm drivers. Wallmounting is possible using wall brackets on the end faces or universal-joint brackets (optional). Can be swivelled in any direction after fitting. White painted aluminium cabinet and protective grille (RAL 9010). EZ 40.7 can be supplied painted in other RAL colours on request.

    Typical applications:-
    - As a PA system in conference facilities, public buildings, churches etc.
    - Outdoor use

    Attributes:-
    - UV-resistant
    - Metal (aluminium)
    - 100 V transformer
    - 2-way combination
    - Waterproof



    Technical Specifications

    Transformer Matching 20; 10; 5 W
    Sound pressure level 94 dB (1 W/1 m)
    @ 5000 Hz
    Frequency response 230–20000 Hz
    Mean sound pressure level
    91 dB (1 W/1 m)
    Max sound pressure level 104 dB (20 W/1 m)
    Opening angle (-6dB) 111°/4000 Hz hor.
    33°/4000 Hz vert.
    Net weight 2.1 kg
    Protective system IP 54
    Temperature range −25 ... 70 °C

    Temperature Range

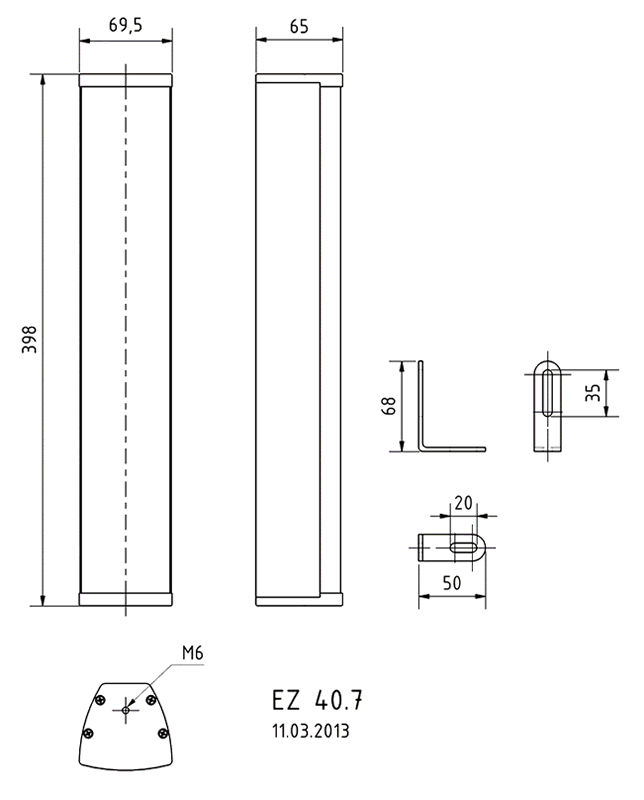

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

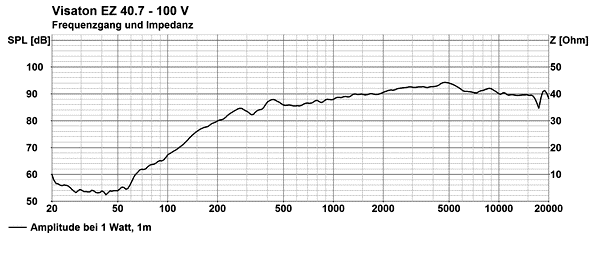

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph

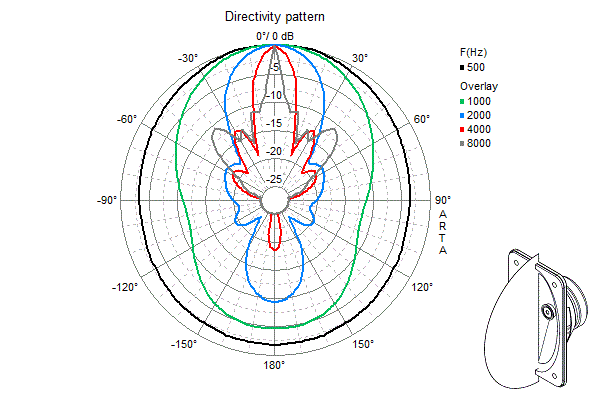

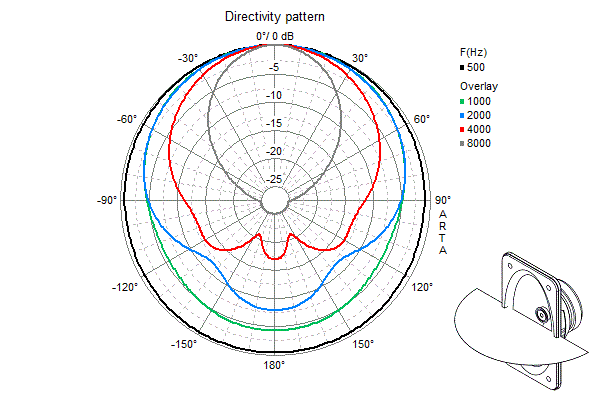

    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)

    Directivity pattern EZ 40.7
    Loudspeaker Directivity Pattern (on and off axis response)
