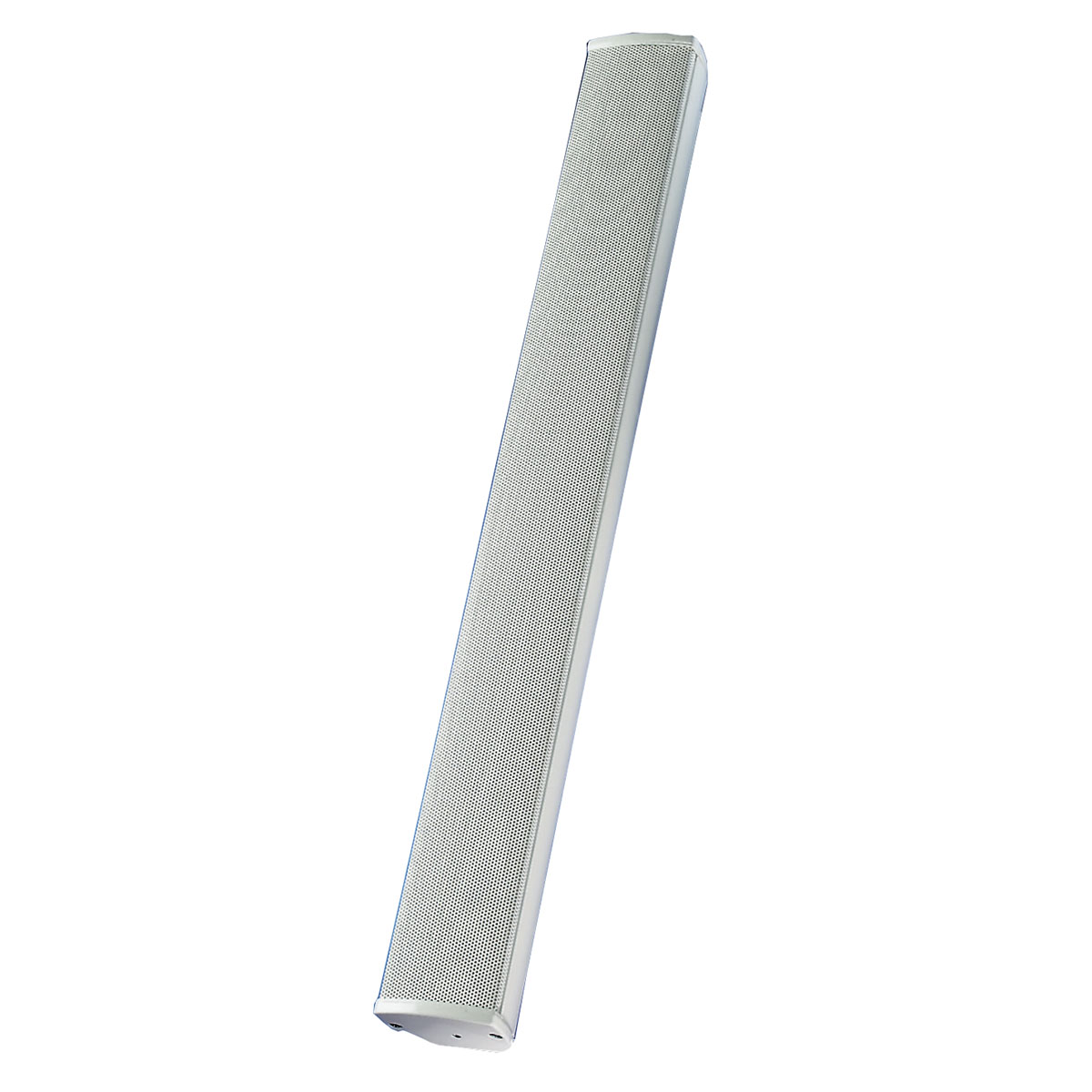

    Visaton Speaker Driver - EZ 60.7 - 100 V Slim speaker system
    Art. No. 50400

    Visaton EZ60.7 100V Slim speaker system.
    Visaton EZ60.7 - 100V Slim Speaker System



    Characteristics and Sound Properties
    Extremely slim speaker system using 100 V technology, equipped with eight 5 cm drivers. Wallmounting is possible using wall brackets on the end faces or universal-joint brackets (optional). Can be swivelled in any direction after fitting. White painted aluminium cabinet and protective grille (RAL 9010). EZ 60.7 can be supplied painted in other RAL colours on request.

    Typical applications:-

    - As a PA system in conference facilities, public buildings, churches etc.
    - Outdoor use

    Attributes:-
    - UV-resistant
    - Metal (aluminium)
    - 100 V transformer
    - 2-way combination
    - Waterproof



    Technical Specifications

    Transformer matching 30; 15; 7.5 W
    Sound presssure level 94 dB (1 W/1 m)
    @ 3040 Hz
    Frequency response 200–20000 Hz
    Mean sound pressure level
    90 dB (1 W/1 m)
    Max sound pressure level 105 dB (30 W/1 m)
    Opening angle (-6 dB) 122°/4000 Hz hor.
    12°/4000 Hz ver.
    Net weight 2.5 kg
    Protective system IP 54
    Temperature range -25 ... 70 °C

    Temperature Range

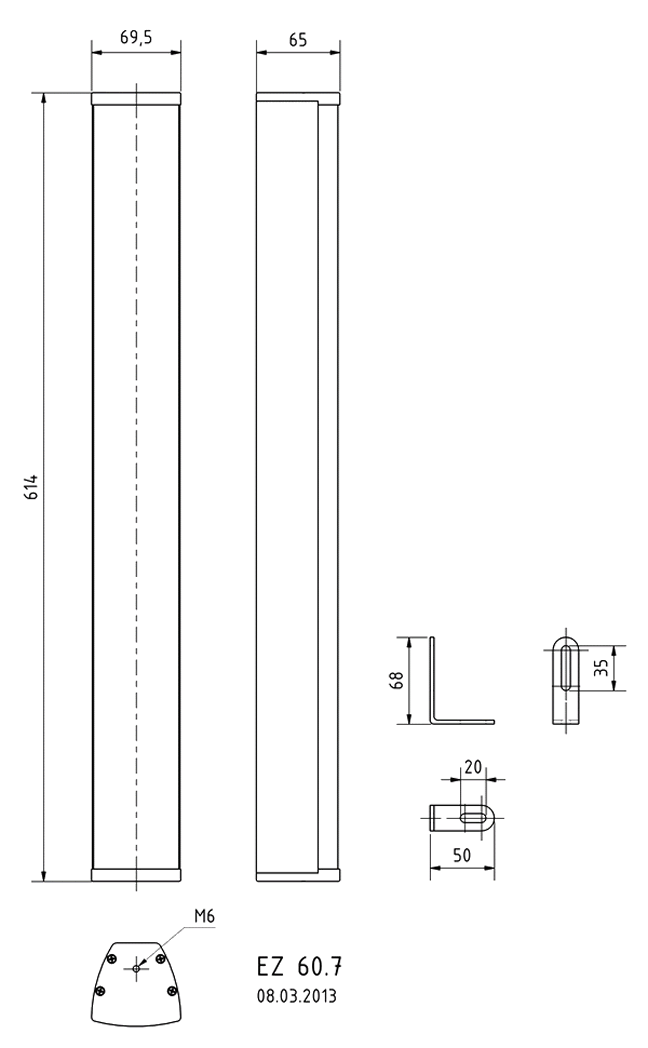

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

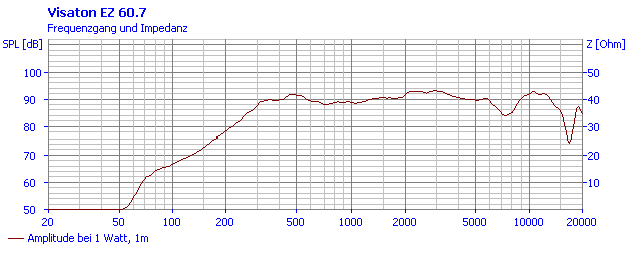

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph

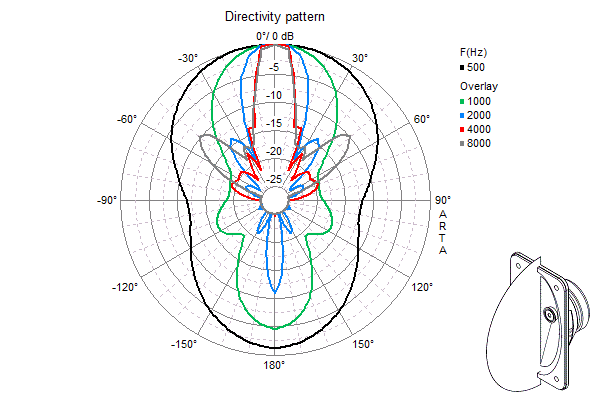

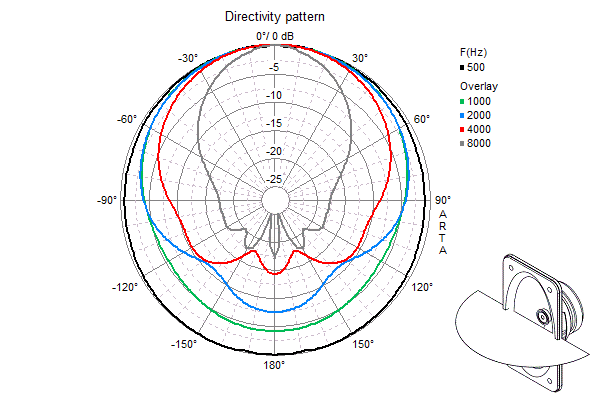

    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)

    EZ 60.7 100V Slim speaker
    Loudspeaker Directivity Pattern (on and off axis response)
