KL 33 EN - 100V - 4 Ohm White

Thumbnail Filmstrip of KL 33 EN - 100V - 4 Ohm White Images

    Purchase KL 33 EN - 100V - 4 Ohm White

    SKU: V-50344-KL33EN KL 33 EN - 100V - 4 Ohm White

    $697.00 each - special order
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Driver - KL33 EN - 100 V
    Art. No. 50344

    Visaton KL 33 EN  100V
    Visaton KL33 EN 100V



    Characteristics and Sound Properties

    33 cm spherical loudspeaker. Equipped with one 17 cm bass/midrange and four midrange/highrange drivers which have a good directivity pattern at off-axis angles and therefore provide a uniform and pleasant sound quality. The KL 33 EN can be connected to a 100 V network or a normal amplifier (4 ohm).

    Typical Applications:-

    • Voice alarm loudspeaker in rooms with high ceilings (shops, showrooms, supermarkets and exhibition or production halls)

    Attributes:-

    • Certified according to EN 54-24 (No. 1438-CPR-0625)
    • Ceramic terminal with thermal fuse (compliant to British Standard BS5839 part 8 and EN60849)
    • Plastic cabinet and metal grille
    • 100V transformer



    Technical Specifications

    Rated power 50 W
    Maximum power 70 W
    Nominal impedance Z 4 Ohm
    Frequency response 70-18000 Hz
    Mean sound pressure level 86 dB (1W/1m)
    Opening angle (-6 dB) 73°/4000 Hz
    Net Weight 4.6 kg
    Transformer matching 12/6/3/1.5 W
    Max. sound pressure level 97 dB (12 W/1 m)
    Colour white
    Length of cable 3 m
    Protective system IP 44 A EN54

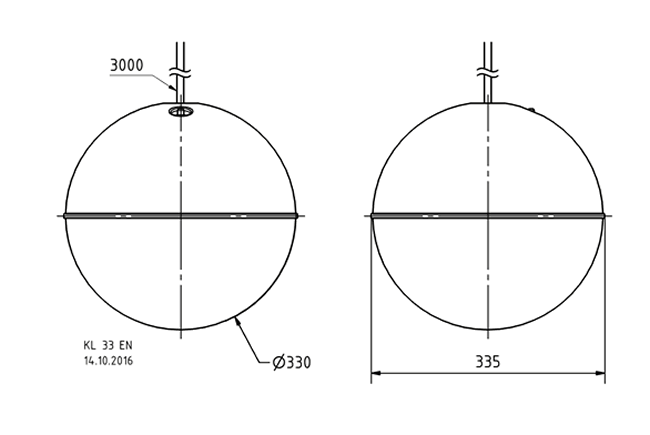

    Driver Dimensions


    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

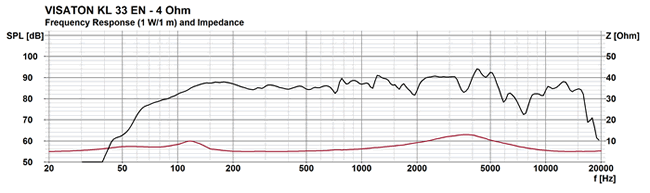

    Frequency and Impedance Response


    Loudspeaker Frequency and Impedance Response Graph

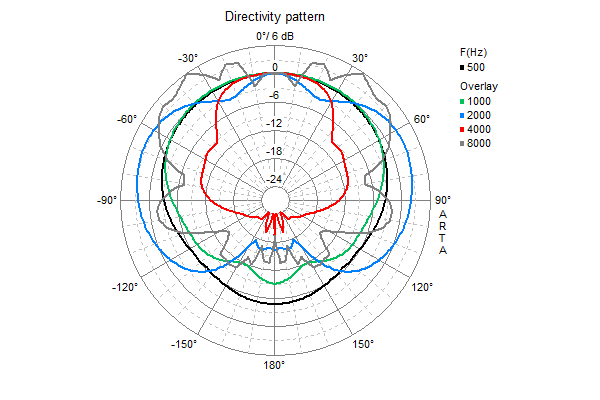

    Directivity Pattern


    Loudspeaker Directivity Pattern (on and off axis response)
