DK 133 - 100V

Thumbnail Filmstrip of DK 133 - 100V Images

    Purchase DK 133 - 100V

    SKU: V-50239-DK133 DK 133 - 100V

    $257.00 each
    Brand: Visaton
    Quantity in Basket:  None

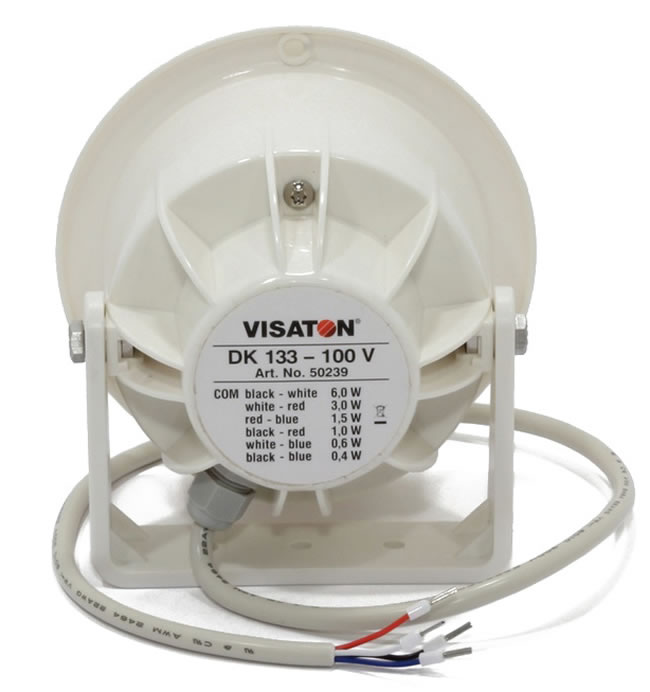

    Visaton Speaker Driver - DK 133 - 100 V Waterproof Horn Speaker
    Art. No. 50239

    Visaton DK133 - 100V.

    Visaton DK133 - 100V



    Characteristics and Sound Properties
    Horn Speaker with waterproofed design and 100 V transformer. High IP protection class, high sound pressure level, good voice reproduction, compact dimensions.

    Typical applications:
    - Public address in factories, railway stations etc.
    - Outdoor PA for vehicles
    - Use in alarm/alert systems

    Attributes:

    - UV-resistant
    - Very high efficiency
    - 100 V transformer



    Technical Specifications

    Transformer matching 6 / 3 / 1.5 / 1 / 0.6 / 0.4 W
    Sound pressure level 106 dB (1 W/1 m)
    @2800 Hz
    Frequency response 570-4400 Hz
    Mean sound pressure level 100 dB (1 W/1 m)
    Max. sound pressure level 107 dB (6 W/1 m)
    Opening angle (-6 dB) 63°/4000 Hz
    Voice coil diameter 38 mm
    Net weight 0.83 kg
    Connections Ferrules
    Length of cable 0.5 m
    Protective system IP 67
    Colour RAL 9010
    Temperature range -25 ... 70 °C

     Temperature Range





    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

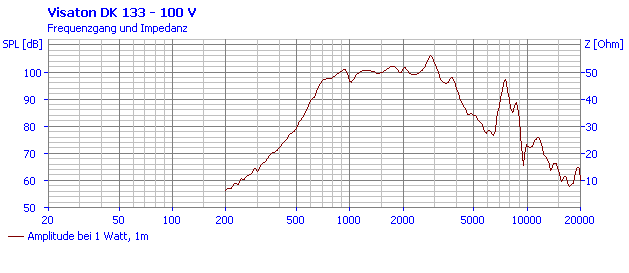

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph



    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
