DK 121 - 100V

Thumbnail Filmstrip of DK 121 - 100V Images

    Purchase DK 121 - 100V

    SKU: V-50232-DK121 DK 121 - 100V

    $376.00 each
    Brand: Visaton
    Quantity in Basket:  None



    3 available.

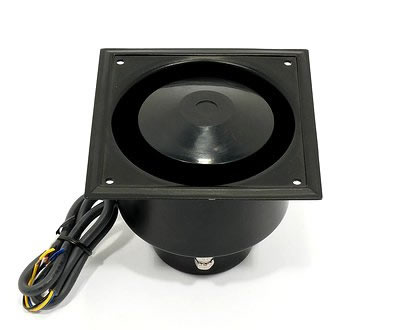

    Visaton Speaker Driver - DK 121- 100 V Horn Speaker
    Art. No. 50232

    Visaton DK121 - 100V.
    Visaton DK121 - 100V



    Characteristics and Sound Properties
    Built-in horn speaker with 100 V transformer. Waterproof design. Housing made of black lacquered aluminium, horns made of polypropylene (PP). High IP protection class (IP 67), high sound pressure and good voice reproduction. Ideal for inconspicuous installation due to the very compact dimensions. The potential equalisation connection is by means of an M6 grubscrew on the rear of the housing. The connection is via a four-core, halogen-free flexible cable (0.5 m).

    Typical applications
    - PA systems in factory halls, railway stations etc.
    - Outdoor PA at railway-vehicles
    - Use in alarm / alert systems

    Characteristics
    - Weather-proof aluminum cabinet
    - Plastic-insert-cabinet
    - UV-resistant



    Technical Specifications

    Transformer matching 6 / 3 / 1.5 / 0.5 / 0.3 W
    Sound pressure level 104 dB (1 W/1 m) @ 2900 Hz
    Frequency response 570–4400 Hz
    Mean sound pressure level
    100 dB (1 W/1 m)
    Max. sound pressure level 107 dB (6 W/1 m)
    Opening angle 69°/4000 Hz
    Voice coil diameter 40mm
    Net weight 0.78 kg
    Length of cable 0.5m
    Protective system IP 67
    Temerature range -25 ... 70 °C

    Temperature Range

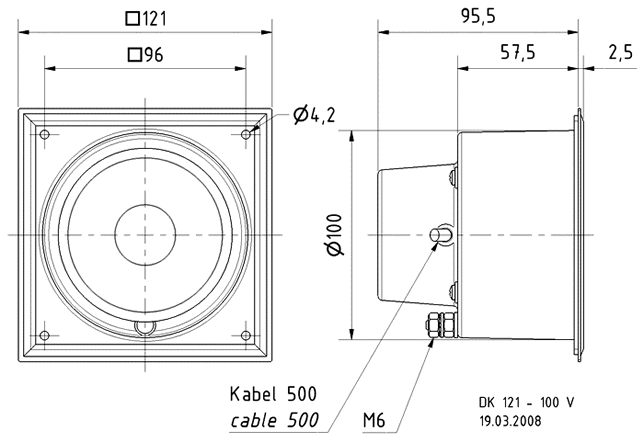

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

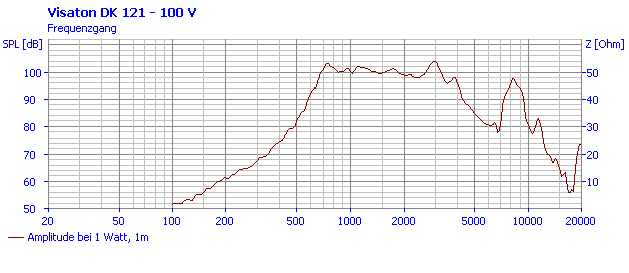

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph

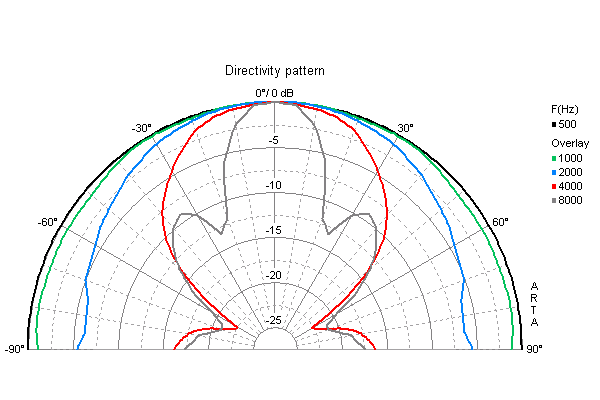

    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
