    Visaton Speaker Driver - DK 97 - 8 Ohm Horn Speaker
    Art. No. 50210

    Visaton DK97 - 8 Ohm Horn Speaker.
    Visaton DK97 - 8 Ohm Horn Speaker- rear view.

    Visaton DK97 - 8 Ohm Horn Speaker



    Characteristics and Sound Properties

    Horn Speaker with waterproofed design and 8 ohm impedance. High IP protection class, high sound pressure level, good voice reproduction, compact dimensions.

    Typical Applications:-
    • Public address in factories, railway stations etc.
    • Outdoor PA for vehicles
    • Use in alarm/alert systems



    Technical Specifications

    Rated power 6W
    Maximum power 10 W
    Nominal impedance Z 8 Ohm
    Sound pressure level
    100 dB (1W/1m) @ 1600 Hz
    Frequency response 380–20000 Hz
    Mean sound pressure level 93 dB (1 W/1 m)
    Opening angle (-6 dB) 68°/4000 Hz
    Voice coil diameter 15 mm
    Net Weight 0.35 kg
    Connections Cable with stripped ends
    (red cable = plus)
    Length of cable 0.5 m
    Protective system IP 67
    Temperature range −40 ... +110 °C
    Colour Black

    Temperature Range





    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

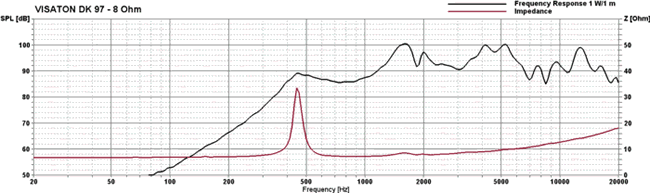

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph

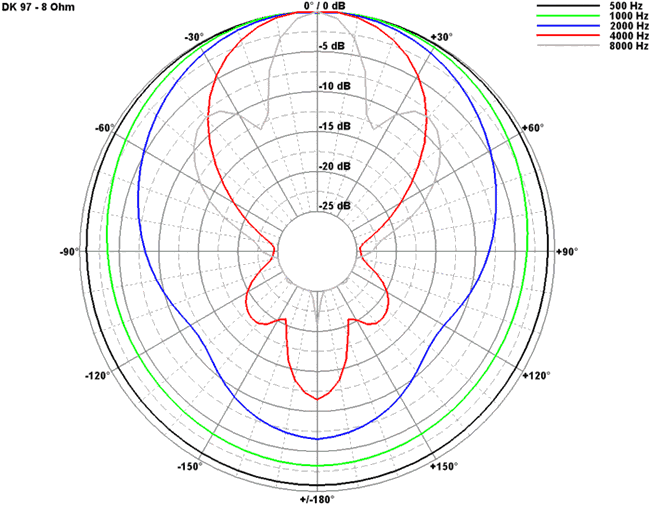

    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
