DL 13-2 - 100V'

Thumbnail Filmstrip of DL 13-2 - 100V' Images

    Purchase DL 13-2 - 100V'

    SKU: V-50161-DL132 DL 13-2 - 100V'

    $69.00 each
    Brand: Visaton
    Shipping Weight: 1.10 kg
    Quantity in Basket:  None



    4 available.

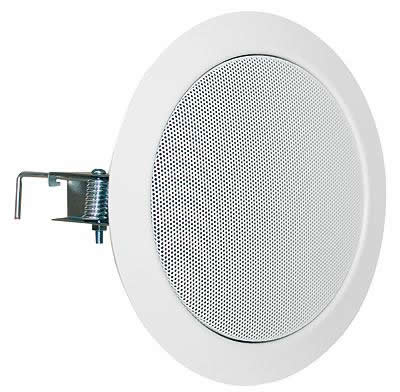

    Visaton Speaker Driver - DL 13/2 - 100 V Hifi Ceiling Speaker
    Art. No. 50161

    Visaton DL13/2 - 100V.
    Visaton DL13/2 - 100V



    Characteristics and Sound Properties
    13 cm (5") HiFi-ceiling speaker with corrosion free grille, suitable for the installation in suspended ceilings of any material. Equipped with a 2-way coaxial driver. Quick snap-in mounting due to round ceiling cut-out through which the speaker with mounting ring can be installed. A push-terminal block allows a quick and easy connection to the 100-V-network including the eventually necessary level adjustment. A quick-mounting bayonet connection provides an easy installation of the grille.

    DL 13/2 can be supplied painted in other RAL colours on request. Speaker cabinet systems for concrete ceilings are available. Fire protection housing systems are also available.

    Typical applications
    - For suspended ceilings in shops, private accomodation, bathrooms etc.

    Attributes
    - 100 V transformer
    - 2-way system
    - Metal basket, non-corrodible



    Technical Specifications

    Transformer matching 6 W; 3 W; 1.5 W
    Sound pressure level 98 dB (1 W/1 m)
    @ 5000 Hz
    Frequency response
    100–20000 Hz
    Mean sound pressure level 89 dB (1W/1m)
    Max. sound pressure level 96 dB (6 W/1 m)
    Opening angle (-6 dB) 52°/4000 Hz
    Height of front pole-plate 4 mm
    Voice coil diameter 25 mm
    Cutout diameter 165 mm
    Net weight 1.015 kg
    Protective system IP X3
    Temperature range −40 ... 80 °C
    Colour RAL 9010

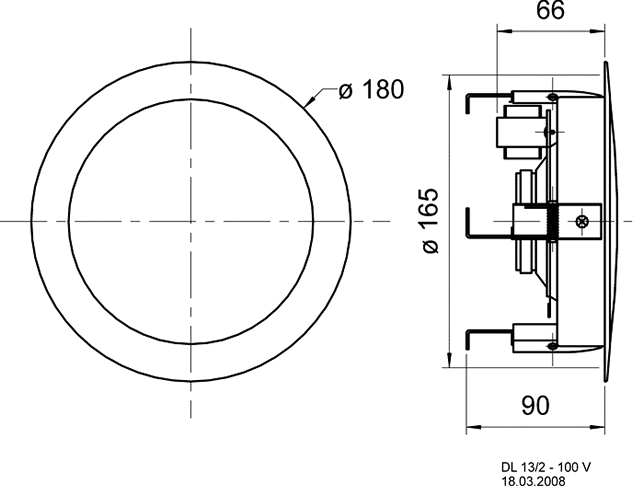

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

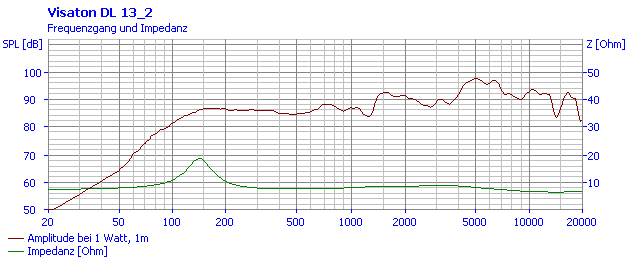

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph

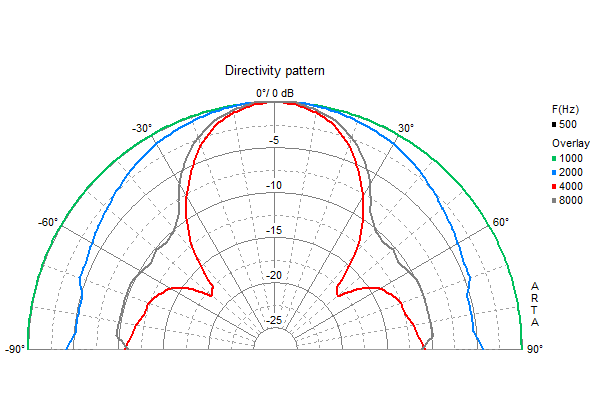

    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
