DL 13-2T - 8 Ohm

Thumbnail Filmstrip of DL 13-2T - 8 Ohm Images

    Purchase DL 13-2T - 8 Ohm

    SKU: V-50162-DL132T DL 13-2T - 8 Ohm

    $99.00 each
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Driver - DL13/2 T - 8 Ohm HiFi Ceiling Speaker
    Art. No. 50162

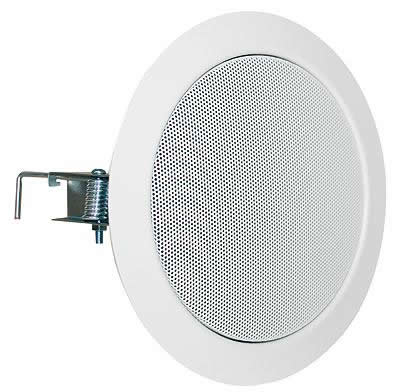

    Visaton DL13/2T - 8 Ohm.

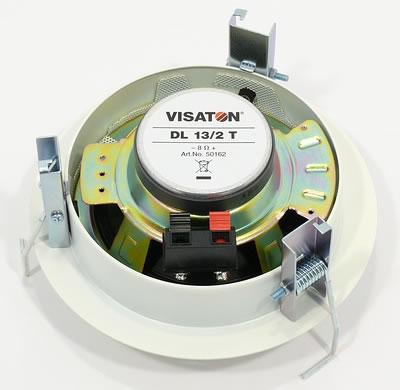

    Visaton DL13/2T - 8 Ohm rear view.
    Visaton DL13/2T - 8 Ohm



    Characteristics and Sound Properties
    13 cm (5") HiFi-ceiling speaker with corrosion free grille, suitable for the installation in suspended ceilings of any material. Equipped with a 2-way coaxial driver. Quick snap-in mounting due to round ceiling cut-out through which the speaker with mounting ring can be installed. A push-terminal block allows a quick and easy connection. A quick-mounting bayonet connection provides an easy installation of the grille.

    DL 13/2 T can be supplied painted in other RAL colours on request. Speaker cabinet systems for concrete ceilings are available. Fire protection housing systems are also available.

    Typical applications
    - For suspended ceilings in shops, private accomodation, bathrooms etc.

    Attributes
    - 2-way system
    - Metal basket, non-corrodible



    Technical Specifications

    Rated power 30 W
    Maximum power 50 W
    Nominal impedance Z 8 Ohm
    Frequency response 100-20000 Hz
    Sound pressure level 98 dB (1W/1m)
    @ 5000 Hz
    Opening angle (-6 dB) 52°/4000 Hz
    Mean sound pressure level 89 dB (1 W/1 m)
    Resonance frequency fs 150 Hz
    Height of front pole-plate 4 mm
    Voice coil diameter 25 mm
    Height of winding 5.5 mm
    Cutout diameter 165 mm
    Net weight 0.86 kg
    Protective system IP X3
    Temperature range −40 ... 80 °C
    Colour RAL 9010







    Driver Dimensions

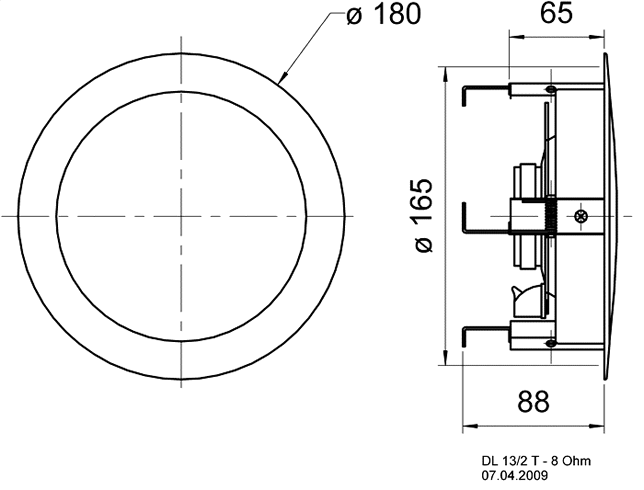

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)



    Frequency and Impedance Response

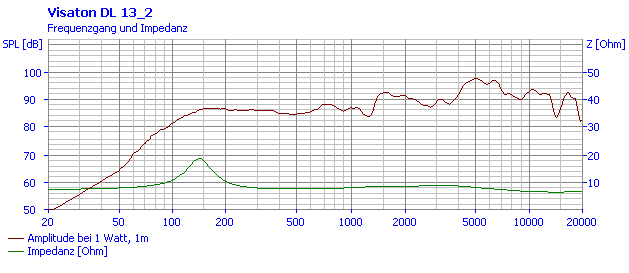

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph



    Directivity Pattern

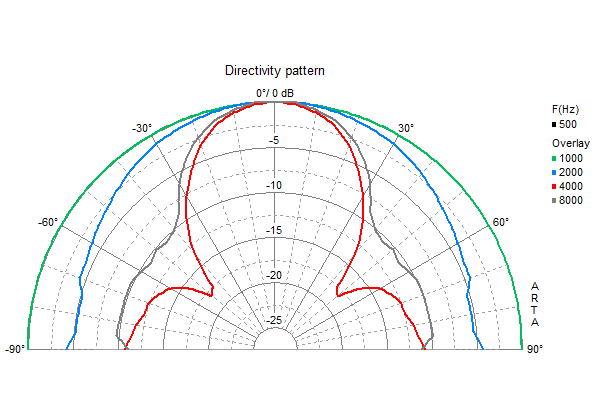

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
