FR 10 HM - 8 Ohm

Thumbnail Filmstrip of FR 10 HM - 8 Ohm Images

    Purchase FR 10 HM - 8 Ohm

    SKU: V-4899-FR10HM FR 10 HM - 8 Ohm

    $22.00 each
    Brand: Visaton
    Quantity in Basket:  None

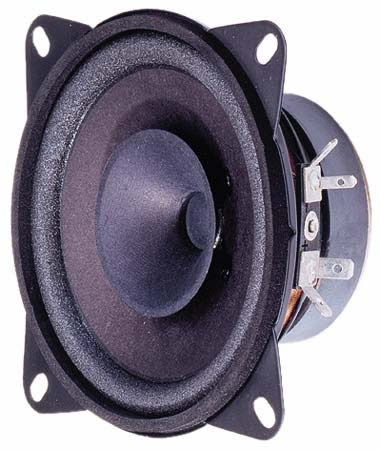

    Visaton Speaker Driver - FR 10 HM - 8 Ohm Full Range
    Art. No. 4899

    Characteristics and Sound Properties
    10 cm (4") fullrange speaker with tweeter cone and European standard basket. Simple fitting in vehicles with cut-outs for 10 cm speakers.

    Typical applications:-
    - Vehicles
    - Mobile homes

    Attributes:-
    - Moisturised cone
    - Metal basket



    Technical Specifications

    Rated power 20 W
    Maximum power 30 W
    Nominal impedance Z 8 Ohm

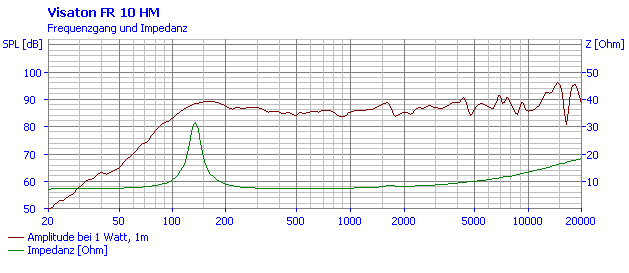

    Frequency response 95–22000 Hz
    Mean sound pressure level 86 dB (1W/1m)

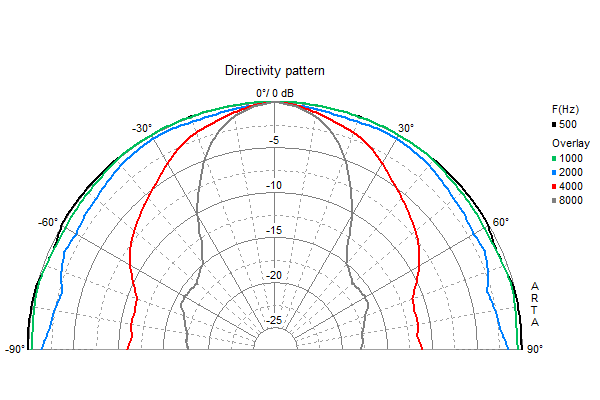

    Opening angle (-6 dB) 86°/4000 Hz
    Excursion limit ± 2 mm
    Resonance frequency fs 120 Hz
    Magnetic induction 1.1 T
    Magnetic flux 100 uWb
    Height of front pole-plate 2 mm
    Voice coil diameter 14 mm
    Height of winding 5 mm

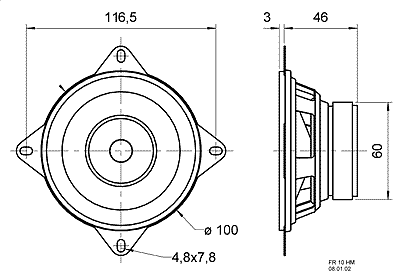

    Cutout diameter 94 mm
    Net weight 0.34 kg
    DC resistance Rdc 7.2 Ohm
    Mechanical Q factor Qms 5.89
    Electrical Q factor Qes 1.91
    Total Q factor Qts 1.44
    Equivalent volume Vas 2 litres
    Effective piston area Sd 50 cm2
    Dynamically moved mass Mms 2.8 grams
    Force factor Bxl 2.9 Tm
    Inductance of the voice coil L 0.2 mH
    Temperature range -25 ... 70 °C
    Connections 2 x 4.8 x 0.8 mm (+)
    2.8 x 0.8 mm (-)
