FR 10 HM - 4 Ohm

Thumbnail Filmstrip of FR 10 HM - 4 Ohm Images

    Purchase FR 10 HM - 4 Ohm

    SKU: V-4898-FR10HM FR 10 HM - 4 Ohm

    $17.00 each
    Brand: Visaton
    Shipping Weight: 0.39 kg
    Quantity in Basket:  None







    Visaton Speaker Driver - FR 10 HM - 4 Ohm Full Range
    Art. No. 4898

    Visaton FR10HM - 4 Ohm Full Range.
    Visaton FR10HM - 4 Ohm Full Range



    Characteristics and Sound Properties
    10 cm (4") fullrange speaker with tweeter cone and European standard basket. Simple fitting in vehicles with cut-outs for 10 cm speakers.

    Typical applications:-
    - Vehicles
    - Mobile homes

    Attributes:-
    - Moisturised cone
    - Metal basket



    Technical Specifications

    Rated power 20 W
    Maximum power 30 W
    Nominal impedance Z 4 Ohm
    Frequency response 95–22000 Hz
    Mean sound pressure level 86 dB (1W/1m)
    Opening angle (-6 dB) 86°/4000 Hz
    Excursion limit ± 2 mm
    Resonance frequency fs 120 Hz
    Magnetic induction 1.1 T
    Magnetic flux 100 µWb
    Height of front pole-plate 2 mm
    Voice coil diameter 14 mm
    Height of winding 5 mm
    Cutout diameter 94 mm
    Net weight 0.34 kg
    DC resistance Rdc 3.2 Ohm
    Mechanical Q factor Qms 5.35
    Electrical Q factor Qes 1.44
    Total Q factor Qts 1.13
    Equivalent volume Vas 2.1 litres
    Effective piston area Sd 50 cm2
    Dynamically moved mass Mms 2.7 grams
    Force factor Bxl 2.1 Tm
    Inductance of the voice coil L 0.2 mH
    Temperature range −25 ... 70 °C

    Temperature Range





    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

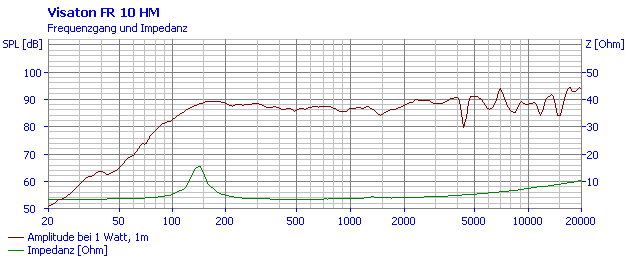

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph



    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
