FR 10 HMP - 4 Ohm

Thumbnail Filmstrip of FR 10 HMP - 4 Ohm Images

    Purchase FR 10 HMP - 4 Ohm

    SKU: V-4880-FR10HMP FR 10 HMP - 4 Ohm

    $17.00 each
    Brand: Visaton
    Quantity in Basket:  None

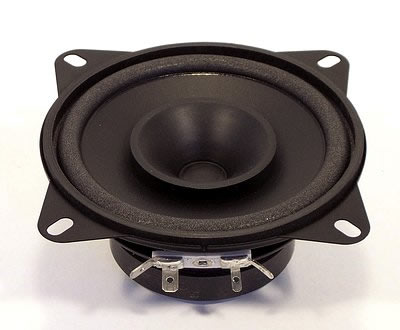

    Visaton Speaker Driver - FR 10 HMP - 4 Ohm Full Range
    Art. No. 4880

    Visaton FR10HMP Full-Range.
    Visaton FR10HMP - 4 Ohm Full Range



    Characteristics and Sound Properties
    10 cm (4") fullrange speaker with polypropylene diaphragm, dual cone and European standard basket. Simple fitting in vehicles with cut-outs for 10 cm speakers.

    Typical applications:-
    - Vehicles
    - Mobile homes

    Attributes:-
    - Waterproof cone
    - Metal basket



    Technical Specifications

    Rated power 20 W
    Maximum power 30 W
    Nominal impedance Z 4 Ohm
    Frequency response 90–20000 Hz
    Mean sound pressure level 86 dB (1W/1m)
    Opening angle (-6 dB) 87°/4000 Hz
    Excursion limit ± 2 mm
    Resonance frequency fs 120 Hz
    Height of front pole-plate 2 mm
    Voice coil diameter 14 mm
    Height of winding 5 mm
    Cutout diameter 94 mm
    Net weight 0.268 kg
    Temperature range −25 ... 70 °C

    Temperature Range

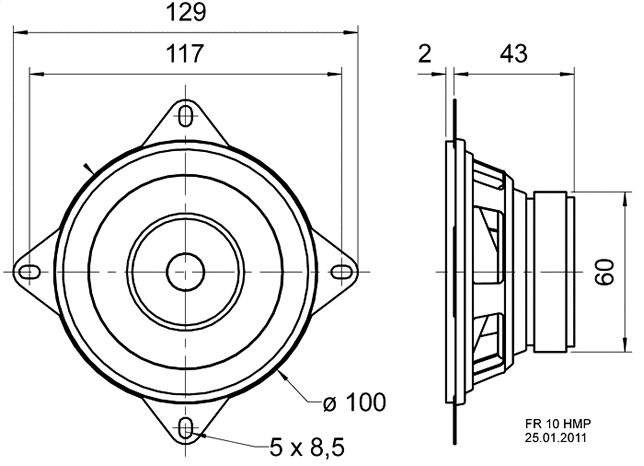

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

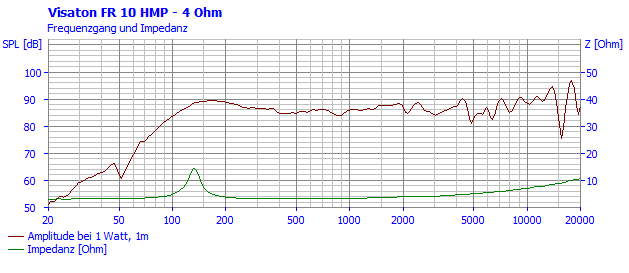

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph

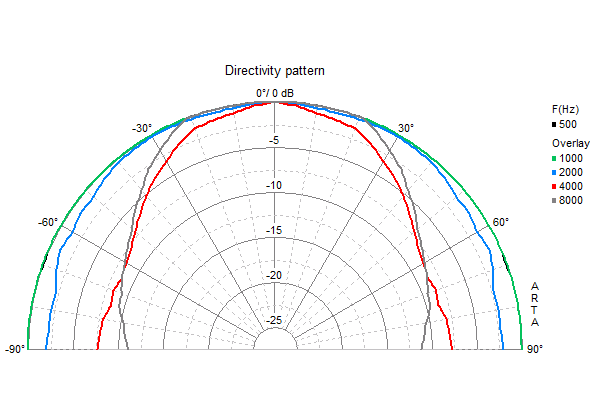

    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
