FR 10 F - 4 Ohm

Thumbnail Filmstrip of FR 10 F - 4 Ohm Images

    Purchase FR 10 F - 4 Ohm

    SKU: V-4622-FR10F FR 10 F - 4 Ohm

    $19.00 each
    Brand: Visaton
    Quantity in Basket:  None

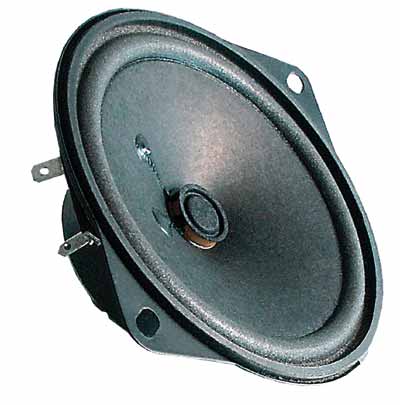

    Visaton Speaker Driver - FR 10 F - 4 Ohm Full Range
    Art. No. 4622

    Visaton FR10F Full Range - 4 Ohms.
    Visaton FR10F - 4 Ohm Full Range Speaker



    Characteristics and Sound Properties
    10 cm (4") full-range loudspeaker with two fixing lugs and shallow design. High degree of sound pressure and good high-range reproduction. Easy to fit in vehicles with 10 cm loudspeaker mounts.



    Technical Specifications

    Rated power 20 W
    Maximum power 30 W
    Nominal impedance Z 4 Ohm
    Frequency response 100-22000 Hz
    Mean sound pressure level 86 dB (1W/1m)
    Opening angle (-6 dB) 122°/4000 Hz
    Excursion limit ± 4 mm
    Resonance frequency fs 133 Hz
    Height of front pole-plate 3 mm
    Voice coil diameter 14 mm
    Cutout diameter 94 mm
    Net weight 0.2 kg
    DC resistance Rdc 3.7 Ohm
    Mechanical Q factor Qms 6.5
    Electrical Q factor Qes 1.99
    Total Q factor Qts 1.52
    Equivalent volume Vas 2.2 litres
    Effective piston area Sd 52 cm2
    Dynamically moved mass Mms 2.4 grams
    Force factor Bxl 1.7 Tm
    Inductance of the voice coil L 0.35 mH
    Temperature range −25 ... 70 °C

    Temperature Range

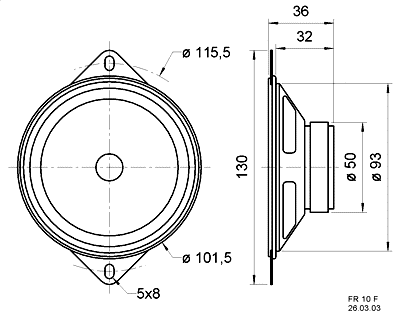

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

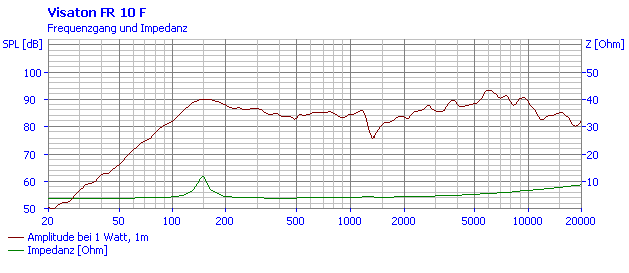

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph

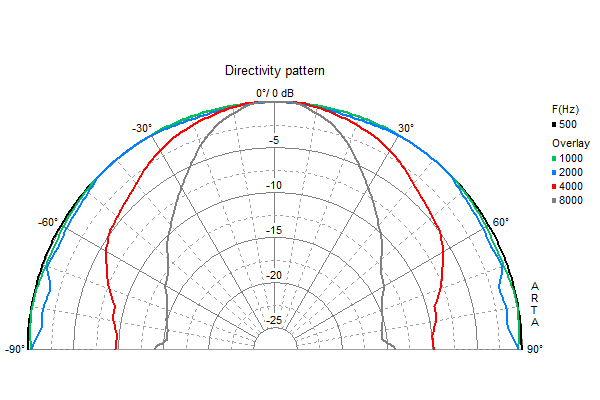

    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
