DX 4x6 - 4 Ohm

Thumbnail Filmstrip of DX 4x6 - 4 Ohm Images

    Purchase DX 4x6 - 4 Ohm

    SKU: V-4615-DX4x6 DX 4x6 - 4 Ohm

    $51.00 each
    Size Approx: 4 x 6" / 100 mm x 150 mm / 10 cm x 15 cm
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Driver - DX 4x6 - 4 Ohm 2-Way Coax Speaker
    Art. No. 4615

    Visaton DX4x6 - 4 Ohm.
    Visaton DX4x6 - 4 Ohm



    Characteristics and Sound Properties
    9 x 15 cm (4" x 6") 2-way coax speaker with polypropylene diaphragm and European standard basket. Integrated crossover (capacitor type) for the tweeter. Simple fitting in vehicles with cut-outs for 9 x 15 cm speakers. Includes fitting materials.

    Typical applications:-
    - Vehicles
    - Mobile homes

    Attributes:-

    - Moisturised cone
    - Metal basket
    - Coaxial speaker



    Technical Specifications

    Rated power 30 W
    Maximum power 50 W
    Nominal impedance Z 4 Ohm
    Frequency response
    65-22000 Hz
    Mean sound pressure level 86 dB (1 W/1 m)
    Opening angle (-6 dB) 140°/4000 Hz hor.
    180°/4000 Hz vert.
    Excursion limit ± 1.5 mm
    Resonance frequency fs 90 Hz
    Magnetic induction 1 T
    Magnetic flux 190 µWb
    Height of front pole-plate 3 mm
    Voice coil diameter 20 mm / 14mm
    Height of winding 5 mm
    Cutout diameter 88 x 144 mm (oval)
    Net weight 0.423 kg
    Connections 4.8 x 0.8 mm (+)
    2.8 x 0.8 mm (−)
    Temperature Range −25 ... 70 °C

    Temperature Range

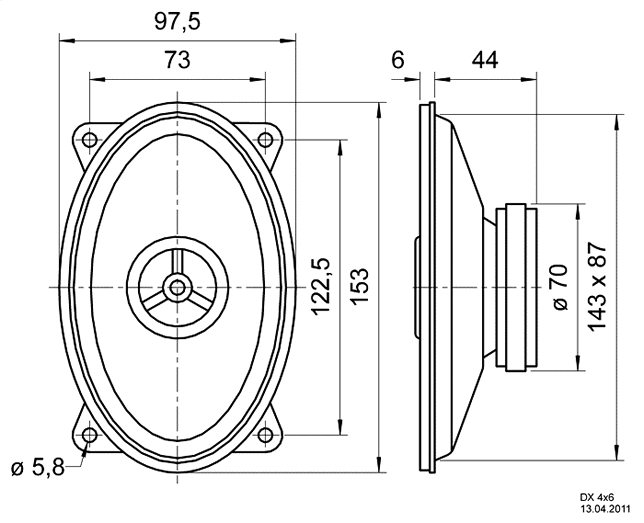

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

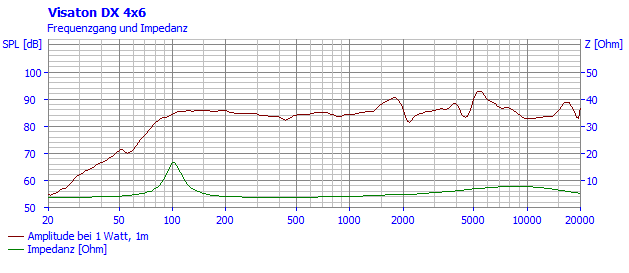

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph

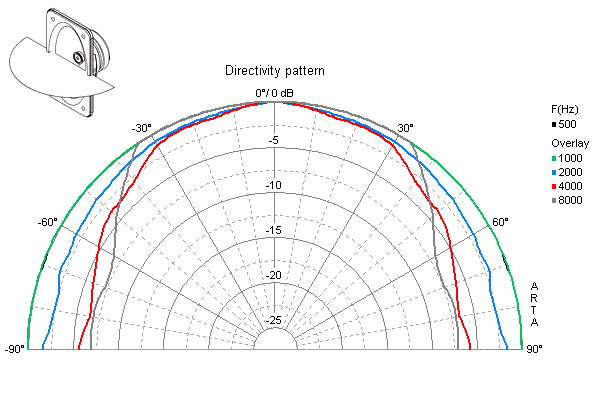

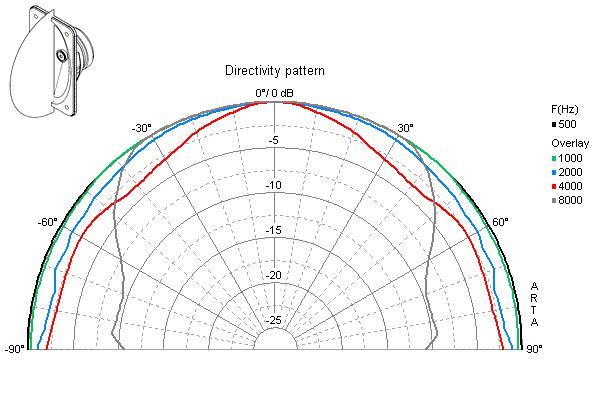

    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)

    Visaton DX 4x6
    Loudspeaker Directivity Pattern (on and off axis response)
