DX 13 - 4 Ohm

Thumbnail Filmstrip of DX 13 - 4 Ohm Images

    Purchase DX 13 - 4 Ohm

    SKU: V-4613-DX13 DX 13 - 4 Ohm

    $145.00 per pair - On Backorder
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Driver - DX 13 - 4 Ohm 2-Way Coaxial Loudspeakers
    Art. No. 4613

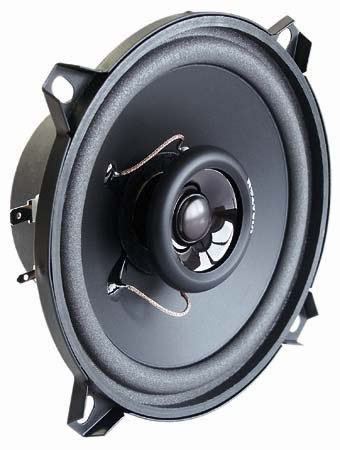

    Visaton DX13 - 4 Ohm.

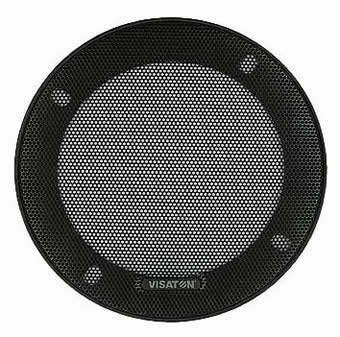

    Visaton DX13 supplied grille.
    Visaton DX13 - 4 Ohm - 13 cm (5") 2-way coaxial loudspeaker with supplied grille.



    Characteristics and Sound Properties
    13 cm (5") 2-way coaxial loudspeakers with polypropylene cone and polycarbonate tweeter. Integrated crossover (capacitor) for the tweeter. Very balanced sound. Straightforward installation in vehicles with cutouts for 13 cm speakers. Door and rear tray installation possible using mounting ring and grille. Packed in pairs, mounting accessories and protective grilles are included.

    Typical applicatons:-
    - Vehicles
    - Mobile homes



    Technical Specifications

    Rated power 60 W
    Maximum power 80 W
    Nominal impedance Z 4 Ohm
    Frequency response 70-20000 Hz
    Mean sound pressure level 86 dB (1W/1m)
    Dispersion angle (-6 dB) 180°/4000 Hz
    Excursion limit ± 2.5 mm
    Resonance frequency fs 90 Hz
    Magnetic induction 1.1 T
    Magnetic flux 345 µWb
    Height of front pole-plate 4 mm
    Voice coil diameter 25 mm / 14 mm
    Height of winding 7 mm
    Cutout diameter 116 mm
    Net weight 0.69 kg
    DC resistance Rdc 3.3 Ohm
    Mechanical Q factor Qms 8.51
    Electrical Q factor Qes 1.07
    Total Q factor Qts 0.95
    Effective piston area Sd 88 cm2
    Inductance of the voice coil L 0.39 mH
    Temperature Range −25 ... 70 °C

    Temperature Range

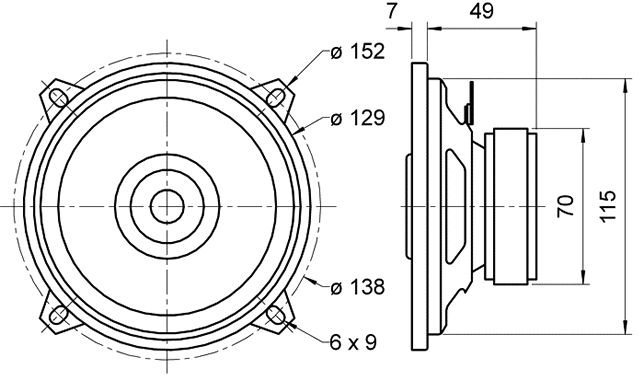

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

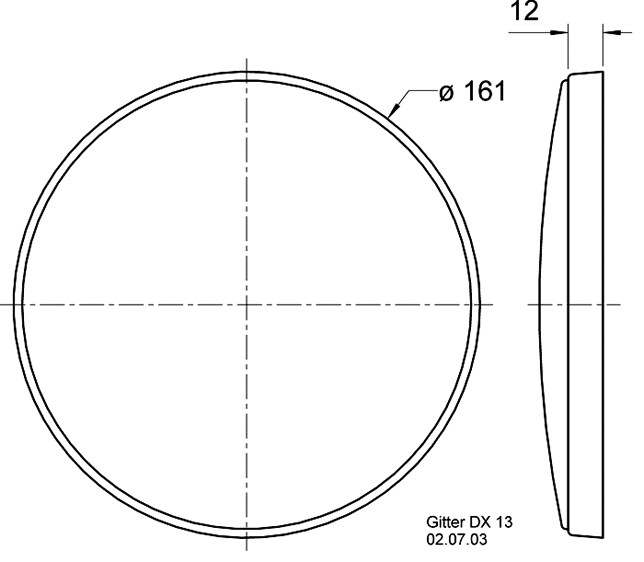

    DX13 Grille Dimensions
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

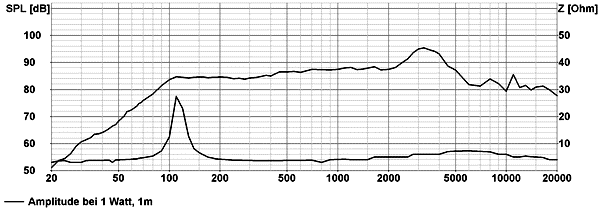

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph

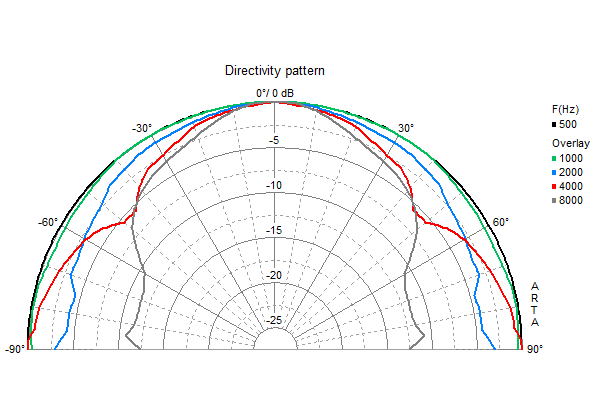

    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
