PX 13 - 4 Ohm

Thumbnail Filmstrip of PX 13 - 4 Ohm Images

    Purchase PX 13 - 4 Ohm

    SKU: V-4603-PX13 PX 13 - 4 Ohm

    $45.00 each
    Brand: Visaton
    Quantity in Basket:  None

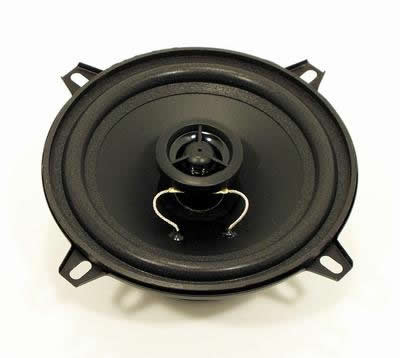

    Visaton Speaker Driver - PX 13 - 4 Ohm 2-Way Coaxial Loudspeaker
    Art. No. 4603

    Visaton PX13 - 4 Ohm 2-way Coaxial Loudspeaker.
    Visaton PX13 - 4 Ohm 2-Way Ccoaxial Loudspeaker



    Characteristics and Sound Properties
    13 cm (5") 2-way coaxial loudspeaker with standard basket and piezoelectric tweeter. Straightforward installation in vehicles with cutouts for 13 cm speakers.

    Typical applications:-
    - Vehicles
    - Mobile homes

    Attributes:-
    - Polypropylene cone
    - Metal basket
    - Coaxial speaker



    Technical Specifications

    Rated power 20 W
    Maximum power 30 W
    Nominal impedance Z 4 Ohm
    Frequency response 60–15000 Hz
    Mean sound pressure level 84 dB (1W/1m)
    Opening angle (-6 dB) 75°/4000 Hz
    Excursion limit ±2 mm
    Resonance frequency fs 95 Hz
    Height of front pole-plate 3 mm
    Voice coil diameter 20 mm
    Height of winding 5.5 mm
    Cutout diameter 116 mm
    Net weight 0.48 kg
    Magnetic induction 1.0 T
    Magnetic flux 190 µWb
    Temperature range −25 ... 70 °C
    Temperature Range

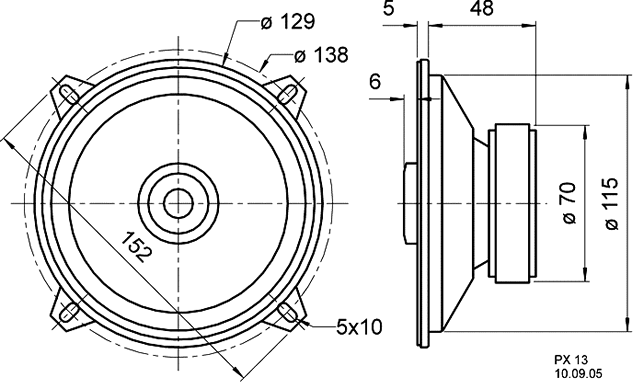

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

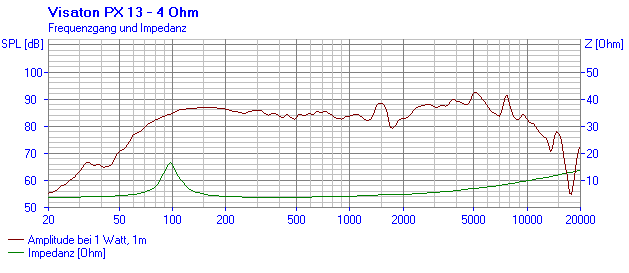

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph

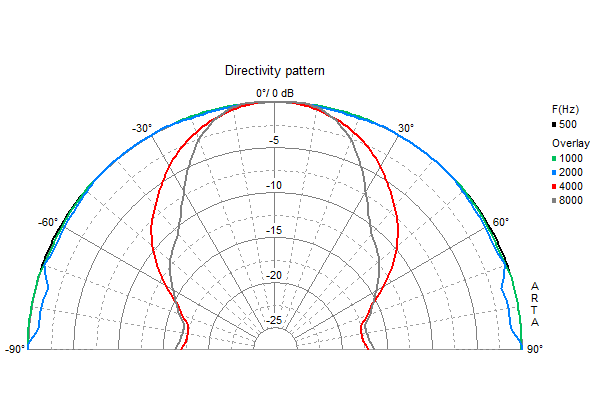

    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
