PX10 HF - 4 Ohm

Thumbnail Filmstrip of PX10 HF - 4 Ohm Images

    Purchase PX10 HF - 4 Ohm

    SKU: V-4602-PX-10-HF PX10 HF - 4 Ohm

    $32.00 each
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Driver - PX 10 HF - 4 Ohm 10 cm 4 Inch
    Art. No. 4602

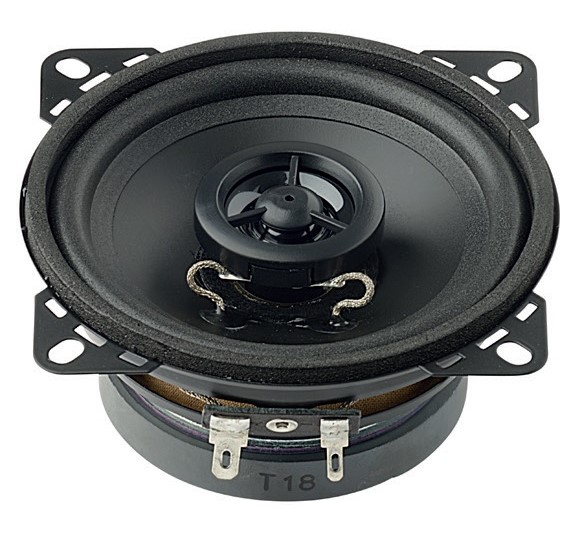

    Visaton PX10 HF - 4 Ohm 2-way coaxial loudspeaker.

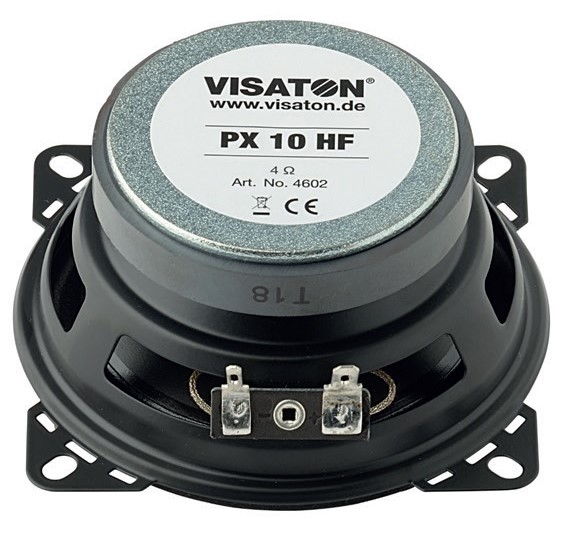

    PX10 HF - 4 Ohm 2-way coaxial loudspeaker. Rear View
    Visaton PX10 HF - 4 Ohm 2-way coaxial loudspeaker 10 cm (4")



    Characteristics and Sound Properties

    10 cm (4") 2-way coaxial loudspeaker with standard basket and piezoelectric tweeter. Straightforward installation in vehicles with cutouts for 10 cm speakers. Waterproof PP-cone. Its sunken tweeter means that the speaker can be mounted behind flat grilles or flat covers.

    Typical Applications:-

    • Vehicles
    • Mobile homes
    Attributes:-
    • Sunken installation of the tweeter



    Technical Specifications

    Rated power 20 W
    Maximum power 30 W
    Nominal impedance Z 4 Ohm
    Frequency response

    70-13000 Hz
    Mean sound pressure level 85 dB (1W/1m)
    Opening angle (-6 dB) 93°/4000 Hz
    Resonance frequency fs 136 Hz
    Height of front pole-plate 3 mm
    Voice coil diameter 20 mm
    Height of winding 5.2 mm
    Cutout diameter 92 mm
    Net weight 0.385 kg
    Connections 4.8 x 0.8 mm (+)
    2.8 x 0.8 mm (-)
    Temperature range –25 ... 70 °C

    Temperature Range

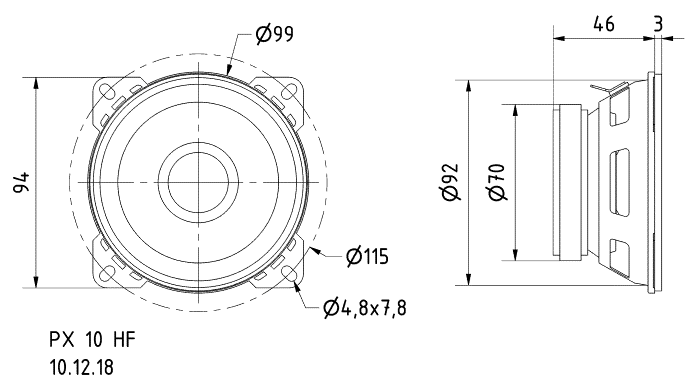

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

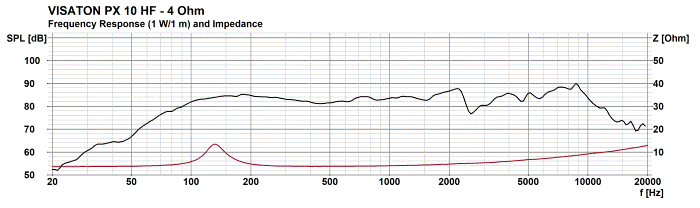

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph

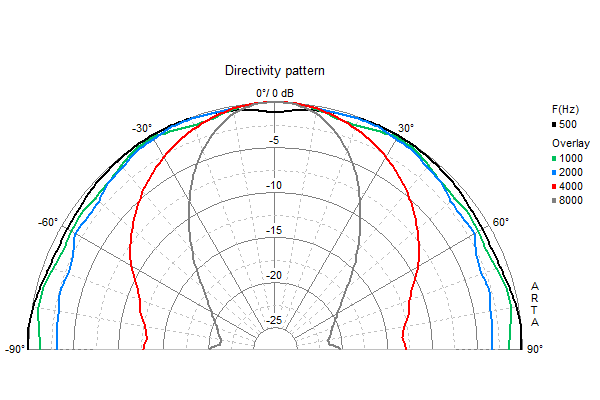

    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
