PX 10 - 4 Ohm

Thumbnail Filmstrip of PX 10 - 4 Ohm Images

    Purchase PX 10 - 4 Ohm

    SKU: V-4600-PX10 PX 10 - 4 Ohm

    $32.00 each
    Brand: Visaton
    Quantity in Basket:  None

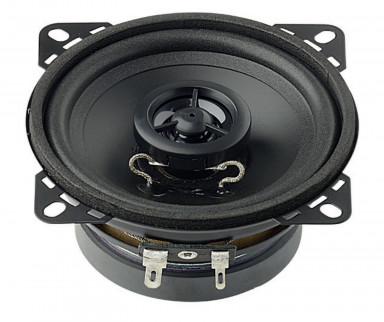

    Visaton Speaker Driver - PX 10 - 4 Ohm 2-Way Coaxial Loudspeaker
    Art. No. 4600

    Visaton PX10 - 4 Ohm 2-way Coaxial Loudspeaker.
    Visaton PX10 - 4 Ohm 2-Way Coaxial Loudspeaker



    Characteristics and Sound Properties
    10 cm (4") 2-way coaxial loudspeaker with standard basket and piezoelectric tweeter. Straightforward installation in vehicles with cutouts for 10 cm speakers. Waterproof PP-cone.

    Typical applications:-
    - Vehicles
    - Mobile homes

    Attributes:-
    - Polypropylene cone
    - Metal basket
    - Coaxial speaker



    Technical Specifications

    Rated power 20 W
    Maximum power 30 W
    Nominal impedance Z 4 Ohm
    Frequency response 70–18000 Hz
    Mean sound pressure level 83 dB (1W/1m)
    Opening angle (-6 dB) 107°/4000 Hz
    Excursion limit ±2 mm
    Resonance frequency fs 110 Hz
    Height of front pole-plate 3 mm
    Voice coil diameter 20 mm
    Height of winding 5.2 mm
    Cutout diameter 93 mm
    Net weight 0.385 kg
    Temperature range −25 ... 70 °C
    Temperature Range

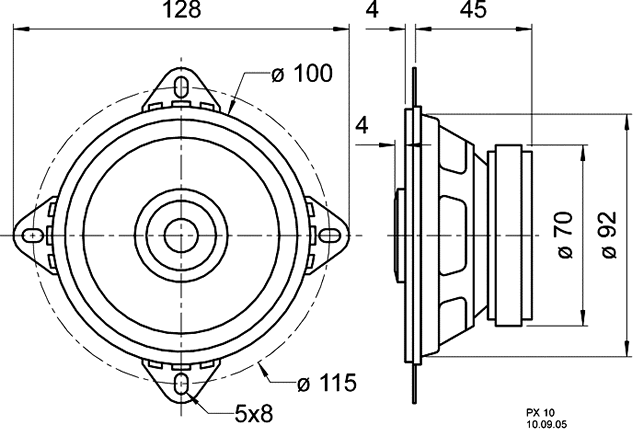

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

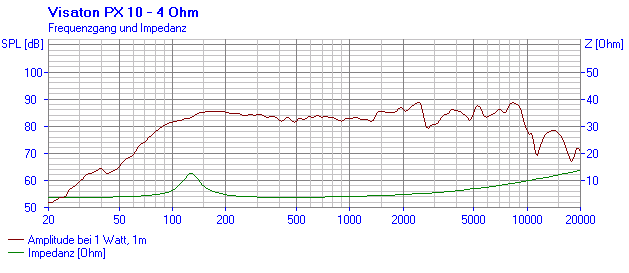

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph

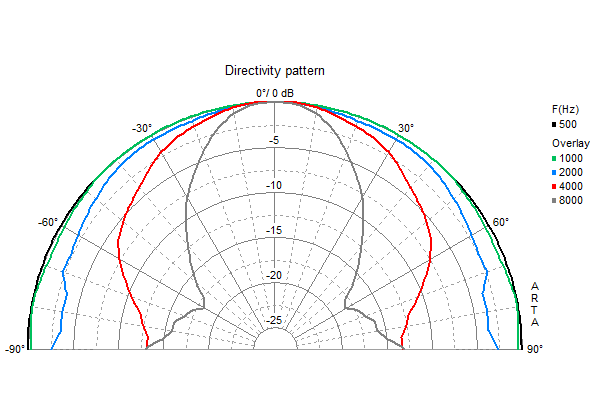

    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
