Visaton Speaker Driver - FX 16 - 4 Ohm 2-Way Coaxial
Art. No. 4572

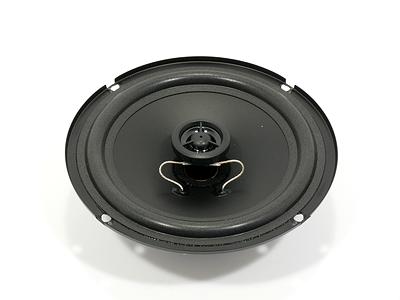

Visaton FX16 - 4 Ohm 2-Way Coaxial Loudspeaker
Characteristics and Sound Properties
16 cm (6.5") 2-way coaxial loudspeaker with standard basket. Integrated crossover (capacitor) for the tweeter. Straightforward installation in vehicles with cutouts for 16 cm speakers. Waterproof PP-cone.
Typical applications:
- Vehicles
- Mobile homes
Attributes:
- Waterproof cone
- Metal basket
- Coaxial speaker
Technical Specifications
Rated power | 40 W |
Maximum power | 60 W |
Nominal impedance Z | 4 Ohm |
Frequency response | 60-20000 Hz |
Mean sound pressure level | 86 dB (1W/1m) |
Dispersion angle (-6 dB) | 60 °/4000 Hz |
Resonance frequency fs | 105 Hz |
Height of front pole-plate | 3 mm |
Voice coil diameter | 20 mm |
Height of winding | 6.3 mm |
Cutout diameter | 144 mm |
Net weight | 0.6 kg |
Connections | 4.8 x 0.8 mm (+) 2.8 x 0.8 mm ( −) |
Temperature range | −25 ... 70 °C |

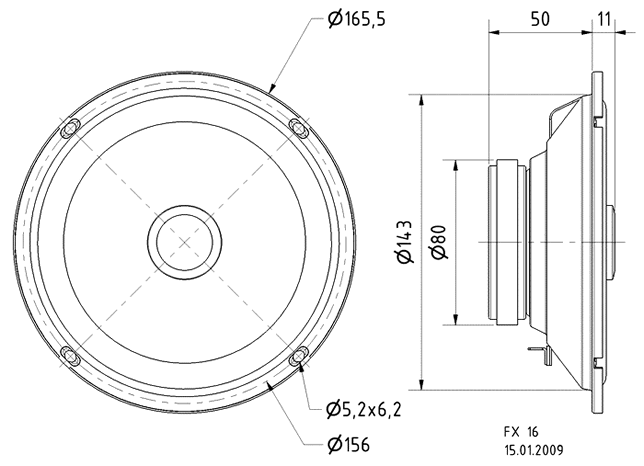

Driver Dimensions

Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

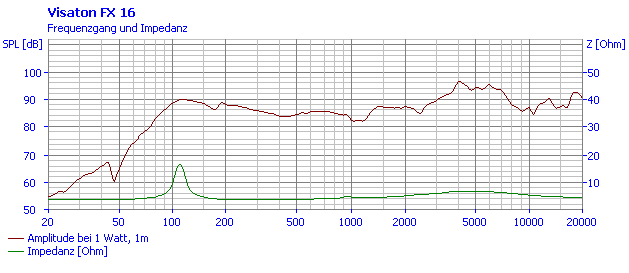

Frequency and Impedance Response

Loudspeaker Frequency and Impedance Response Graph

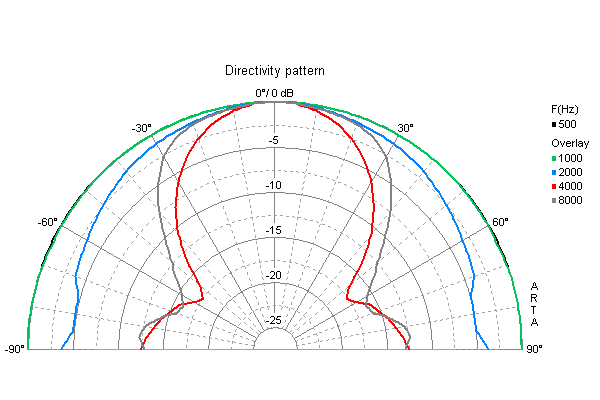

Directivity Pattern

Loudspeaker Directivity Pattern (on and off axis response)
