FX 16 WP - 4 Ohm

Thumbnail Filmstrip of FX 16 WP - 4 Ohm Images

    Purchase FX 16 WP - 4 Ohm

    SKU: V-2146-FX16WP FX 16 WP - 4 Ohm

    $199.00 per pair
    Brand: Visaton
    Quantity in Basket:  None

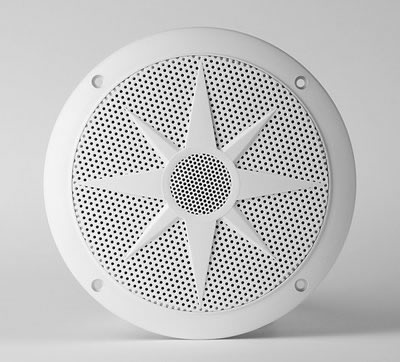

    Visaton Speaker Driver - FX 16 WP - 4 Ohm Saltwater Resistant 2-Way Coaxial
    Art. No. 2146

    Visaton FX16 - 4 Ohm Saltwater Resistant 2-way Coaxial.
    Visaton FX16WP - 4 Ohm Saltwater Resistant 2-Way Coaxial



    Characteristics and Sound Properties
    Saltwater resistant 16 cm (6.5") 2-way coaxial speaker with moulded plastic cone, plastic basket and grille. Absolutely corrosion-resistant and waterproof due to encased magnet and silicon-coated leads. Additional tweeter centred in compass rose design. White colour. Including gasket and mounting template. *) IP protection class for front side when built into a sealed enclosure.

    Typical applications:-
    - Outdoor PA systems
    - Loudspeaker for boats and ships

    Attributes:-
    - Seawater proof
    - Functionally at low temperature according to EN 60068-2-1 (-40 °C; 96 h)
    - Up to the standards of the Germanischer Lloyd (requirements for electrical equipment / low temperature)
    - Plastic: ASA (UL 94:HB; UV-/weather-proof)
    - Ball-resistant



    Technical Specifications

    Rated power 80 W
    Maximum power 100 W
    Nominal impedance Z 4 Ohm
    Frequency response 60–20000 Hz
    Mean sound pressure level 86 dB (1W/1m)
    Resonance frequency fs 85 Hz
    Height of front pole-plate 4 mm
    Voice coil diameter 25 mm
    Height of winding 7 mm
    Cutout diameter 142 mm
    Net weight 0.46 kg
    Connections 4.8 x 0.8 mm (+)
    2.8 x 0.8 mm (−)
    Protective System IP 65 *)
    Colour White
    Temperature range −40 ... 80 °C

    Temperature Range

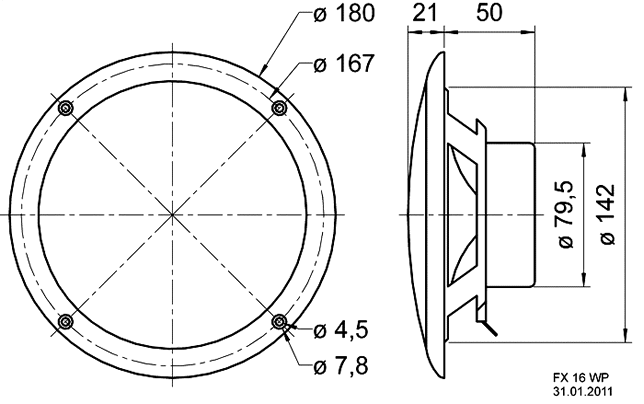

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

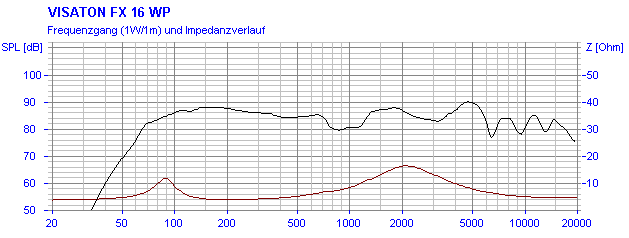

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph

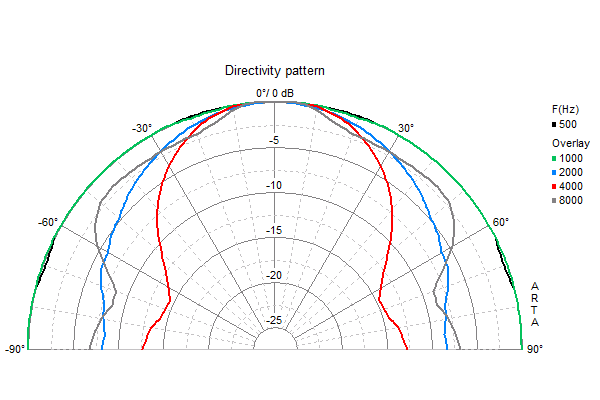

    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
