FRS 5 XWP - 8 Ohm

Thumbnail Filmstrip of FRS 5 XWP - 8 Ohm Images

    Purchase FRS 5 XWP - 8 Ohm

    SKU: V-2236-FRS5XWP FRS 5 XWP - 8 Ohm

    $28.00 each
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Driver - FRS 5 XWP - 8 Ohm Full Range Speaker
    Art. No. 2236

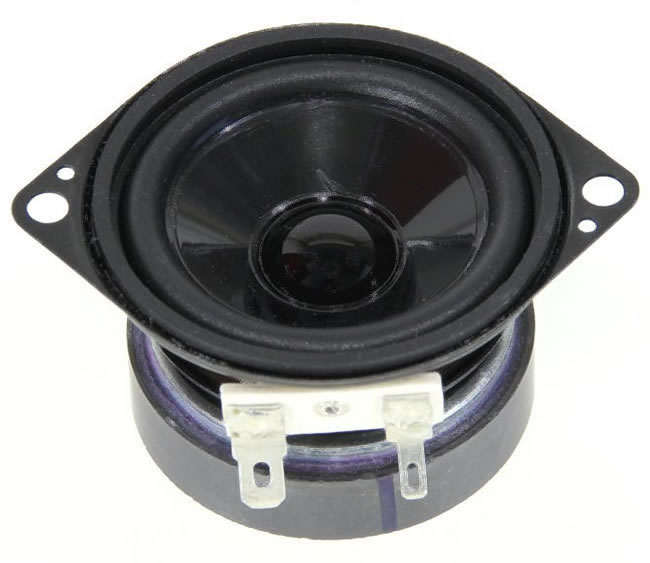

    Visaton FRS5XWP - 8 Ohm Full Range Speaker.

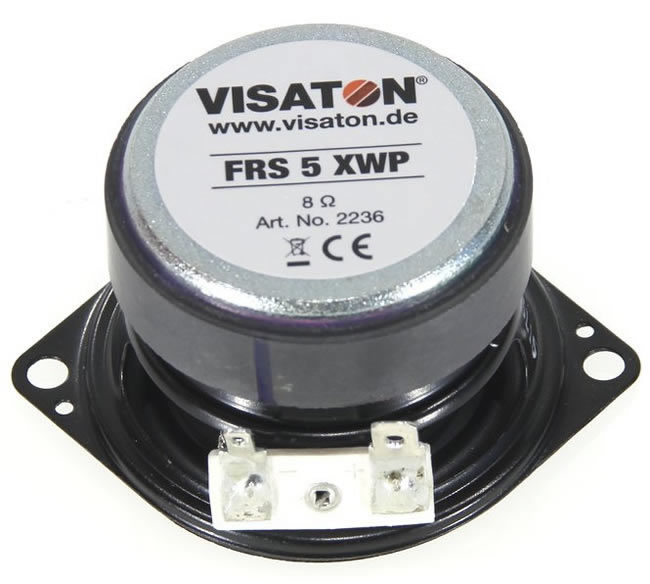

    Visaton FRS5XWP - 8 Ohm Full Range Speaker Rear
    Visaton FRS5XWP - 8 Ohm Full Range Speaker



    Characteristics and Sound Properties
    5 cm (2") fullrange speaker with black metal basket and two fixing lugs. Due to it's low resonant frequency, the frequency response already starts at 120 Hz. Suitable as fullrange or midrange driver in speaker systems for Hifi, small PA and 100 V PA systems. Thanks to the slim construction, also suitable as a control speaker in electronic devices.

    Attributes:-

    • Rubber gasket
    • Waterproof version with PET cone and Mylar dustcap
    • UV resistant
    • Metal basket, non-corrodible



    Technical Specifications

    Rated power 5 W
    Maximum power 8 W
    Nominal impedance Z 8 Ohm
    Frequency response
    (fu: Lower cut-off frequency depending on cabinet)
    120–20000 Hz
    Mean sound pressure level 86 dB (1 W/1 m)
    Resonance frequency fs 190 Hz
    Net Weight 0.14 kg
    DC resistance Rdc 7.9 Ohm
    Connections 4.8 x 0.8 mm (+)
    2.8 x 0.8 mm (-)
    Protective sytstem IP 65 *)
    Temperature range −25 ... +70 °C
    *) IP protection class for front side when built into a sealed enclosure

    Temperature Range Protective system IP65

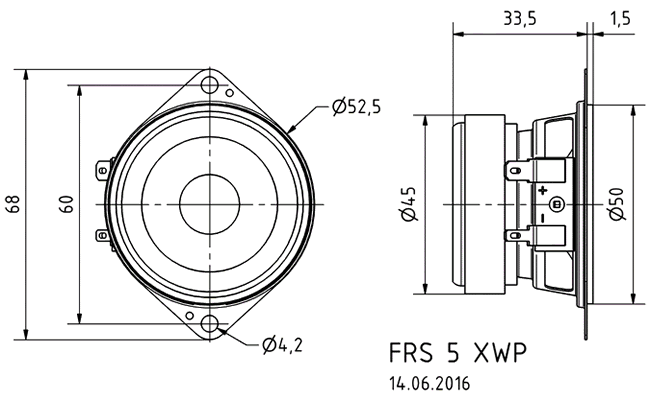

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

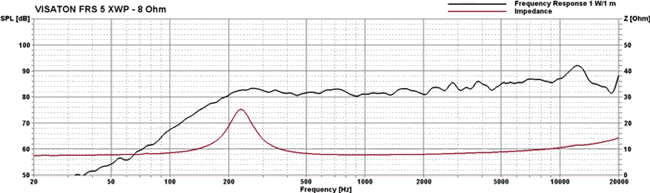

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph




    Loudspeaker Frequency and Impedance Response Graph

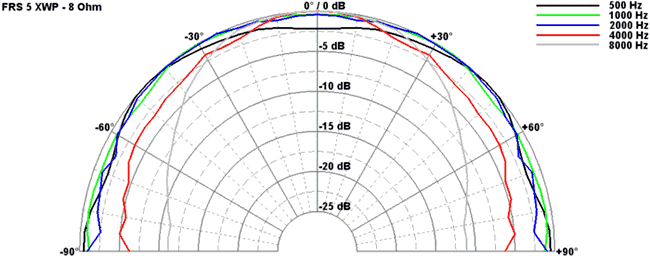

    Directivity Pattern

    Directivity Patterm FRS 5 XWP - 8 Ohm
    Loudspeaker Directivity Pattern (on and off axis response)
