FR 16 WP White - 4 Ohm

Thumbnail Filmstrip of FR 16 WP White - 4 Ohm Images

    Purchase FR 16 WP White - 4 Ohm

    SKU: V-2116-FR16WP FR 16 WP White - 4 Ohm

    $52.00 each
    Quantity in Basket:  None







    Visaton Speaker Driver - FR 16 WP - 4 Ohm Saltwater Resistant
    Art. No. 2116

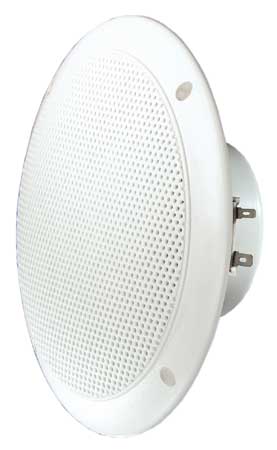

    Visaton FR16WP - 4 Ohm White Saltwater Resistant.
    Visaton FR16WP - 4 Ohm Saltwater Resistant



    Characteristics and Sound Properties
    Saltwater resistant 16 cm (6.5") full-range speaker with moulded plastic cone, plastic basket and grille. Absolutely corrosion-resistant and waterproof due to encased magnet and silicon-coated leads. White colour. *) IP protection class for front side when built into a sealed enclosure

    Typical applications:-
    - Outdoor PA systems
    - Loudspeaker for solariums and damp locations
    - Boats, ships and open vehicles

    Attributes:-
    - Seawater proof
    - Functionally at low temperature according to EN 60068-2-1 (-40 °C; 96 h)
    - Up to the standards of the Germanischer Lloyd (requirements for electrical equipment/low temperature)
    - Plastic: ASA (UL 94:HB; UV-/weather-proof)
    - Ball-resistant



    Technical Specifications

    Rated power 60 W
    Maximum power 80 W
    Nominal impedance Z 4 Ohm
    Frequency response 60–15000 Hz
    Mean sound pressure level 86 dB (1W/1m)
    Dispersion angle (-6 dB) 46°/4000 Hz
    Resonance frequency fs 85 Hz
    Magnetic induction 1.0 T
    Magnetic flux 250 µWb
    Height of front pole-plate 4 mm
    Voice coil diameter 20 mm
    Height of winding 6 mm
    Cutout diameter 142 mm
    Net weight 0.42 kg
    DC resistance Rdc 3.7 Ohm
    Mechanical Q factor Qms 2.99
    Electrical Q factor Qes 1.55
    Total Q factor Qts 1.02
    Equivalent volume Vas 10 litres
    Effective piston area Sd 130 cm2
    Dynamically moved mass Mms 8.4 grams
    Force factor Bxl 3.2 Tm
    Inductance of the voice coil L 0.4 mH
    Connections 4.8 x 0.8 mm (+)
    2.8 x 0.8 mm (−)
    Protective system IP 65 *)
    Temperature range −40 ... 80 °C
    Colour White

    Temperature Range FR16wp IP rating





    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)



    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph



    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
