Gasket for FR 16 WP

Visaton - Gasket for FR 16 WP
Art. No. 2118

Description

This gasket from Visaton is made for the watertight mounting of the FR16WP, a waterproof, saltwater resistant 16 cm (6.5 inch) full-range speaker. Fitted between the speaker and the mounting surface, it helps stop water working its way in along the edge of the speaker, giving you a cleaner and better protected installation in outdoor, marine and damp locations. Other uses may be possible, so please check sizing to ensure fit.

Key Features:

• Watertight Mounting: Helps prevent water penetrating along the edge of the speaker where it meets the baffle or mounting surface.
• Purpose-Made Fit: Designed by Visaton specifically for the FR 16 WP, so there is no need to cut or modify a generic gasket.
• Suits Both Colours: The same gasket fits the FR 16 WP 4 Ohm in black and in white.
• Slim Profile: Only 2 mm thick, so it adds a seal without noticeably changing the mounting depth.

Compatible Speakers:

For watertight mounting of:

• FR 16 WP 4 Ohm (black)
• FR 16 WP 4 Ohm (white)

Typical Uses:

• Boats, ships and open vehicles
• Outdoor PA systems
• Solariums and other damp locations
• Other outdoor installations where the FR 16 WP is used

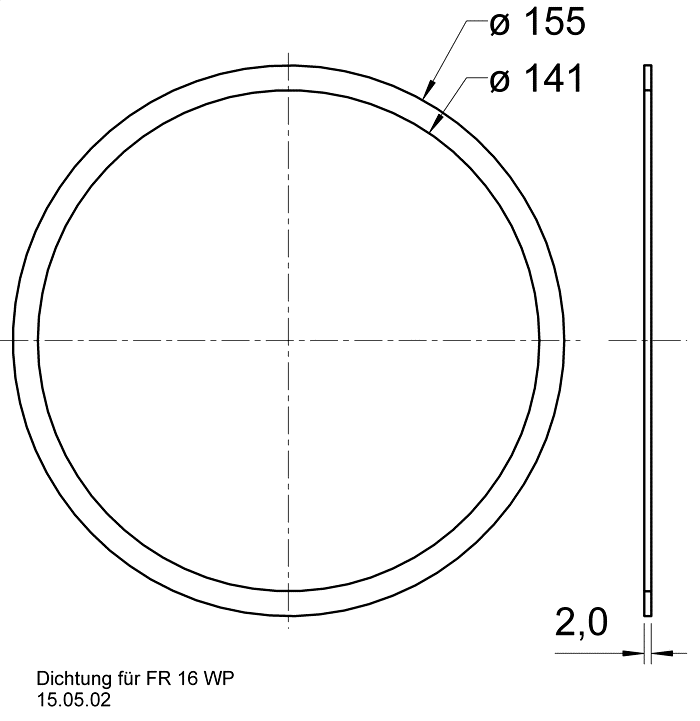

Dimensions:

Installation Notes:

• Mount the gasket on a clean, flat and smooth surface so it can seal evenly all the way around.
• Tighten the fixings evenly so the gasket is compressed uniformly. Do not over-tighten.
• The gasket seals the mounting surface only, so also make sure the rear of the speaker and the cable entry are protected from water.

Using With Other Speakers and Applications:

This gasket is designed for the FR 16 WP, but other uses may be possible. Please check that the dimensions suit your installation before ordering. The gasket seals the mounting surface only and does not make a non-waterproof speaker weatherproof. If in any doubt, please check with us.
