FR 13 WP White - 4 Ohm

Thumbnail Filmstrip of FR 13 WP White - 4 Ohm Images

    Purchase FR 13 WP White - 4 Ohm

    SKU: V-2113-FR13WP FR 13 WP White - 4 Ohm

    $52.00 each
    Brand: Visaton
    Quantity in Basket:  None

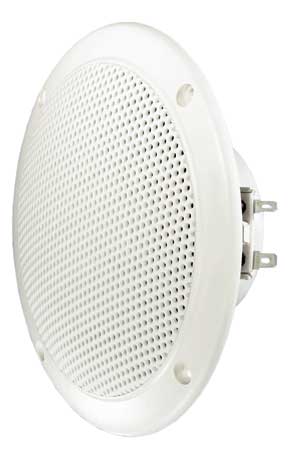

    Visaton Speaker Driver - FR 13 WP - 4 Ohm Saltwater Resistant - White
    Art. No. 2113

    Characteristics and Sound Properties
    Saltwater resistant 13 cm (5") full-range driver with moulded plastic cone, plastic basket and grille. Absolutely corrosion-resistant and waterproof due to encased magnet and silicon-coated leads. Clear-cut high-range output. White colour.

    Typical applications:-
    - Outdoor PA systems
    - Loudspeaker for solariums and damp locations
    - Boats, ships and open vehicles

    Attributes:-
    - Suitable for outdoor applications
    - Seawater proof
    - Functionally at low temperature according to EN 60068-2-1 (-40 °C; 96 h)
    - Up to the standards of the Germanischer Lloyd (requirements for electrical equipment/low temperature)
    - Plastic: ASA (UL 94:HB; UV-/weather-proof)
    - Ball-resistant



    Technical Specifications

    Rated power 40 W
    Maximum power 60 W
    Nominal impedance Z 4 Ohm
    Frequency response 70–16000 Hz
    Mean sound pressure level 85 dB (1W/1m)
    Opening angle (-6 dB) 69°/4000 Hz
    Excursion limit ± 2.5 mm
    Resonance frequency fs 100 Hz
    Magnetic induction 0.85 T
    Magnetic flux 210 uWb
    Height of front pole-plate 4 mm
    Voice coil diameter 20 mm
    Height of winding 5 mm
    Cutout diameter 112 mm
    Net weight 0.29 kg
    DC resistance Rdc 3.8 Ohm
    Mechanical Q factor Qms 2.49
    Electrical Q factor Qes 2.19
    Total Q factor Qts 1.17
    Equivalent volume Vas 4.4 litres
    Effective piston area Sd 78 cm2
    Dynamically moved mass Mms 4.8 grams
    Force factor Bxl 2.3 Tm
    Inductance of the voice coil L 0.4 mH
    Protective System IP 65 / IP 67 *)
    Connections 4.8 x 0.8 mm (+)
    2.8 x 0.8 mm (−)
    Colour White
    Temperature range -40 ... 80 °C

    *) IP protection class for front side when built into a sealed enclosure

    Temperature Range IP Rating IP Rating
