SL 87 XA - 4 Ohm

Thumbnail Filmstrip of SL 87 XA - 4 Ohm Images

    Purchase SL 87 XA - 4 Ohm

    SKU: V-2092-SL87XA SL 87 XA - 4 Ohm

    $24.00 each
    Brand: Visaton
    Quantity in Basket:  None







    Visaton Speaker Driver - SL 87 XA - 4 Ohm Waterproof Full Range Speaker
    Art. No. 2092

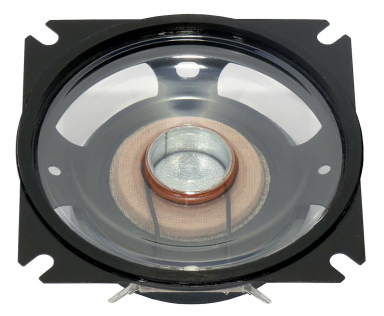

    Visaton SL87XA - 4 Ohm Full Range Waterproof Speaker.

    Visaton SL87XA - 4 Ohm Full Range Waterproof Speaker - rear view.
    Visaton SL87XA - 4 Ohm Full Range Waterproof Speaker.



    Characteristics and Sound Properties
    Waterproof 8 cm (3.3") fullrange speaker with a transparent plastic cone and rubber sealing ring. Very high mean sound pressure level. Optimised for voice and signal output.

    Typical applications:-
    - Control speaker for electronic devices
    - Outdoor sound reinforcement systems
    - Alarm systems

    Attributes:-
    - UV-resistant
    - weather-resistant



    Technical Specifications

    Rated power 20 W
    Maximum power 30 W
    Nominal impedance Z 4 Ohm
    Frequency response
    350–5800 Hz
    Mean sound pressure level 94 dB (1W/1m)
    Opening angle (-6 dB) 142°/4000 Hz
    Resonance frequency fs 550 Hz
    Height of front pole-plate 3 mm
    Voice coil diameter 20 mm
    Height of winding 4 mm
    Cutout diameter 80 mm
    Net weight 0.38 kg
    Connections 2.8 x 0.5 mm (+)
    2.8 x 0.5 mm (−)
    Protective system IP 65 *)
    IP x8 **)
    Temperature range −40 ... +70 °C

    *) IP protection class for front side when built into a sealed enclosure.
    **) 1 m height of water, 16 h

    Temperature Range IP 65 Protective System





    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)



    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph



    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)
